EC510-ADS/EC511-ADS
Home Industrial Computers Embedded Fanless PC EC510-ADS/EC511-ADS
  • 12th Generation Intel® Core™ with Intel® Q670E
  • Supports DDR4 SODIMM up to 64GB
  • Three independent displays: 1 VGA + 2 HDMI/DP++ (auto detection)
  • Support up to 4 PoE (EC51x-ADS62GA6E-Q)
  • Support 5G communication
  • Multiple Expansion: 3 M.2 and 1 PCIe or 1 PCI
  • Operating Temperature: -20 to 60°C

Status : Preliminary QUOTE NOW

Wide-temp: -20~60°C
Wide Voltage: 9~36V DC-in
Multiple Expansion
DDR4
Triple Independent Display
5G
PoE LAN
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
BIS Certificaiton
EC510-ADS/EC511-ADS Embedded Solution Powered by: DFI Proprietary Motherboard

EC510-ADS/EC511-ADS Related Tags

#12th Gen Intel® Core™ Processor#9~36V DC-in#BIS Certification#M.2#Intel#5G#PoE#Fanless Design#1G Ethernet#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
EC510-ADS/EC511-ADS|Intel®|Industrial Computers|DFI
EC510-ADS/EC511-ADS|Intel®|Industrial Computers|DFI
EC510-ADS/EC511-ADS|Intel®|Industrial Computers|DFI
System
Processor
12th Generation Intel® CoreTM Processors, LGA 1700
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8GHz); 35W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6GHz); 35W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3GHz); 35W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, to 4GHz); 35W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3GHz); 35W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4GHz); 35W
Chipset
Intel® Q670E Chipset
Memory
Two 260-pin DDR4 2400/2666MHz SODIMM up to 64GB
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
1 x VGA
2 x HDMI/DP++ (auto detection)

VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
1 VGA + 2 HDMI/DP++ (auto detection)
Storage
Interface
2 x 2.5" SATA 3.0 drive bay (Support RAID 0/1)
Expansion
Interface
· EC510-ADS Series
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe)
1 x M.2 3042/3052 B key (PCIe/USB 3.0)
1 x PCI slot

· EC511-ADS Series
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe)
1 x M.2 3042/3052 B key (PCIe/USB 3.0)
1 x PCIe x16 slot
Audio
Audio Codec
ALC888
Ethernet
Controller
2 x Intel® i225-IT
LED
Indicators
1 x Status LED
1 x HDD LED

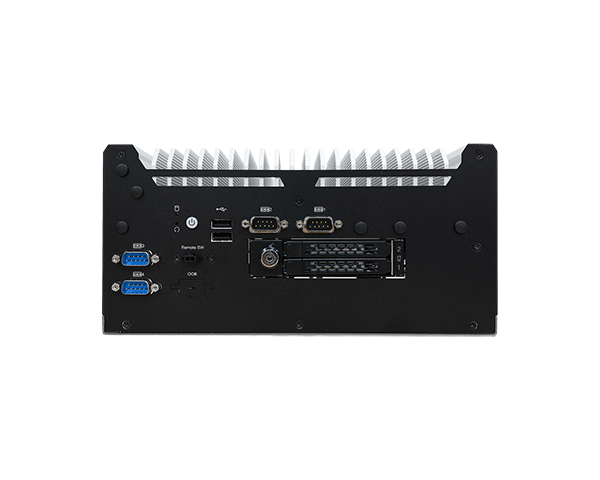

Front I/O
Serial
4 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
Buttons
1 x Power button
1 x Reset button
Antenna
6 x Antenna hole (WiFi)

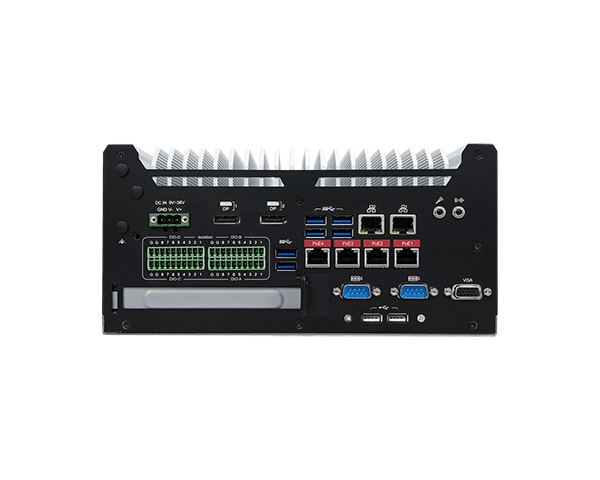

Rear I/O
Serial
[EC51x-ADS62GA6E-Q] 2 x RS232
[EC51x-ADS62GA6-Q] 2 x RS232
[EC51x-ADS6881-Q] 2 x RS232

[EC51x-ADSAGE4E-Q] 4 x RS232/422/485 (w/ isolation 2KV)
[EC51x-ADSAGE4E-Q] 2 x RS232
[EC51x-ADSAGE4-Q] 4 x RS232/422/485 (w/ isolation 2KV)
[EC51x-ADSAGE4-Q] 2 x RS232
USB
[EC51x-ADS62GA6E-Q] 6 x USB 3.1 (Gen2)
[EC51x-ADS62GA6E-Q] 2 x USB 2.0

[EC51x-ADS62GA6-Q] 6 x USB 3.1 (Gen2)
[EC51x-ADS62GA6-Q] 2 x USB 2.0

[EC51x-ADS6881-Q] 4 x USB 3.1 (Gen2)
[EC51x-ADS6881-Q] 2 x USB 2.0

[EC51x-ADSAGE4E-Q] 10 x USB 3.1 (Gen2)
[EC51x-ADSAGE4E-Q] 2 x USB 2.0

[EC51x-ADSAGE4-Q] 10 x USB 3.1 (Gen2)
[EC51x-ADSAGE4-Q] 2 x USB 2.0
DIO
[EC51x-ADS62GA6E-Q] 32 bits DIO (w/ isolation 2KV)

[EC51x-ADS62GA6-Q] 32 bits DIO (w/ isolation 2KV)

[EC51x-ADS6881-Q] 8 bits DIO

[EC51x-ADSAGE4E-Q] 16 bits DIO (w/ isolation 2KV)

[EC51x-ADSAGE4-Q] 16 bits DIO (w/ isolation 2KV)
Display
1 x VGA
2 x HDMI/DP++ (auto detection)
Audio
1 x Line-out
1 x Mic-in
Ethernet / PoE
[EC51x-ADS62GA6E-Q] 2 x GbE (RJ-45)
[EC51x-ADS62GA6E-Q] 4 x PoE (RJ-45)

[EC51x-ADS62GA6-Q] 6 x GbE (RJ-45)

[EC51x-ADS6881-Q] 2 x GbE (RJ-45)

[EC51x-ADSAGE4E-Q] 2 x GbE (RJ-45)
[EC51x-ADSAGE4E-Q] 2 x PoE (RJ-45)

[EC51x-ADSAGE4-Q] 4 x GbE (RJ-45)
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Security
TPM
TPM 2.0
Power
Type
Wide range 9~36V
Connector
3-pole terminal block
2-pin power remote switch connector
OS Support
Microsoft
Windows 10 IoT Enterprise 64 Bit
Linux
Linux (available upon request)
Environment
Operating Temperature
-20 to 60°C (2.5" SSD or M.2 SSD)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
Dimensions (W x H x D)
255.3 x 124.6 x 224mm
Weight
5.1 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC 60068-2-64
Certifications
CE, FCC Class A, UKCA, RoHS, BIS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)

Get ready to experience the raw power of the 12th Generation Intel® Core™ Processors

DFI EC510-ADS and EC511-ADS are equipped with 12th Gen Intel® Core™ processors, ensuring robust performance. The full selection of the CPU product line is available allowing the vendor to select the best choice for your performance requirements. Intel’s Alder Lake architecture has a combination of high-performance P-cores and power-efficient cores E-cores that optimize both single and multi-threaded workloads. This affords enhanced processing power for demanding applications while also providing improved energy efficiency for extended operation.

Max Out Your System's Memory with Blazing DDR4 Support Up to a Whopping 64GB

System memory capacity of up to 64GB DDR4 memory running at 3200MHz in the compact SO-DIMM form factor supports even the most demanding workloads with ample memory for multitasking, data-intensive applications, and virtualization.

Unlock the Power of 5G Connectivity

Both EC510-ADS and EC511-ADS has high-speed 5G wireless connectivity support via an M.2 B Key 3042/3052 which facilitates real-time data transfer, remote management, and other connectivity requirements.

Experience Three Display Options, Each Independent and Powerful

Different applications may demand adaptable display solutions. The EC510-ADS and EC511-ADS are crafted to cater to this need, featuring one VGA display connector and two HDMI/DP++ ports that support both HDMI and DisplayPort connectivity. It enables the setup of up to three independent displays, offering versatile configurations suitable for various needs like critical process monitoring, data visualization, or essential information display.

Expansive Input/Output Connectivity Solutions

The EC510-ADS and EC511-ADS feature a spacious 1 PCIe x16 slot, enhancing connectivity options. Additionally, both the EC510-ADS and EC511-ADS offer a broad selection of I/O connectivity ports to cater to various needs. These include 2 Gigabit Ethernet ports, 6 COM serial ports, 4 USB 3.1 ports, and 2 USB 2.0 ports. This versatility allows for flexible configurations to accommodate a wide range of peripherals and devices, ensuring seamless connectivity and compatibility for networking, serial communication, and USB devices across different applications.

4 PoE is ready to deploy its powerful connectivity features

Thanks to EC510-ADS and EC511-ADS models’ 4 PoE (Power over Ethernet) ports, offering seamless connectivity and power delivery for a variety of networked devices. This feature streamlines installation processes and enhances overall system efficiency, making them ideal solutions for diverse networking applications requiring reliable power delivery over Ethernet connections.

Versatile Expansion Choices with 3 M.2 Slots

Both EC510-ADS and EC511-ADS have three versatile M.2 slots, urging you to defy the constraints of its compact design. Unleash your innovation and seize complete command over your system's performance and customization potential through the raw power of these M.2 slots.

Durable Environmental Design with Wide Temperature Range

Both EC510-ADS and EC511-ADS offer an extensive operating temperature range of -20°C to 60°C and boasts a 15-year CPU life cycle support as per Intel’s IOTG Roadmap. Its fanless design ensures silent operation, reducing maintenance needs and enhancing reliability. Certified with CE, FCC Class A, UKCA, and RoHS, it complies with international standards. It comes with default Microsoft Windows 10 IoT Enterprise 64-Bit support, compatible with Windows-based industrial applications, and Linux OS support is available on request, catering to diverse deployment needs.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
