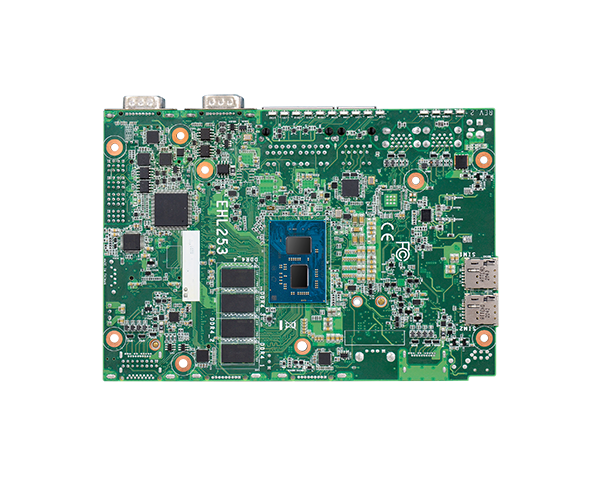

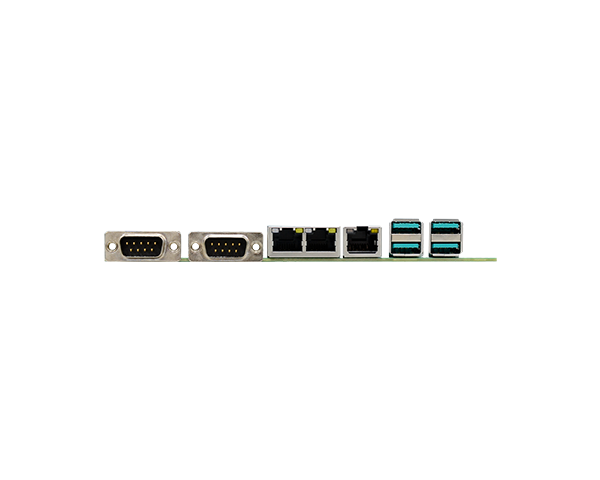

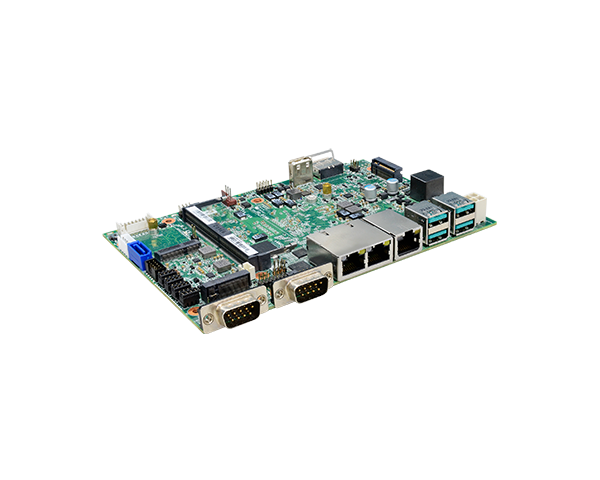

EHL253｜Intel®｜Industrial Motherboards｜DFI

EHL253
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 4" SBC EHL253
  • Intel® Atom® Processor X Series
  • On board DDR4 + 1 DDR4 3200 SODIMM
  • Dual Independent Displays: 1 VGA + 1 DP++
  • Supports 4K/2K resolution
  • Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
  • Rich I/O: 2 or 3 GbE, 1 2.5 GbE, 2 or 4 USB 3.1, 2 USB 2.0, 1 USB 2.0 (Vertical), 2 COM + 2 COM (Internal), 1 SATA 3.0

Status : Preliminary QUOTE NOW

Fanless Design
4K2K Display
Multiple Expansion
DDR4
Dual Display
Rich I/O
2.5G Ethernet
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

EHL253 Related Tags

#9~36V DC-in#M.2#Intel#Fanless Design#4K2K Display#1G Ethernet#VGA#DP#DDR4#CE Certification#FCC Certification#Intel® Atom® Processors Elkhart Lake X Series #2.5G Ethernet
EHL253｜Intel®｜Industrial Motherboards｜DFI
EHL253｜Intel®｜Industrial Motherboards｜DFI
EHL253｜Intel®｜Industrial Motherboards｜DFI
EHL253｜Intel®｜Industrial Motherboards｜DFI
EHL253｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel Atom Elkhart Lake
· Industrial
Intel® Atom® x6425RE 4 cores, 1.9 GHz, TDP 12W
· Embedded
Intel® Atom® x6211E 2 cores, 1.3 to 3.0 GHz, TDP 6.5W
Intel® Atom® x6413E 4 cores, 1.5 to 3.0 GHz, TDP 9W
Intel® Atom® x6425E 4 cores, 2.0 to 3.0 GHz, TDP 12W
· PC Client
Intel® Celeron® J6412 4 cores, 2.0 to 2.6 GHz, TDP 10W
Intel® Celeron® J6413 4 cores, 1.8 to 3.0 GHz, TDP 10W
Memory
4GB/8GB DDR4 Memory onboard
One 260 pin DDR4 SODIMM up to 3200MHz
Total Memory up to 32GB
(in-band ECC support in embedded/industrial SKU)
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Graphics
Controller
Intel® UHD Graphics for 10th Gen Intel® Processors
Feature
OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
Display
1 x VGA (Support via VGA cable)
1 x DP++
Dual Displays
1 VGA + 1 DP++
Storage
Internal
SATA III
eMMC
16GB/32GB (Available upon request)
Expansion
Interface
1 x M.2 2280 (SATA)
1 x M.2 2230 (USB/PCIe)
1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 or 3 x Intel® Ethernet Controller I210/I211 GbE LAN
1 x Intel® Ethernet 2.5GbE LAN
Front I/O
Ethernet
2 or 3 x GbE (RJ-45) (configuration options)
1 x 2.5GbE TSN RJ45
Serial
2 x RS232/422/485
USB
2 or 4 x USB 3.1 (configuration options)
DIO
8-bit DIO (jumper switch to COM)
Rear I/O
Display
1 x DP++
Internal I/O
Serial
2 x RS232
USB
2 x USB 2.0 (Pin header)
1 x USB 2.0 (Vertical)
Display
1 x VGA
Audio
1 x Audio (Line Out and Mic in)
SATA
1 x SATA 3.0
1 x 5V SATA Power (support SATA HDD LED via front panel)
SMBus
1 x SMBus
Front Panel
1 x front panel (power button/reset button, power LED, HDD act LED)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (Available Upon Request)
Power
Type
Wide Range 9~36VDC
Connector
DC Jack (or vertical type 4pin connector)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise LTSC 2019 RS5
Linux
Linux
Environment
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Operating Temperature
0 to 80°C (PC Client SKU)
-40 to 80°C (Embedded SKU)
Storage Temperature
-40 to 85°C
Mechanism
Dimensions
4" SBC Form Factor
165mm (6.5") x 115mm (4.53")
Standards and Certifications
Certifications
CE, FCC Class B (TBD in later stage)
Packing List
Packing List
• 1 EHL253 board
• 1 COM port cable, A81-015019-004G
• 1 SATA data with 4pin power cable, A81-002118-054G
• 1 Heat sink
• 1 VGA cable, A81-012004-001G
• 1 DC cable, A81-004241-054G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EHL253     Part Number :
     770-EHL2531-000G     Description :
    Intel® Celeron® J6412, 1 DDR4 SODIMM, DP++ / *VGA, 4 USB 3.1, 2 USB 2.0, 1 2.5GbE, 2 GbE, 2 COM, 0 to 80°C
  • Model Name :
    EHL253     Part Number :
     770-EHL2531-400G     Description :
    Intel® Atom® x6425RE, 1 DDR4 SODIMM, DP++ / *VGA, 2 USB 3.1, 2 USB 2.0, 1 2.5GbE, 3 GbE, 2 COM, In-Band ECC Support (Default disabled), -40 to 80°C, Support TCC

* *VGA: VGA display support via cable
