RPP968|Intel®|System-On-Modules|DFI

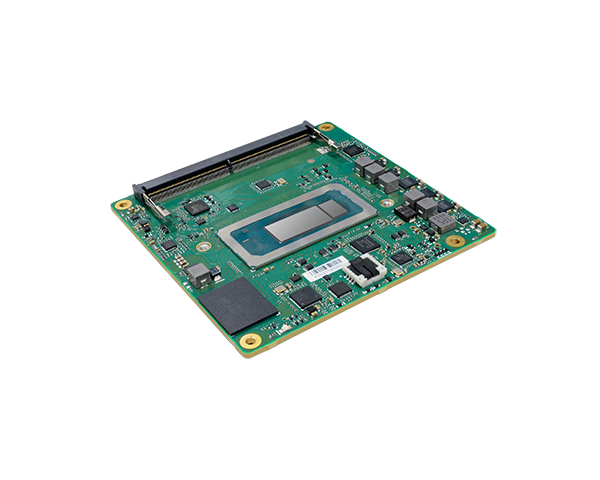

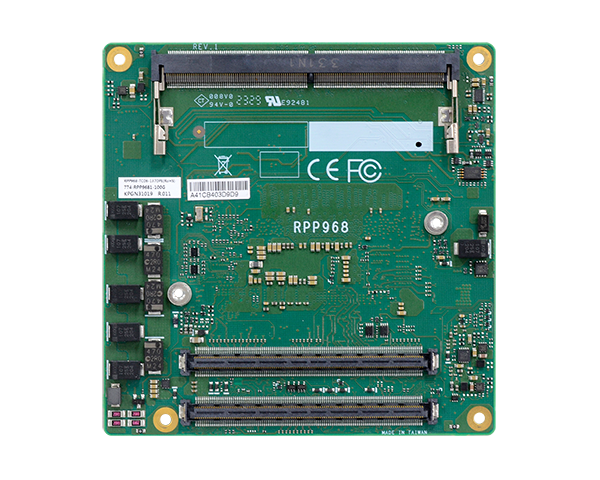

RPP968
Home System-On-Modules COM Express Compact RPP968
  • Intel® Core® Processor Raptor Lake Series
  • DDR5 4800MHz SODIMM up to 64GB
  • 1 LVDS/eDP, 1 VGA, 3 DDI (HDMI/DP++)
  • Multiple expansions: 2 PCIe x4 (Gen4 PCH), 5 PCIe x1
  • Rich I/O: 1 Intel GbE, 4 USB 3.2, 8 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 38 (Based on Intel IOTG Roadmap)

Status : Sample Available QUOTE NOW

4K2K Display
Multiple Expansion
DDR5
Rich I/O
Multiple Displays
2.5G Ethernet
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPP968 Related Tags

#DDR5#13th Gen Intel® Core™ Processor#LVDS#eDP#SMBus#I2C#Intel® Core® Processor Raptor Lake Series#Slim Bootloader(Upon Request)#IoT#Intel#4K2K Display#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RPP968
RPP968
RPP968
System
Processor
Intel® Core™ i7-13800HE (6 P-Cores x 2.5 GHz, 8 E-Cores x 1.8 GHz, 24 MB cache, 45W)
Intel® Core™ i5-13600HE (4 P-Cores x 2.7 GHz, 8 E-Cores x 1.9 GHz, 18 MB cache, 45W)
Intel® Core™ i3-13300HE (4 P-Cores x 2.1 GHz, 4 E-Cores x 1.5 GHz, 12 MB cache, 45W)
Intel® Core™ i7-1370PE (6 P-Cores x 1.9 GHz, 8 E-Cores x 1.2 GHz, 24 MB cache, 28W)
Intel® Core™ i5-1350PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)
Intel® Core™ i5-1340PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)
Intel® Core™ i3-1320PE (4 P-Cores x 1.7 GHz, 4 E-Cores x 1.2 GHz, 12 MB cache, 28W)
Intel® Core™ i7-1365UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1345UE (2 P-Cores x 1.4 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1335UE (2 P-Cores x 1.2 GHz, 8 E-Cores x 0.9 GHz, 12 MB cache, 15W)
Intel® Core™ i3-1315UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W)
Intel® Pentium® U300E (1 P-Core x 1.1 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W)
Memory
Two 262-Pin SO-DIMM up to 64GB, Dual Channel DDR5 4800MHz
BIOS
AMI BIOS
Graphics
Controller
Intel® Iris® Xe graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
Display
1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DDI

VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI
DDI + eDP + DDI (available upon request)
Expansion
Interface
2 x PCIe x4 (Gen4 PCH)
5 x PCIex1 (Gen3) (8 x PCIex1 available upon request)
1 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request)
I/O
USB
4 x USB 3.2 Gen.2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request)
SSD
1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
8.5~20V, 5VSB, VCC_RTC (ATX mode)
8.5~12V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Compact
95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R3.1, Type 6
Standards and Certifications
Certifications
CE, FCC, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPP968-BC00-13800HE
    Part Number :
    770-RPP9681-000G
    Description :
    Intel® Core™ I7-13800HE (45W), LVDS, Cooler, Operating Temp.: 0 to 60°C
  • Model Name :
    RPP968-TC06-1370PE
    Part Number :
    770-RPP9681-100G
    Description :
    Intel® Core™ I7-1370PE (28W), LVDS, 64GB NVMe SSD, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C
  • Model Name :
    RPP968-TC00-1365UE
    Part Number :
    770-RPP9681-200G
    Description :
    Intel® Core™ I7-1365UE (15W), LVDS, Heat sink, Operating Temp.: -40 to 85°C
  • Model Name :
    RPP968-BC00-13800HRE
    Part Number :
    770-RPP9681-300G
    Description :
    Intel® Core™ I7-13800HRE (45W), eDP, Cooler, Operating Temp.: 0 to 60°C
  • Model Name :
    RPP968-TC00-1315UE
    Part Number :
    770-RPP9681-400G
    Description :
    Intel® Core™ I3-1315UE (15W), LVDS, Heat sink, Operating Temp.: -40 to 85°C
  • Model Name :
    RPP968-TC00-U300E
    Part Number :
    770-RPP9681-500G
    Description :
    Intel® Pentium® U300E (15W), LVDS, Heat sink, Operating Temp.: -40 to 85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM335 carrier board kit
    Part Number :
    770-CM3351-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    A71-808365-000G
    Description :
