RAP310-B650｜AMD®｜Industrial Motherboards｜DFI

RAP310-B650
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards microATX RAP310-B650
  • AMD® Ryzen™ 7000 Series with AMD B650 chipset
  • 4 DDR5 UDIMM up to 128GB
  • Triple displays: 1 VGA, 1 DP++, 1 HDMI
  • Supports 4K resolution
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 1 M.2 M key, 4 SATA 3.0
  • Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
2.5G Ethernet
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RAP310-B650 Related Tags

#DDR5#Windows 10#Edge AI Computing#AMD® Ryzen™ 7000 Series#Windows 11#AMD#4K2K Display#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet

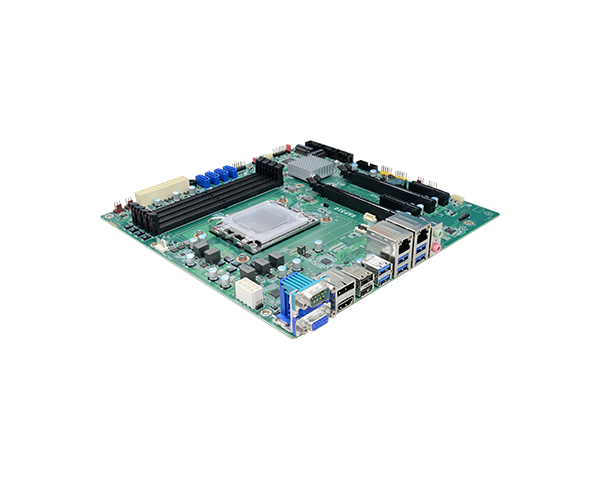

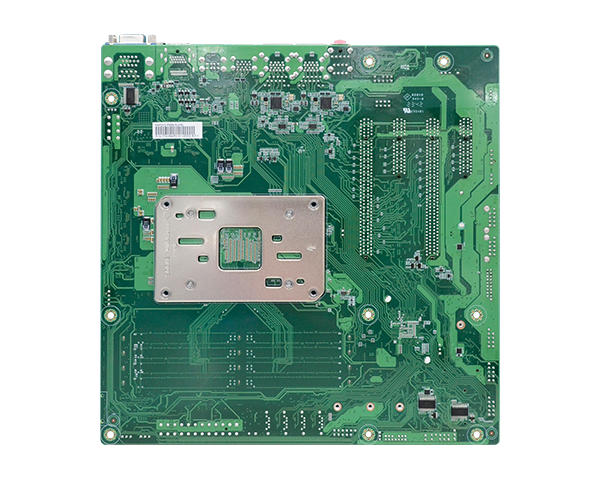

RAP310-B650
RAP310-B650
RAP310-B650
RAP310-B650

Related Products:

Select All - Clear
System
Processor
AMD Ryzen 9 PRO 7945
AMD Ryzen 7 PRO 7745
AMD Ryzen 5 PRO 7645
Chipset
AMD B650
Memory
Four 288-pin UDIMM up to 128GB (ECC/Non-ECC)
Dual Channel DDR5 5200 MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Navi2 Graphics
Feature
1WGP @2.2GHz max
Display
1 x VGA
1 x DP++
1 x HDMI 2.0
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
Triple Displays
1 VGA + 1 DP++ + 1 HDMI 2.0
Expansion
Interface
2 x PCIe x16 (Gen 4, x16 or x8+x8)
2 x PCIe x4 (Gen 4)
1 x M.2 2230 E key
1 x M.2 2242/2260/2280 M key
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I226V

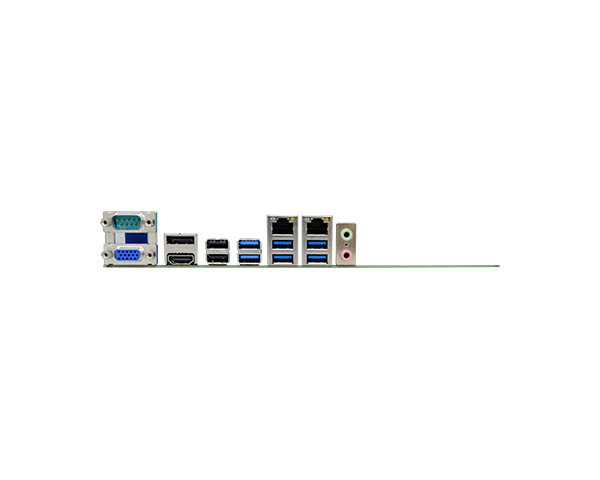

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
Serial
1 x RS232
USB
6 x USB 3.2 Gen 2
2 x USB 2.0
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
Internal I/O
Serial
1 x RS-232/422/485
2 x RS232
USB
2 x USB 3.2 Gen1
4 x USB 2.0 (colay vertical Type A)
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0
RAID 0/1/5/10
DIO
1 x 8-bit DIO
PS/2
1 x PS/2
SMBus/ I2C
1 x SMBus/ I2C
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Nuvoton TPM 2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 11 Enterprise
Windows 10
Linux
Ubuntu 22.04
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 RAP310-B650 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports), A81-015026-023G
1 Serial ATA data cable (Length: 500mm), 332-553001-005G
1 I/O shield TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RAP310-B650     Part Number :
     770-RAP3101-000G     Description :
    4 DDR5 UDIMM, 2 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, TPM 2.0 (dTPM), Power: 24-pin ATX/8-pin ATX 12V, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen2 port cable     Part Number :
     A81-001075-017G     Description :
    Length: 350mm
  • Item Name :
    COM port cable     Part Number :
     A81-015026-023G     Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable     Part Number :
     332-553001-005G
    A81-002128-017G     Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution     Part Number :
     A71-101159-001G     Description :
    Cooler
  • Item Name :
    DP to HDMI Dongle     Part Number :
     612-D2H13M-000G     Description :
  • Item Name :
    M.2-COM4     Part Number :
     770-M2COM1-000G     Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN     Part Number :
     770-M22LN1-000G     Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE     Part Number :
     770-M22PS1-000G     Description :
    M.2 PSE module

Advanced Industrial AI Computing Solution

The RAP310 industrial motherboard revolutionizes factory automation with its cutting-edge microATX design powered by the AMD® Ryzen™ 7000 Series processor and B650 chipset. Combining industrial-grade reliability with advanced AI processing capabilities, this robust platform delivers exceptional performance for smart manufacturing, machine vision, and medical image systems. Its superior multi-threading architecture efficiently handles multiple AI workloads simultaneously, from real-time quality inspection to automated production processes, making it the ideal solution for Industry 4.0.

High-Performance Industrial Memory System

Experience unprecedented data processing speeds with the industrial-grade DDR5 memory system, supporting up to 5200 MHz in dual-channel configuration. This advanced memory architecture is optimized for industrial AI applications and machine learning workloads, enabling rapid processing of manufacturing data and real-time AI analysis. The RAP310 industrial motherboard excels in handling intensive industrial computing tasks, from multiple HD camera feeds for medical image systems to complex AI algorithms for predictive maintenance and industrial automation systems.

Versatile Expansion for Industrial Applications

The RAP310 delivers extensive connectivity through its dual PCIe x16 slots, dual PCIe x4 slots, M.2 interfaces, and SATA 3.0 ports, enabling seamless integration of AI accelerators, high-speed storage, and automation modules. This comprehensive expansion suite ensures adaptability for current industrial needs while providing scalability for future smart manufacturing requirements.

Advanced Multi-Display Support for Industrial Vision

The RAP310 delivers comprehensive visual capabilities with triple independent display support (VGA, DP++, and HDMI), making it ideal for industrial monitoring and medical imaging applications. The multi-display functionality enables precise visual data processing for AI-powered inspection systems, quality control stations, and medical imaging workstations, ensuring accurate monitoring and analysis in demanding industrial and healthcare environments.
