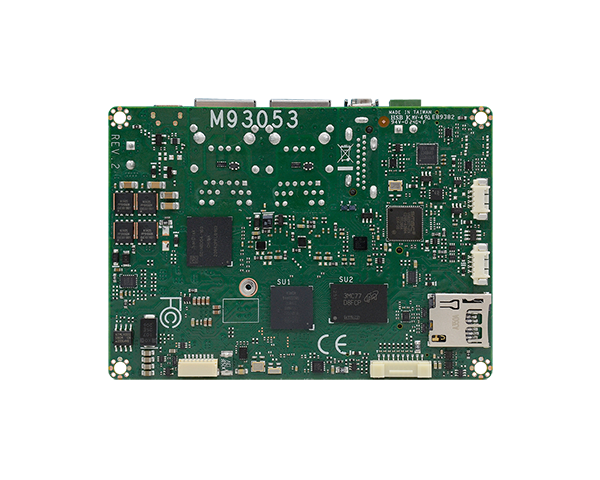

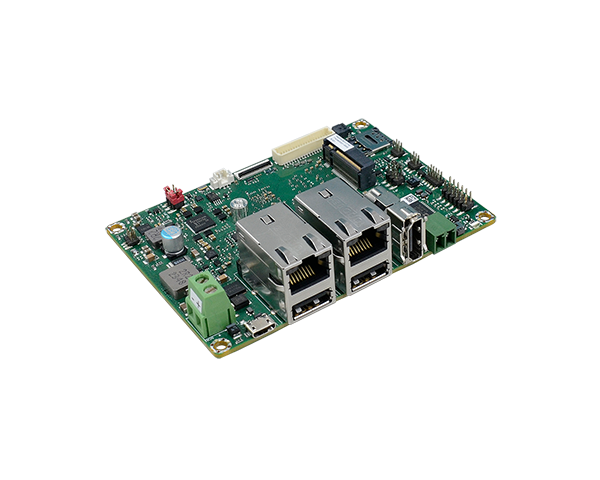

M93053｜NXP®｜Industrial Motherboards｜DFI

M93053
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 2.5" Pico-ITX M93053
  • NXP i.MX93 platform, target on entry level application
  • Wide Voltage support 9~36VDC
  • Two GbE Lan for automation application
  • CAN bus support
  • M.2 3042 support
  • 15-Year CPU Life Cycle Support Until Q2' 38 (Based on NXP Roadmap)

Status : Sample Available QUOTE NOW

Wide Voltage: 9~36V DC-in
Linux
15 Years CPU Life Cycle Support
eMMC
Dual Display
CAN Bus
M.2 Expansions
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

M93053 Related Tags

#9~36V DC-in#LVDS#NXP i.MX 93 Applications Processors#LPDDR4#CAN-Bus#ARM#Fanless Design#Compact Size#Linux#HDMI#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
M93053｜NXP®｜Industrial Motherboards｜DFI
M93053｜NXP®｜Industrial Motherboards｜DFI
M93053｜NXP®｜Industrial Motherboards｜DFI
M93053｜NXP®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
i.MX 93 applications processors
MIMX9352DVVXMAB, Dual core, 1.7GHz, NPU, 0°C~95°C
MIMX9352CVVXMAB, Dual core, 1.7GHz, NPU, -40°C~105°C
Memory
4GB LPDDR4 Memory Down
Graphics
Controller
2D Graphics: PXP Engine
Feature
Blending/Composition, Resize, Color Space Conversion
Display
1 x HDMI 1.4
1 x LVDS

HDMI: resolution up to 1920x1080 @60Hz
LVDS: resolution up to 1366x768 @60Hz
Dual Displays
LVDS + HDMI
Storage
eMMC
1 x eMMC 5.1 with default 16GB (up to 64GB)
Expansion
Interface
1 x M.2 B key 3042 (USB 2.0)
1 x Nano SIM slot
Ethernet
PHY
RTL8211
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS485 (2-wire)
USB
2 x USB 2.0
1 x Micro USB 2.0 (OTG)
Display
1 x HDMI
Download Mode Switch
1 x Download mode switch
Internal I/O
Serial
1 x RS232, 1x RS232/422/485 on 2x6 header
USB
2 x USB 2.0
Display
1 x LVDS LCD Panel connector (Default: 12V/Opt.: 5V)
1 x LCD Backlight Power (Default: 5V/Opt.: 3.3V)
DIO
1 x 8-bit DIO
SD
1 x uSD card
CANBus
1 x CAN bus 2.0b
I2C
1 x I2C / Touch
Other I/O
1 x SPI, 1 x Front Panel, 1 x UART debug
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36VDC
Connector
2-pole terminal block
Consumption
TBC
RTC Battery
CR2032 Coin Cell
OS Support
Linux
Linux Yocto 4.0 (Kernel 5.15.71)
Environment
Temperature
Operating: -5°C ~ 65°C (-30°C ~ 80°C, TBC)
Storage: -40°C ~ 85°C
Humidity
Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
MTBF
TBC
Mechanism
Dimensions
2.5" SBC Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm
Top Side: TBC
Bottom Side: TBC
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 M93053 board
1 Terminal block for RS485 (COM3), 342-361021-000G
1 Heat spreader (Height: 11mm), A71-808354-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    M93053-BCC-2152     Part Number :
     770-M930531-000G     Description :
    Dual core Processor, 2GB Memory, 16GB eMMC, 2 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 5 USB 2.0, 9~36VDC, Fanless Thermal, -5°C ~ 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    2 pole terminal to DC jack cable     Part Number :
     A81-004013-000G     Description :
  • Item Name :
    Power adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V, DC Jack
  • Item Name :
    USB 2.0 cable     Part Number :
     A81-001084-016G     Description :
    Length: 200mm
  • Item Name :
    COM port cable     Part Number :
     A81-015088-016G     Description :
    Length: 250mm, COM4/5 port
  • Item Name :
    Debug console with cable     Part Number :
     770-IMX8M1-000G     Description :
    Length: 500mm
