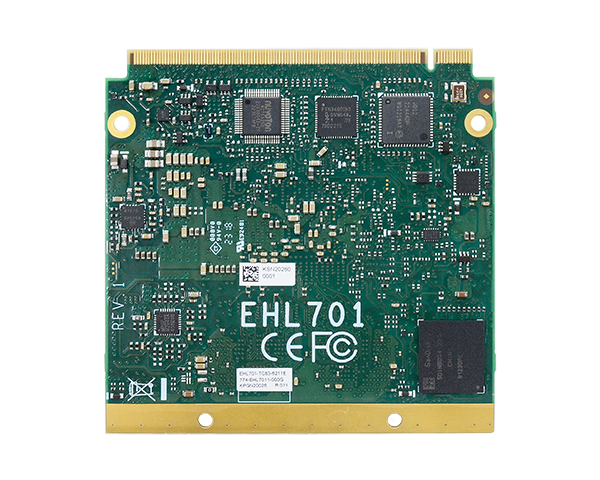

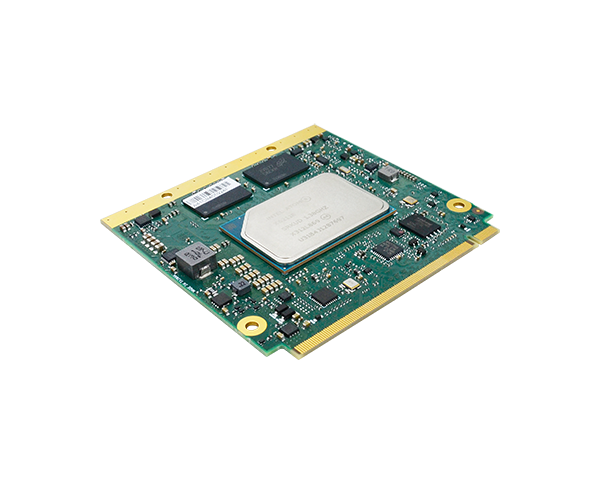

EHL701|Intel®|System-On-Modules|DFI

EHL701
Home System-On-Modules Qseven EHL701
  • 4GB/8GB/16GB LPDDR4 Dual Channel Memory Down
  • Dual Displays: 1 DDI* + 1 eDP/LVDS
  • DP++ resolution supports up to 4096x2160 @ 60Hz
  • Multiple expansions: 4 PCIe x1
  • Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
4K2K Display
1G Ethernet
Dual Display
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

EHL701 Related Tags

#LVDS#eDP#Slim Bootloader#IoT#Intel#4K2K Display#1G Ethernet#Windows#Linux#HDMI#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
EHL701
EHL701
EHL701
System
Processor
Intel Atom® x6000 Series Processors
Intel Pentium® N and J Series Processors
Intel Celeron® N and J Series Processors
Memory
4GB/8GB/16GB LPDDR4 Memory Down
Dual Channel LPDDR4 3200MHz
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics Gen9LP Series
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Display
1 x DDI (HDMI/DVI/DP++)
1 x eDP/LVDS
HDMI: resolution up to 3840x2160 @ 30Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz
Dual Displays
eDP/LVDS + DDI
Expansion
Interface
4 x PCIe x1 (Gen 2)
1 x SDIO
1 x LPC
1 x I2C
1 x SMBus
1 x SPI
1 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel I211
I/O
USB
1 x USB 3.1 + 8 x USB 2.0 / 2 x USB3.1 + 6 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
eMMC
Supports up to 128GB eMMC, NC as default
eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)
GPIO
1 x 4-bit GPIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM or fTPM (Optional)
Power
Type
5V, 5VSB, VCC_RTC
Consumption
Typical: x6212RE: 12V @ 0.98A (11.76W)
Max.: x6212RE:12V @ 1.45A (17.4W)
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux (Intel graphic driver available)
Environment
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
773,944 hrs @ 25°C; 335,063 hrs @ 45°C;
138,841 hrs @ 60°C; 29,888 hrs @ 85°C
Operating Temperature
0 to 60°C
-40 to 85°C
-5 to 65°C(opt.)
Storage Temperature
-40 to 85°C
Mechanism
Dimensions
Qseven form factor
70mm (2.76") x 70mm (2.76")
Compliance
Qseven specification revision 2.1
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
• EHL701 Board
--770-EHL7011-000G
--770-EHL7011-100G
• Cooler
--A71-112000-030G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EHL701-TC83-6211E
    Part Number :
    770-EHL7011-000G
    Description :
    Intel Atom® x6211E, 8GB LPDDR4 Memory Down, LVDS, 1 USB 3.1, 8 USB 2.0, 32GB eMMC, -40 to 85°C
  • Model Name :
    EHL701-TC80-6211E
    Part Number :
    770-EHL7011-100G
    Description :
    Intel Atom® x6211E, 8GB LPDDR4 Memory Down, LVDS, 1 USB 3.1, 8 USB 2.0, -40 to 85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat Spreader
    Part Number :
    A71-808348-010G
    Description :
  • Item Name :
    Qseven Carrier Board
    Part Number :
    770-Q7X154-000G
    Description :
