RPP171/RPP173|Intel®|Industrial Motherboards|DFI

RPP171/RPP173
Home Industrial Motherboards Mini-ITX RPP171/RPP173
  • 13th Gen Intel® Core Processors
  • 2 DDR5 SODIMM up to 64GB
  • Quad Displays: 2 DP/HDMI + 1 USB Type C + 1 M2A Display (eDP/LVDS/VGA/HDMI/DP)
  • Supports 4K resolution
  • Multiple Expansion: 1 PCIe x4, 1 M.2 M key, 1 M.2 B key, 1 M.2 E Key, 1 M.2 A Key
  • Rich I/O: Up to 3 Intel 2.5GbE, 4 USB 3.2 Gen2, 1 USB Type C and 4 USB 2.0 headers

Status : Sample Available QUOTE NOW

Wide-temp: -20~70°C
4K2K Display
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPP171/RPP173 Related Tags

#DDR5#13th Gen Intel® Core™ Processor#Windows 10#9~36V DC-in#Edge AI Computing#Windows 11#Intel#4K2K Display#HDMI#DP#Multiple Expansion#9V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet

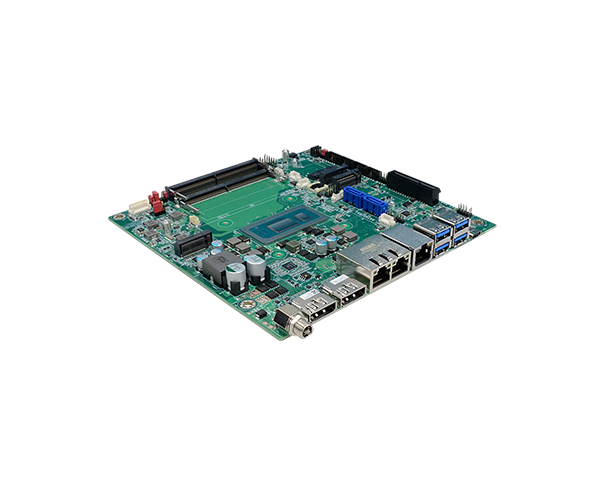

RPP171/RPP173
RPP171/RPP173
RPP171/RPP173
RPP171/RPP173
System
Processor
13th Generation Intel® Core™ Processors
Intel® Core™ i7-1365UE (10 Cores, 12M Cache, up to 4.9 GHz); 15~28W
Intel® Core™ i5-1345UE (10 Cores, 12M Cache, up to 4.6 GHz); 15~28W
Intel® Core™ i3-1315UE (6 Cores, 10M Cache, up to 4.5 GHz); 15~28W
Intel® Processor U300E (Formerly Pentium) (5 Cores, 24M Cache, up to 4.3 GHz); 15~28W
Memory
2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 5200MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Iris® Xe Graphics for i7/i5 CPU
Intel® UHD Graphics for i3 CPU
Feature
OpenGL 4.6, DirectX 12.1, OpenCL 3.0, OpenGL 4.6
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
2 x HDMI/DP Combo (Auto detect)
HDMI: resolution up to 4096x2160 @30Hz
DP: resolution up to 4096x2304 @60Hz
USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W): resolution up to 4096x2304 @60Hz (HBR2)
Quad Displays
HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)
Expansion
Interface
1 x PCIe Gen 4 x4
1 x M.2 2242/2280 M Key (PCIE Gen4x4, support NVMe )
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB3.2 Gen2, USB2.0, selected by BIOS)
1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
1 x M.2 3042 A Key support DFI M2A-display module (opt. MOQ required)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
LAN1/2: i226V/IT (10/100/1000/2.5G speeds)
LAN3(vPro): i226LM/IT (10/100/1000/2.5G speeds)

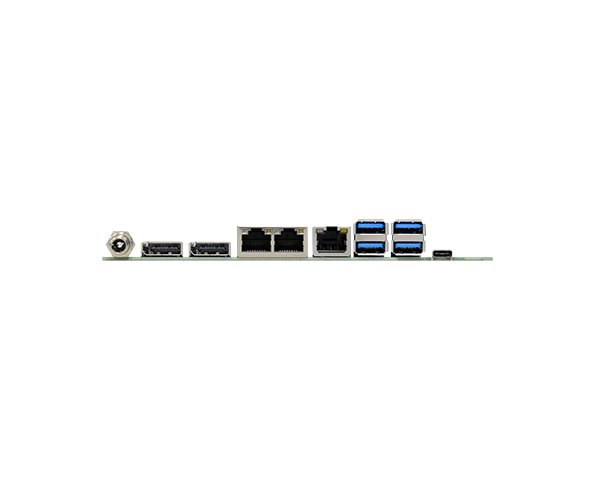

Rear I/O
Ethernet
Up to 3 x 2.5GHz RJ45 (LAN 3 colayout with internal vertical RJ45 by option)
USB
4 x USB 3.2 Gen2
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
Display
2 x DP/HDMI combo (Auto detect)
Internal I/O
Serial
2 x RS-232/422/485 (2.0mm pitch)
1 x RS-232 with power (2.0mm pitch)
1 x RS-232 (2.0mm pitch) colay with DIO-4bit (JP1)
USB
4 x USB 2.0 (2.0mm pitch)
Display
1 x M.2 A key, support M2A-Display (eDP/LVDS/VGA/HDMI/DP) by optional
Audio
1 x Line-out/Mic-in
SATA
2 x SATA 3.0
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
RPP171: Single 12VDC
RPP173: Wide Range 9~36VDC
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straightl Type Connector (4-pin) (available upon request)
Consumption
Idle: RPP171-IE-1370PRE 28W: 12V@ 0.81A (9.72W)
Max: RPP171-IE-1370PRE 28W: 12V@ 8.83A (105.96W)
Idle: RPP171-IE-1365UE 15W: 12V@ 0.75 (9W)
Max: RPP171-IE-1365UE 15W: 12V@ 8.83 (99.96W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows IoT Enterprise 10 LTSB
Windows 11
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C, -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
RPP173-IE-1365UE 442,970 hrs @ 25°C; 271,011 hrs @ 45°C; 160, 178,357 @ 60°; 133,264 hrs @ 70°C;
Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
· 1 RPP171/RPP173 motherboard
· 1 COM port cable with bracket (Length: 250mm, 1 x COM ports), A81-015115-018G
· 1 Serial ATA data with power cable (Length: 300mm), A81-002144-018G
· 4 M.2 screw/standoff

· 1 I/O Shield
- (2 LAN, Regular type), A49-RPP171-010G
- (3 LAN, Regular type), A49-RPP171-000G
- (2 LAN, Thin type), A49-RPP171-100G (By request)
- (3 LAN, Thin type), A49-RPP171-110G(By request)

· 1 Cooler/Heat sink
- (Wide/Normal Temp. -Cooler for 28W), A71-108160-010G (Default)
- (Wide Temp. Fanless HS for 15W), A71-008184-010G (By request)
- (Normal Temp. Fanless HS for 15W), A71-008184-000G (By request)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPP171-IE-1365UE
    Part Number :
    770-RPP1711-000G
    Description :
    RPP171-IE-1365UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
  • Model Name :
    RPP171-IE-1345UE
    Part Number :
    770-RPP1711-100G
    Description :
    RPP171-IE-1345UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
  • Model Name :
    RPP171-IB-1315UE
    Part Number :
    770-RPP1711-200G
    Description :
    RPP171-IE-1315UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
  • Model Name :
    RPP171-IB-U300E
    Part Number :
    770-RPP1711-300G
    Description :
    RPP171-IB-U300, 2 DDR5, Rear I/O( 2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
  • Model Name :
    RPP173-IE-1365UE
    Part Number :
    770-RPP1731-000G
    Description :
    RPP173-IE-1365UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
  • Model Name :
    RPP173-IE-1345UE
    Part Number :
    770-RPP1731-100G
    Description :
    RPP173-IE-1345UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
  • Model Name :
    RPP173-IB-1315UE
    Part Number :
    770-RPP1731-200G
    Description :
    RPP173-IE-1315UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
  • Model Name :
    RPP173-IB-U300E
    Part Number :
    770-RPP1731-300G
    Description :
    RPP173-IB-U300, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    SATA Cable
    Part Number :
    A81-002144-018G
    Description :
    SATA 7+15P to SATA 7P, Length: 300mm
  • Item Name :
    COM Port Cable
    Part Number :
    A81-015115-018G
    Description :
    COM Port D-Sub 9P Cable, Length: 250mm
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001083-016G
    Description :
    2-port USB2.0 w/bracket, Length: 300mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022036-016G
    Description :
    Line-out/Mic-in, Length: 110m
  • Item Name :
    Front Panel cable
    Part Number :
    A81-009615-016G
    Description :
    Length: 270mm
