RPS100|Intel®|Industrial Motherboards|DFI

RPS100
Home Industrial Motherboards Mini-ITX RPS100
  • 14/13/12th Gen Intel® Core Processors
  • 2 DDR5 SODIMM up to 64GB
  • Quad Displays:1 DP++ +1 HDM + +1 VGA+ M2A Display (eDP/LVDS/VGA/HDMI)
  • Supports 4K resolution
  • Multiple Expansion: 1 PCIe x16, 1 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
  • Rich I/O: 2 Intel 2.5GbE, 2 COM, up to 2 USB 3.2 Gen2, 4 USB 3.2 Gen1, 2 USB2.0 headers
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Sample Available QUOTE NOW

4K2K Display
PCIe x16
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPS100 Related Tags

#12th Gen Intel® Core™ Processor#13th Gen Intel® Core™ Processor#Windows 10#14th Gen Intel® Core™ Processor#IoT#Windows 11#Intel#4K2K Display#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RPS100|Intel®|Industrial Motherboards|DFI
RPS100|Intel®|Industrial Motherboards|DFI
RPS100|Intel®|Industrial Motherboards|DFI
RPS100|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
Intel® R680E/Q670E/H610E Chipset
Memory
2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz
ECC memory supported by R680 with i7 and i5
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x HDMI
1 x DP++
1 x VGA
HDMI: resolution up to 3840x2160 @ 24Hz
DP++: resolution up to 3840x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 60Hz
Quad Displays
HDMI + DP++ + VGA + M2A-Display (optional)
Expansion
Interface
1 x PCIe Gen 5 x16 (Bifircation 1 x16, 2 x8)
1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
1 x M.2 3060 A Key support DFI M2A-display module (opt. MOQ required)
[R680E] 1 x M.2 2280 M Key (PCIE Gen 3x4 or SATA3)
[Q670E] 1 x M.2 2280 M Key (PCIE Gen 3x4 or SATA3)
[H610E] 1 x M.2 2280 M Key (PCIE Gen 3x1 or SATA3)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
[R680E] 1 x Intel® I226LM (10/100/1000/2500Mbps)
[R680E] 1 x Intel® I226V (10/100/1000/2500Mbps)

[Q670E] 1 x Intel® I226LM (10/100/1000/2500Mbps)
[Q670E] 1 x Intel® I226V (10/100/1000/2500Mbps)

[H610E] 2 x Intel® I226V (10/100/1000/2500Mbps)

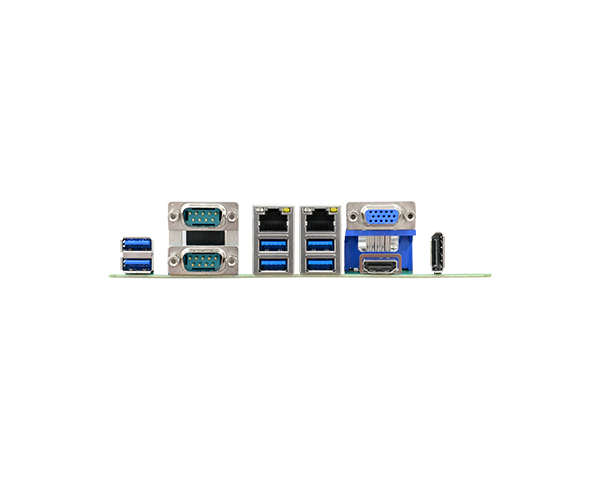

Rear I/O
Ethernet
2 x 2.5GHz RJ45
Serial
2 x RS-232/422/485
USB
[R680E] 2 x USB 3.2 Gen2
[R680E] 4 x USB 3.2 Gen1

[Q670E] 6 x USB 3.2 Gen1

[H610E] 4 x USB 3.2 Gen1
[H610E] 2 x USB 2.0
Display
1 x DP++
1 x HDMI
1 x VGA
Internal I/O
USB
2 x USB 2.0 (2.0mm pitch)
Display
1 x M.2 A key, support M2A-Display (eDP/LVDS/VGA/HDMI/DP) by optional
Audio
1 x Line-out/Mic-in
SATA
2 x SATA 3.0
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
ATX
Connector
4-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows IoT Enterprise 10 LTSB
Windows 11
Linux
Linux
Environment
Temperature
Operating: -5°C ~ 65°C
Storage: -40°C ~ 85°C
Humidity
Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 RPS100 motherboard
1 Serial ATA data cable (Length: 500mm)
1 I/O shield (P/N: TBD)
3 M.2 screw/standoff
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS100-R680EDB
    Part Number :
    770-RPS1001-000G
    Description :
    RPS100-R680EDB, 2 DDR5, Rear I/O( DP++/HDMI/VGA, I, 2 LAN, 6 USB 3.2 Gen2, 2 COM ), Internal I/O (M.2 M/E/A Key, 2 USB 2.0, w/TPM), ATX, -5°C ~ 65°C
  • Model Name :
    RPS100-Q670EDB
    Part Number :
    770-RPS1001-100G
    Description :
    RPS100-Q670EDB, 2 DDR5, Rear I/O( DP++/HDMI/VGA, I, 2 LAN, 6 USB 3.2 Gen2, 2 COM ), Internal I/O (M.2 M/E/A Key, 2 USB 2.0, w/TPM), ATX, -5°C ~ 65°C
  • Model Name :
    RPS100-H610EDB
    Part Number :
    770-RPS1001-200G
    Description :
    RPS100-H610EDB, 2 DDR5, Rear I/O( DP++/HDMI/VGA, I, 2 LAN, 2 USB 3.2 Gen2,2 USB3.2Gen1,2 COM ), Internal I/O (M.2 M/E/A Key, 4 USB 2.0, w/TPM), ATX, -5°C ~ 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Thermal solution
    Part Number :
    A71-101137-000G
    A71-101136-000G
    Description :
    For 65W, Height: 46mm
    For 35W, Height: 39mm
