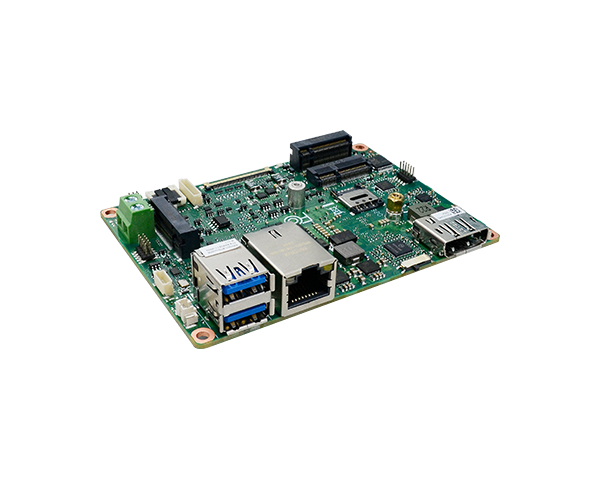

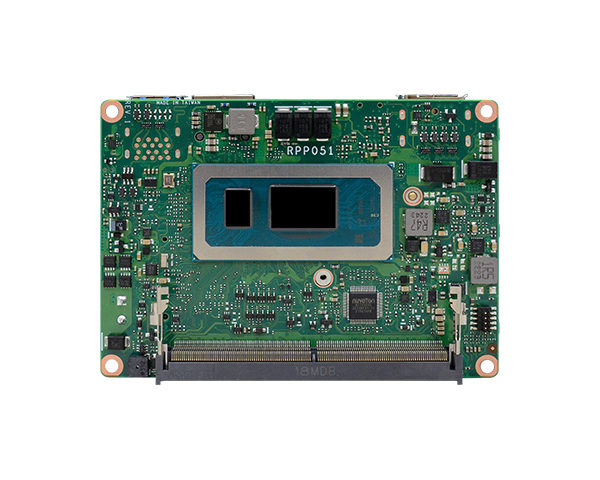

RPP051
Home Industrial Motherboards 2.5" Pico-ITX RPP051
  • Small form factor 2.5" Pico-ITX for space-limited applications
  • 13th Generation Intel® Core™ Processors
  • 1 DDR5 4800MHz SODIMM up to 32GB
  • Supports 4K/2K resolution
  • Dual Independent Displays: DP++ + eDP
  • Multiple Expansion: 1 M.2 E key, 2 M.2 B key
  • Rich I/O: 1 Intel 2.5G LAN, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0

Status : Launched QUOTE NOW

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

RPP051 Related Tags

#DDR5#13th Gen Intel® Core™ Processor#Windows 10#eDP#Windows 11#Intel#Fanless Design#4K2K Display#Windows#Linux#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#ULT#2.5G Ethernet#UKCA Certification
RPP051
RPP051
RPP051
RPP051
System
Processor
13th Generation Intel® Core™ Processors
Intel® Core™ i7-1365UE Processor, 10C/12T, 1.7GHz/4.9GHz, 15W
Intel® Core™ i5-1345UE Processor, 10C/12T, 1.4GHz/4.6GHz, 15W
Intel® Core™ i3-1315UE Processor, 6C/8T, 1.2GHz/4.5GHz, 15W
Intel® Processor U300E, 5C/6T, 1.1GHz/4.3 GHz, 15W
Memory
One 262-pin SODIMM up to 32GB
Single Channel DDR5 up to 4800MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics
Feature
DirectX12, Open GL 4.6, Vulkan 1.2
HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC
HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC
Display
1 x DP++
1 x eDP
DP++: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2160 @120Hz
Dual Displays
DP++ + eDP
Expansion
Interface
1 x M.2 E key 2230 (PCIe x1/USB 2.0)
1 x M.2 B key 3042/2242 for storage (PCIe x2/USB 2.0/SATA 3.0)
1 x M.2 B key 3042/2242 for 5G/LTE module (PCIe x1/USB 3.2 Gen1/SATA 3.0), with one Nano SIM slot
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I226IT/LM (only Core i7/i5 supports iAMT)

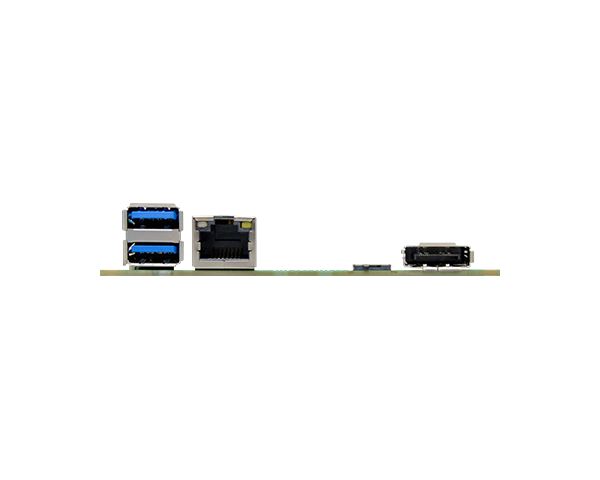

Rear I/O
Ethernet
1 x 2.5GbE (RJ-45)
USB
2 x USB 3.2 Gen 2
Display
1 x DP++
1 x eDP
Internal I/O
Serial
1 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
Display
1 x eDP Connector
Audio
1 x Line-out/Mic-in (1.27mm pitch)
DIO
1 x 8-bit DIO (1.00mm pitch)
SMBus
1 x SMBus (1.00mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM2.0
Power
Type
Single 12V +/-10% DC
Connector
2-pin Terminal Block
Consumption
Typical: 1365UE: 12V @ 0.7A (8.4Watt)
Max.: 1365UE: 12V @ 5.58A (66.96Watt)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise (64-bit)
Windows 11
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C, -30 to 80°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
1365UE: 621,170 hrs @ 25°C; 428,483 hrs @ 45°C ; 268,117 hrs @ 65°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6 mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
• 1 RPP051 board
• Heat sink for -5 to 65°C (Height: 37.8mm), A71-008153-040G
• Heat sink for -30 to 80°C (Height: 37.8mm), A71-008154-010G
*Note: Thermal solution will change to heat spreader as the product goes to mass production.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPP051-BTD-1365UE
    Part Number :
    770-RPP0511-000G
    Description :
    Intel® Core™ i7-1365UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C
  • Model Name :
    RPP051-BTD-1345UE
    Part Number :
    770-RPP0511-100G
    Description :
    Intel® Core™ i5-1345UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C
  • Model Name :
    RPP051-BTD-1315UE
    Part Number :
    770-RPP0511-200G
    Description :
    Intel® Core™ i3-1315UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C
  • Model Name :
    RPP051-BTD-U300E
    Part Number :
    770-RPP0511-300G
    Description :
    Intel® Processor U300E, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C
  • Model Name :
    RPP051-ETD-1365UE
    Part Number :
    770-RPP0511-400G
    Description :
    Intel® Core™ i7-1365UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -30 to 80°C
  • Model Name :
    RPP051-ETD-1345UE
    Part Number :
    770-RPP0511-500G
    Description :
    Intel® Core™ i5-1345UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -30 to 80°C
  • Model Name :
    RPP051-ETD-1315UE
    Part Number :
    770-RPP0511-600G
    Description :
    Intel® Core™ i3-1315UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -30 to 80°C
  • Model Name :
    RPP051-ETD-U300E
    Part Number :
    770-RPP0511-700G
    Description :
    Intel® Processor U300E, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -30 to 80°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V, DC Jack
  • Item Name :
    2 pole terminal to DC Jack cable
    Part Number :
    A81-004013-000G
    Description :
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001084-016G
    Description :
    Length: 200mm, 2 ports
  • Item Name :
    COM cable
    Part Number :
    A81-015050-016G
    Description :
    Length: 300mm, 1 port
  • Item Name :
    DIO cable
    Part Number :
    A81-009715-018G
    Description :
    Length: 200mm
  • Item Name :
    SMBus cable
    Part Number :
    A81-009716-018G
    Description :
    Length: 200mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022037-016G
    Description :
    Length: 160mm
  • Item Name :
    Front Panel cable
    Part Number :
    A81-020047-016G
    Description :
    Length: 200mm
  • Item Name :
    Heat spreader
    Part Number :
    A71-808358-000G
    Description :
    Height: 11mm

Ultra-Power Efficiency At the Edge - DFI’s RPP Series

As edge computing continues to be the backbone of digital transformation, it becomes increasingly crucial that we harness its capabilities in a sustainable and economical manner. DFI is unveiling the RL series based on 13th Gen Intel® Core™ processors (codenamed Raptor Lake-U) with 40% power-saving and is more durable than the previous generation. Featuring less power consumption with the same workload is aimed at energy-efficient applications at the edge to maximize IoT deployment in versatile applications e.g. AGV/AMR and IoT gateway.

Powered By 13th Gen Intel Processors (Codename: Raptor Lake-U)

DFI’s RPP series with 13th Gen Intel® Core™ i7/i5/i3 and U300E processors are built on the 10nm manufacturing process with improved performance by up to 40% than the previous generation for faster processing and detection in machine vision in factory automation. Furthermore, it is highly applied for power-effective use conditions in edge computing integrated with up to 10 cores and low-power TDP 15W.

Unleash Power and Speed - DDR5 Support for Enhanced AI Performance

Supports DDR5 4800MHz SODIMM, providing a memory capacity of up to 32GB. This high-speed DDR5 support ensures efficient and reliable processing for demanding AI applications, offering enhanced performance and responsiveness.

Wide-Temperature Endurance

Unlike other motherboards based on the same platform in the market that can only operate under ordinary temperature between 0 to 60°C, DFI’s RPP series is adopting breakthrough technology and fanless design that can be supported under the conditions of extended temperature up to -30 to 80°C to withstand harsh conditions and endure surge temperature changes in outdoor and temperature-sensitive industries like factory automation.

Exceptional Visual Performance

DFI’s completed product series with Intel 13th gen processors have the capability of delivering advanced 4K video experiences with resolution up to 4096 x 2304 and high-quality UHD streaming media for vision applications such as facial recognition, object detection, machine vision, and digital signage, etc.

High Security & Manageabilityh Security & Manageability

Cyber-attacks and equipment security are critical issues when it mentions data protection in IoT applications. DFI’s RPP051 is equipped with fTPM 2.0 to ensure confidential data security, like the collected database of face recognition with full protection of encryption and authentication.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
