VC500-CMS|Intel®| Industrial Computers |DFI

VC500-CMS
Home Application-Specific System In-vehicle System VC500-CMS
  • High Performance Fan-less In-Vehicle System
  • Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors
  • 4 x PoE or 2 x 10G SFP+ Ports
  • 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
  • 2KV Isolated 16bits DIO ports
  • Supports M.2 B key 3042/3052 5G-NR module with dual SIM
  • OOB management support upon request
  • 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)

Status : Sample Available QUOTE NOW

Wide-temp: -20~70°C
Fanless Design
Mini PCIe
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
FCC Certification
E-Mark R10 Certification

VC500-CMS Related Tags

#Windows 10#E-Mark R10 Certification#Out-Of-Band (OOB)#Windows 11#Intel#SIM Slot#PoE#CAN-Bus#Mini PCIe#Fanless Design#HDMI#DP#Multiple Expansion#DDR4#FCC Certification#In-Vehicle#10th Gen Intel® Comet Lake Processor
VC500-CMS|Intel®| Industrial Computers |DFI
VC500-CMS|Intel®| Industrial Computers |DFI
VC500-CMS|Intel®| Industrial Computers |DFI
VC500-CMS|Intel®| Industrial Computers |DFI
VC500-CMS|Intel®| Industrial Computers |DFI
VC500-CMS|Intel®| Industrial Computers |DFI
System
Processor
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
[Q470E/W480E] Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
[Q470E/W480E] Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W
[Q470E/W480E] Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
[Q470E/W480E] Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W
[Q470E/W480E] Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
[H420E] Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
[H420E] Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
[H420E] Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz)
Chipset
Intel® Q470E/W480E/H420E Chipset
Memory
Dual SO-DIMM slots (horizontal type) with anti-vibration bracket
Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB
ECC support for Xeon-1270TE processor only
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 630 (processor integrated)
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
Support DP++/DP 1.4
Resolution up to 4096x2304 @60Hz for DP
1 x HDMI with lock hole
2 x DP ports with lock hole
Triple Displays
1 HDMI + 2 DP++
Storage
External
2 x swappable 2.5" SATA drive bays with lock on rear panel
Supports RAID 0/1
Internal
1 x M.2 2280 M Key slot, supports 2242, 2260 & 2280 devices and NVME SSD
PCIe x4 & SATA signal, support boot up function
Audio
Audio Codec
Realtek ALC888
Interface
1 x Mic-in and 1 x Line-in
Ethernet
Controller
1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only)
1 x Intel® i210IT
LED
Indicators
1 x Storage Activity (Red)
1 x Power Status (Yellow)
2 x Programmable general purpose (Green, Blue)
Front I/O
Ethernet
2 x RJ45 GbE ports
Serial
1 x DB-9 RS232 ports (COM 5)
USB
4 x USB 3.1 Gen2 (2 x USB 3.1 Gen2 only for H420E PCH)
Audio
1 x Line-out, 1 x Mic-in and 1 x Line-in with 3.5mm audio jacks
DIO
[Q470E/W480E] 2 x Isolated DIO port by 2 x DB-15 female connectors
[Q470E/W480E] Supports 8bit DI & 8 bit DO with 2KV isolation
Antenna
2 x antenna holes
DC in
3 pin terminal block connector
OOB
Optional RJ45 port for OOB management
PoE/ 10G

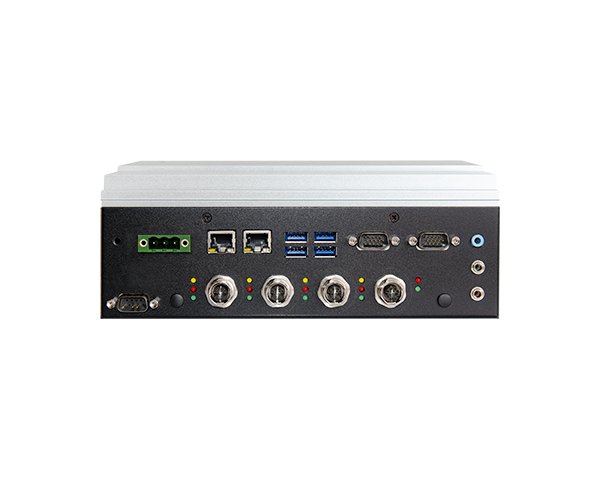

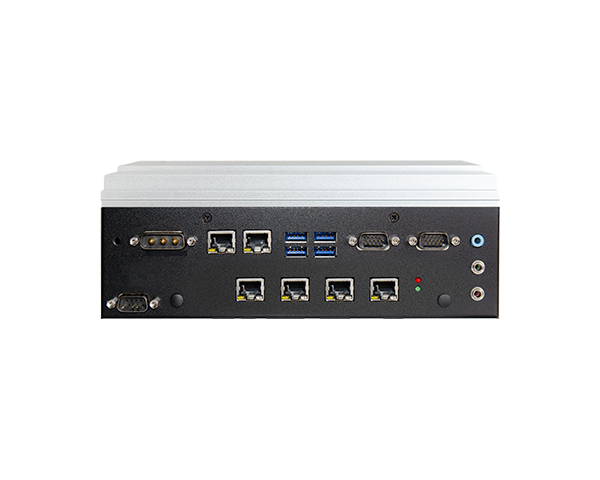

[Q470E/W480E] 4x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or

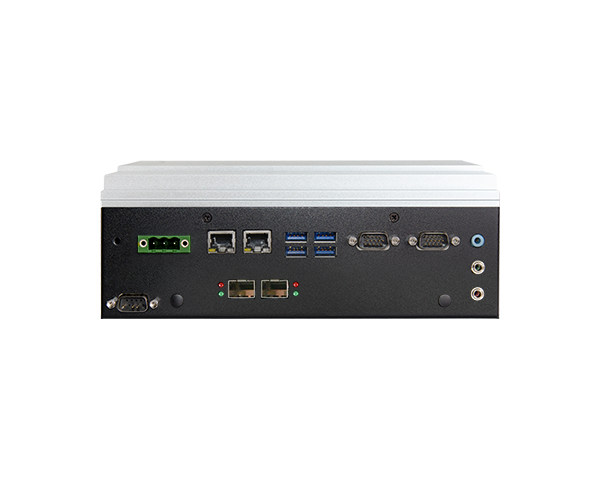

[Q470E/W480E] 2x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

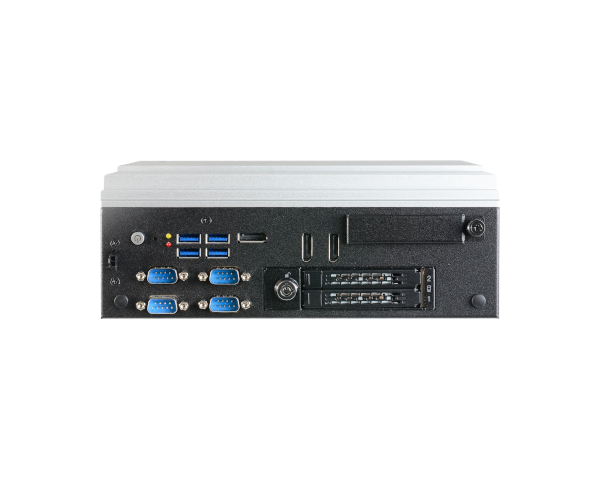

Rear I/O
Serial
4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)
USB
4 x USB 3.1 Gen2
Display
2 x DP++ ports
1 x HDMI port
Buttons
1 x Power button
1 x Reset button
Switch
2-pin remote switch
Antenna
2 x antenna holes
SIM
3 x accessible SIM slots with cover bracket
CANBus
2 x DB-9 ports for CAN bus (optional)
Flank I/O
Antenna Hole
2 x antenna holes on right side
2 x antenna holes on left side
Internal I/O
Serial
1 x 2x5 pin block header for RS232
Mini PCIe
1 x mini PCIe slot with SIM holer on faceplate
Supports WiFi/BT/LTE or CAN bus module
M.2
Total 3 x M.2 slots
1 x 2230 E-key slot (PCIe x1 & USB2.0)

[Q470E/W480E] 1 x 3042/3052 B-key (USB3.0 & PCIex1) with dual SIM slots on faceplate
[Q470E/W480E] 1 x 2242/2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe

[H420E] 1 x 3042/3052 B-key (USB3.0 only) with dual SIM slots on faceplate
[H420E] 1 x 2242/2280 M-Key-slot (SATA only)
Cooling
Fan
Passive cooling
Security
TPM
[Q470E/W480E] Supports dTPM2.0 by default (disabled by BIOS setting)
[Q470E/W480E] Optional fTPM2.0 supported
Hardware Monitor
Gravity Sensor
Support 3-axis femto accelerometer
User-selectable ±2g/±4g/±8g/±16g scale
Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake
and return-to-sleep
Power
Type
[Q470E/W480E] 3pin 3W3 connector
[H420E] 3 pin terminal block
Supply
Wide Range 9~50VDC with power management (on/off delay) and ignition
OS Support
Microsoft
Windows 10 IoT Enterprise RS5
Windows 11 IoT Enterprise LTSC SW
Linux
Ubuntu Linux 20.04
Environment
Operating Temperature
-20°C to 70°C
without turbo boost and throttling is expected
Storage Temperature
-40°C to 85°C
Relative Humidity
10% to 95% (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
Dimensions (W x H x D)
235 x 87.5 x 221mm ( mounting bracket excluded )
Weight
5.5 kg
Color
Black and Silver
Standards and Certifications
Shock
MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Tested by SSD, HDD is not support)
Vibration
MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
Certifications
FCC, E-Mark
Packing List
Packing List
1 VC500-CMS system unit
1 Power connector
1 Mounting bracket
1 3W3 adaptor cable
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    VC500-CMS-POEM12-Q
    Part Number :
    750-VC50000-000G
    Description :
    Q470E, 8 USB 3.1, 1 DI, 1 DO, 4 (M12) POE, Power: 3pin 3W3 connector
  • Model Name :
    VC500-CMS-10G-Q
    Part Number :
    750-VC50000-100G
    Description :
    Q470E, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, Power: 3pin 3W3 connector
  • Model Name :
    VC500-CMS-POE-Q
    Part Number :
    750-VC50000-210G
    Description :
    Q470E, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, Power: 3pin 3W3 connector
  • Model Name :
    VC500-CMS-H
    Part Number :
    750-VC50000-310G
    Description :
    H420E, 6 USB 3.1, Power: 3 pin terminal block
  • Model Name :
    VC500-CMS-10G-W-X127
    Part Number :
    750-VC50000-600G
    Description :
    Xeon-1270TE, W480E, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, Power: 3 pin terminal block
  • Model Name :
    VC500-CMS-Q
    Part Number :
    750-VC50000-700G
    Description :
    Q470E, 8 USB 3.1, 1 DI, 1 DO, Power: 3 pin terminal block
Optional Items
  • Item Name Part Number Description
  • Item Name :
    2.5" SSD
    Part Number :
    785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G
    Description :
    2.5"" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
    2.5"" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
    2.5"" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
    2.5"" SATA SSD, 128GB MLC, -40 to 85°C, RoHS
  • Item Name :
    M.2 SATA SSD
    Part Number :
    785-M2SATA64G
    785-M2SATA128G
    785-M2SATA256G
    785-M2SATA512G
    Description :
    64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75°C
  • Item Name :
    Memory
    Part Number :
    138-580004-104G
    138-540002-121G
    Description :
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V
    4GB DDR4 2666Mhz SO-DIMM, -40 to 85°C
  • Item Name :
    WiFi/BT module kit
    Part Number :
    761-AP1235-000G
    Description :
    WiFi/Bluetooth Module AP12356, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws
  • Item Name :
    LTE module kit
    Part Number :
    761-RC3000-001G
    Description :
    Quectel EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2
  • Item Name :
    5G module kit
    Part Number :
    761-RC3000-100G
    Description :
    SIM8202G-M2 M.2 module, antenna*4, 184mm SMA cables *4
  • Item Name :
    M12 Cable
    Part Number :
    A81-005038-054G
    Description :
    8-pin M12 X-coded to RJ45 PoE cable
  • Item Name :
    CAN bus module
    Part Number :
    770-MPEC21-100G
    Description :
    MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly
  • Item Name :
    Power Switch Cable
    Part Number :
    A81-004363-054G
    A81-006065-016G
    Description :
    3W3 to terminal block 2*4P/4.2mm, L=250 & 300mm with ignition switch button
    Terminal Block 1*3P/5.0mm to DC Jack, L=100mm with ignition switch button
  • Item Name :
    Power Adapter
    Part Number :
    671-133001-000G
    671-116005-000G
    Description :
    330W, GST360A, Input: 85~264V, Output: 12V/27.5A, 220x95x46mm, L=1000mm, C8P, LV6, 62368-1, GST360A12-C8P(MEAN WELL)RoHS
    160W, GST160A24, Input: 100~240V, Output: 24V/6.67A, 175x72x35mm, L=1200mm, DC PLUG 5.5*2.5*7.5mm(Lockable), LV6, 62368-1, GST160A24-DFIA(MEAN WELL)RoHS
