ADS101/ADS103|Intel®|Industrial Motherboards|DFI

Home Industrial Motherboards Mini-ITX ADS101/ADS103
  • 12th Generation Intel® Core™ Processors
  • 2 DDR4 3200MHz SODIMM up to 64GB
  • Quad Displays: 1 DP++, 1 DP++/HDMI, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)
  • Supports up to 4K/2K resolution
  • Multiple expansion: 1 PCIe x16, 1 M.2 E Key (USB/PCIe), 1 M.2 M Key (PCIe/SATA), 1 M.2 B Key (PCIe/SATA/USB)
  • Rich I/O: 1 Intel 2.5GbE, up to 2 Intel GbE, 2 COM, up to 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 2 SATA 3.0
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Planning QUOTE NOW

Wide-temp: -40°C~85°C
Wide Voltage: 15~36V DC-in
4K2K Display
Multiple Expansion
Quad Independent Display
Product Comparison
You have items. ,Up to 3 items.
You have ,Up to 3 items.
RoHS Certification
CE Certification
FCC Certification

ADS101/ADS103 Related Tags

#12th Gen Intel® Core™ Processor#ADS Series#4K2K Display#PCIe x16#Windows#Linux#HDMI#Multiple Expansion#12V DC-in#DDR4#RoHS Certification#CE Certification#FCC Certification

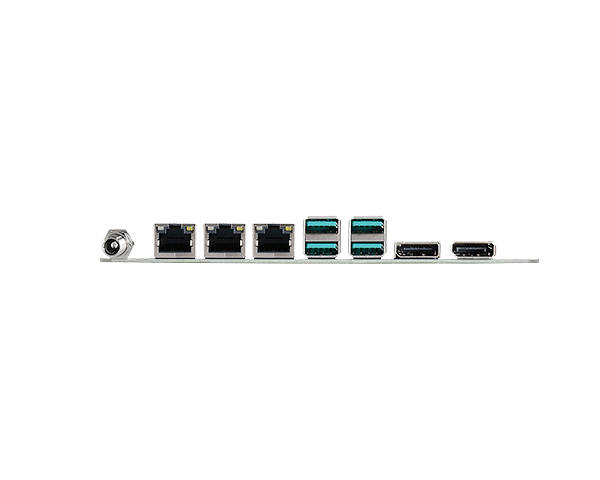

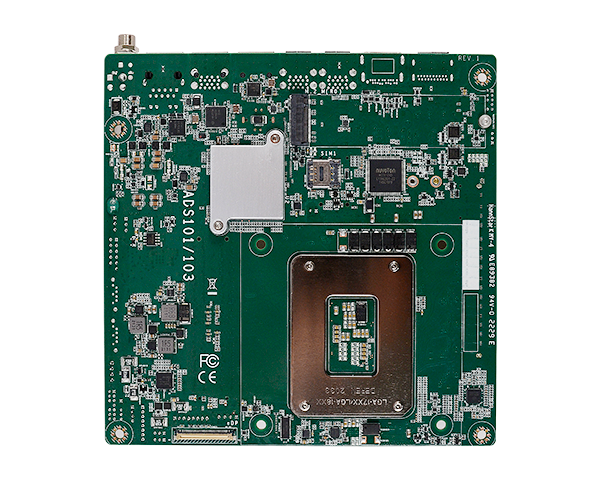

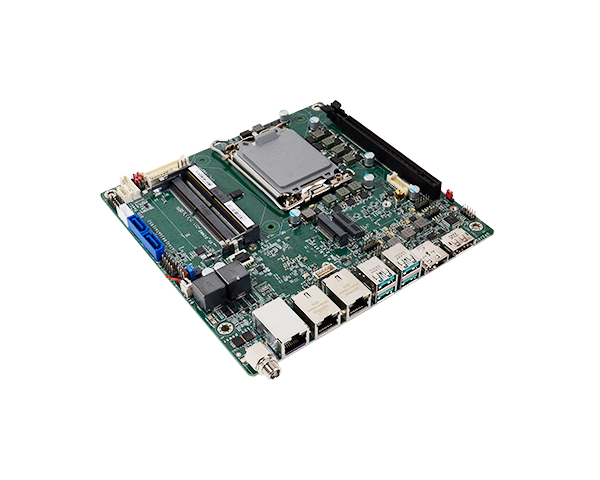

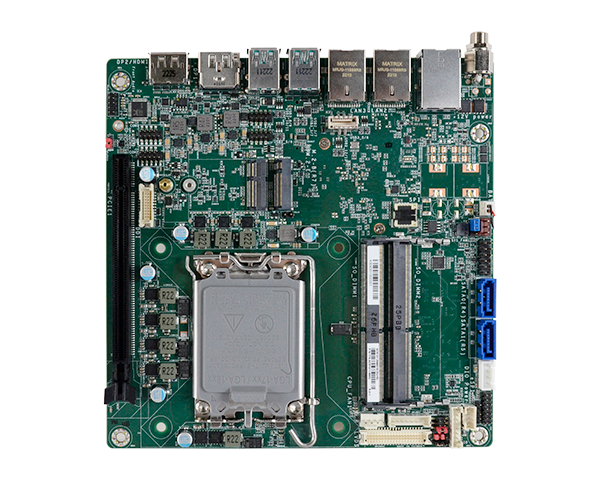

ADS101/ADS103 (3 LAN)

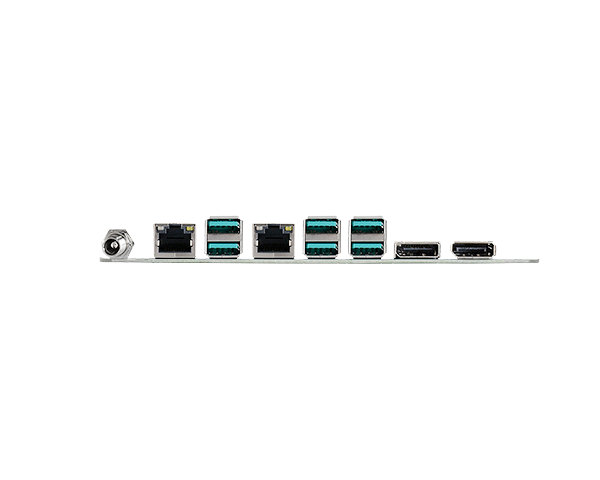

ADS101/ADS103 (2 LAN)
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Intel® R680E/Q670E/H610E Chipset
Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 3200 MHz (ECC support: R680E only)
AMI SPI 256Mbit
Intel® HD Gen 9 Graphics
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
1 x DP++
1 x DP++/HDMI
1 x LVDS/eDP
1 x DFI display extension port (DP/ HDMI/VGA available)
DP++: resolution up to 4096x2304 @60Hz
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
Quad Displays
DP++ + DP++/HDMI + LVDS/eDP + DFI display extension port (DP/HDMI/VGA available)
1 x PCIe x16 (Gen 5)
1 x M.2 2230 E Key (USB/PCIe x1)
1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)
1 x M.2 2280 M Key (PCIe Gen3 x1/SATA)
1 x M.2 2242/3042/3052 B Key (SATA/USB 3.2 Gen1/USB 2.0)
Audio Codec
Realtek ALC888
1 x Intel® I225LM PCIe(10/100/1000/2.5G speeds)
1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)
(H610E: I219V no supporting vPro/AMT)
1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)
Rear I/O
1 x 2.5GbE (RJ-45)
1 x GbE (RJ-45) (2x by Opt.)
R680E/Q670E: 4 x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)
H610E: 2 x USB 3.2 Gen2 +1 x USB 3.2 Gen1
1 x DP++
1 x DP++/HDMI
1 x DFI display extension for (DP/HDMI/VGA) (Opt.)
1 x Line-out
1 x Mic-in
Internal I/O
2 x RS-232/422/485 (without power) (2.54mm pitch)
4 x USB 2.0 (2.54mm pitch)
2 x USB 3.2 Gen1 (R680E/Q670E only)
1 x LVDS header
1 x eDP connector
1 x Front Audio Header
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)
1 x 8-bit DIO
1 x LPC
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Single 12V +/-10% DC (ADS101)
Wide Range 15~36V (ADS103)
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
RTC Battery
CR2032 Coin Cell
OS Support
Windows 10 IoT Enterprise 64-bit
Operating: -5 to 65°C
Storage: -40 to 85°C
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Mini-ITX Form Factor , 170mm (6.7") x 170mm (6.7")
PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm
Standards and Certifications
CE, FCC Class B
Packing List
Packing List
1 ADS101/ADS103 motherboard
1 Serial ATA data & power cable w/lock (Length: 300mm) A81-002101-016G
1 COM port cable (Length: 250mm, 1 x COM port) A81-015011-001G
1 I/O shield TBD
1 M.2 screw/standoff TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM port cable
    Part Number :
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data & power cable w/lock
    Part Number :
    Description :
    Length: 300mm
  • Item Name :
    Thermal solution
    Part Number :
    Description :
    For 35W, Height: 29.4mm
    For 65W, Height: 46mm
  • Item Name :
    DT122 Chassis
    Part Number :
    Description :

Intelligent Workload Optimization: ADS Series powered by 12th Gen Intel® Core™

DFI's new ADS Series embedded computing solutions powered by the 12th Gen Intel® Core™ SoC leverage a new hybrid architecture of Performance Cores and Efficiency Cores (P-Core and E-Core). Computing resources are intelligently allocated and optimized to improve the workload efficiency of visual computing. In addition to a 50% improvement in computing performance, power consumption and latency are also significantly reduced, aiming to accomplish complex computing tasks of machine vision and heavy workloads faster and more precisely.

More Choices for Various Edge Computing

The 12th Gen Intel® Core™ based ADS Series industrial motherboards and embedded systems cover a complete product lineup of COM Express, SBC, Mini-ITX, microATX, ATX, fanless systems, AI systems, and more. With energy consumption from ultra-low 9W to high-performance 125W, the ADS Series is tailored to function as the computing brain for various industrial control, IoT, and computer vision applications.

All-new Hybrid Computing Architecture for Performance and Efficiency

The ADS Series powered by the 12th Gen Intel® Core™ SoC leverages the all-new hybrid architecture of P-Cores and E-Cores to achieve better computing performance with lower power consumption. Workload and workflow can be scheduled intelligently and timely with the best decision for complex visual computing applications.

More Accurate AI Inference

The new ADS Series has received a significant upgrade on the AI architecture. Besides the new support for Deep Learning Boost (DL Boost) and Vector Neural Network Instruction Set (VNNI), which were previously only available on Xeon processors, it also supports graphic card or Intel® Movidius™ VPUs AI accelerator card expansion for additional deep learning and inferencing capabilities.

Extremely Fast Reading/Writing Beyond Imagination

PCIe 5.0 provides the fastest data transmission at 32 GT/s, 2X faster than the previous PCIe 4.0. It also supports Error Correction Code (ECC) memory DDR4, satisfying the high-speed transfer needs of graphics cards and M.2 SSD.

High-speed Network to Accelerate Industry 4.0

A high-speed 10G LAN network accelerates massive data storage and sharing to improve operational efficiency significantly. Meanwhile, the ADS Series also supports 2.5G LAN, wireless wide-bandwidth 5G, and Wifi 6E to deliver up to 6GHz high-speed transmission, giving more flexibility for device deployment and making edge devices collaborate seamlessly and in real-time.

Versatile Expansions for Various Applications

Rich expansion interfaces cover PCIe x16 (Gen5), PCIe x4, PCI, M.2 NVMe SSD, M.2, RS-232/422/485, SATA, etc. Additional interfaces like USB 3.2 Gen1, SATA, COM, LAN, and PSE can be further installed via DFI's proprietary M.2 expansion modules to offer more possibilities for integration of edge computing.

4K UHD to Capture Every Detail

Through the 4K resolution with clarity and precision surpassing the resolving power of the human eye, every detail is accurately displayed for image processing and video streaming, together enhancing the accuracy of image and visual computing.

Virtual GPU Support for Accelerated Workload Integration

The ADS Series is the first platform to equip GFX SR-IOV functionality. The supported Single-Root I/O Virtualization (SR-IOV) to Intel® Graphics Virtualization Technology and I/O Virtualization Technology (Intel® GVT) gives virtual machines (VMs) access to the physical functions of a GPU’s PCI Express port and reduces the latency caused by the entirely software-based virtualization, delivering native hardware performance as well as a 60 fps frame rate. This enables manufacturers to eliminate redundant systems, reduce total energy consumption, and lower costs.
