SD100-Q170|Intel®|Industrial Motherboards|DFI

SD100-Q170
Home Industrial Motherboards Mini-ITX SD100-Q170
  • 7/6th Gen Intel® Core™ with Intel® Q170
  • Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 6 USB 2.0
  • Multiple expansion: 1 PCIe x16, 1 Mini PCIe
  • 2 DDR4 SODIMM up to 32GB
  • Four display ports support three independent displays: VGA + LVDS + DVI-I + DP++
  • 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
DP
Mini PCIe
Multiple Expansion
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

SD100-Q170 Related Tags

#IoT#Intel#Mini PCIe#PCIe x16#Windows#Linux#DVI-I#DVI-D#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#UL Certification

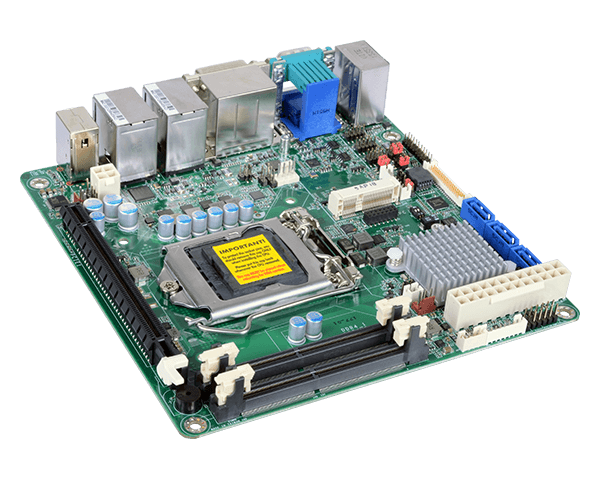

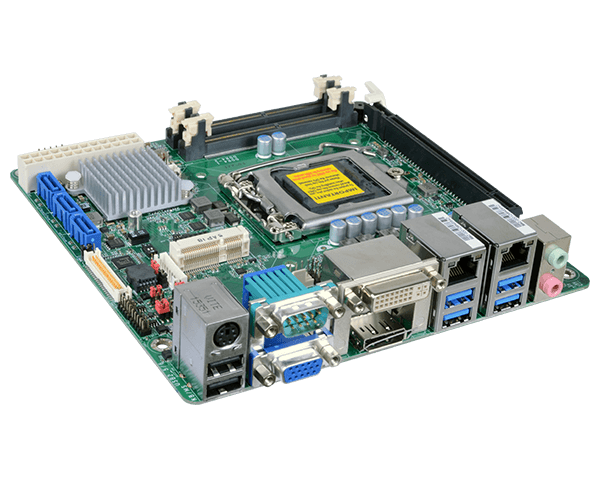

SD100-Q170 Mini-ITX
SD100-Q170 Mini-ITX
SD100-Q170 Mini-ITX
SD100-Q170 Mini-ITX
System
Processor
7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W
Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W
Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W
Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W
Chipset
Intel® Q170
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x LVDS
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel, resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + DVI-I (DVI-D signal) + DP++
LVDS + DVI-I (DVI-D signal) + DP++
VGA + LVDS + DP++
VGA + LVDS + DVI-I (DVI-D signal)
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x Full-size Mini PCIe (mSATA/PCIe, PCIe by default)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

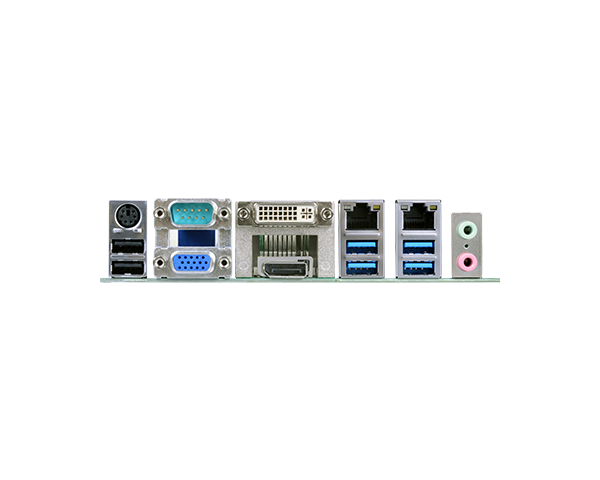

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.00mm pitch)
2 x RS-232 (2.00mm pitch)
USB
4 x USB 2.0 (2.00mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x S/PDIF
SATA
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1
DIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
ATX
Connector
4-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i7 65W: 12V @ 2.15A (25.86Watt)
Max.: i7 65W: 12V @ 5.84A (70.12Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
Note: 7th Gen Intel Core processors only support Win 10.
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
434,530 hrs @ 25°C; 254,049 hrs @ 45°C ; 162,406 hrs @ 60°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UL
Packing List
Packing List
1 SD100-Q170 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
I/O shield A49-SD3300-001G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SD100-Q170NRM
    Part Number :
    770-SD1005-000G
    Description :
    2 DDR4 SODIMM, 2 LAN, 4 COM, 10 USB, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    DT122 Chassis
    Part Number :
    761-DT1220-200G
    Description :
  • Item Name :
    LPC EXT-RS232 module
    Part Number :
    770-EXTRS1-000G
    Description :
    4 x RS232 ports
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    A71-101158-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    LPC EXT-RS485 module
    Part Number :
    770-EXTRS1-100G
    Description :
    4 x RS485 ports
