EC70A-TGU | Fanless Embedded System | 5G Cellular | 11th Gen Intel® Core™ | Tiger Lake | DFI

EC70A-TGU
Industrial Computers Fanless Embedded System EC70A-TGU
  • 11th Gen Intel® Core™ i7/i5/i3 Processors
  • On board memory 8GB and 1 SO-DIMM DDR4
  • Triple Displays: 2 HDMI (4K@30Hz) + 1 VGA (2K@60Hz)
  • Support M.2 B key 3042/3052 5G-NR module
  • Up to 4 LAN or 6 USB
  • 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)

Status : Preliminary

Low Power Consumption
Wide-temp: -20~60°C
Wide Voltage: 9~36V DC-in
Fanless Design
Compact Size
4K2K Display
Windows
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
EC70A-TGU Embedded Solution Powered by: DFI Proprietary Motherboard

EC70A-TGU Related Tags

#Intel#Compact PC#5G#Fanless Design#Compact Size#4K2K Display#Windows#HDMI#VGA#Multiple Expansion#DDR4#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification#AGV#AMR#Material Handling#ULT#11th Gen Intel® Tiger Lake Processor
System
Processor
11th Gen Intel® Core™ i7/i5/i3 Processors
Intel Embedded Series
Intel® Core™ i7-1185G7E Processor, 4C8T, 12M Cache, 1.8GHz (4.4GHz), 15W
Intel® Core™ i5-1145G7E Processor, 4C8T, 8M Cache, 1.5GHz (4.1GHz), 15W
Intel® Core™ i3-1115G4E Processor, 2C4T, 6M Cache, 2.2GHz (3.9GHz), 15W
Intel Industrial Series
Intel® Core™ i7-1185GRE Processor, 4C8T, 12M Cache, 1.8GHz (4.4GHz), 15W
Intel® Core™ i5-1145GRE Processor, 4C8T, 8M Cache, 1.5GHz (4.1GHz), 15W
Intel® Core™ i3-1115GRE Processor, 2C4T, 6M Cache, 2.2GHz (3.9GHz), 15W
Memory
8GB On-board memory & one SO-DIMM DDR4
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Iris® Xe Graphics for i7/i5 Processors
Intel® UHD Graphics for i3/Celeron Processors
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
Display
2 x HDMI
1 x VGA
HDMI: resolution up to 4096x2160@30Hz
VGA: resolution up to 1920x1200@60Hz
Storage
Internal
1 x M.2 2280 M key (PCIe x4)
Expansion
Interface
1 x M.2 2280 M key (PCIe x4)
1 x M.2 3042/3052 B key (USB3.1)
1 x M.2 2230 E Key (PCIe/USB2.0)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
(SKU 1)
1 x Intel® I210IT
1 x Intel® I225IT
(SKU 2)
2 x Intel® I210IT
1 x Intel® I225IT
(SKU 3)
3 x Intel® I210IT
1 x Intel® I225IT
LED
Indicators
1 x Power LED
1 x HDD LED

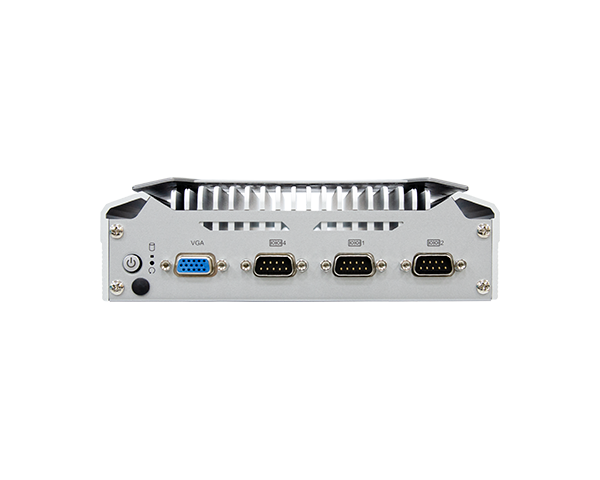

Front I/O
Serial
2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS232 or DIO (DB9, COM 4)
Display
1 x VGA
Buttons
1 x Power button
1 x Reset button

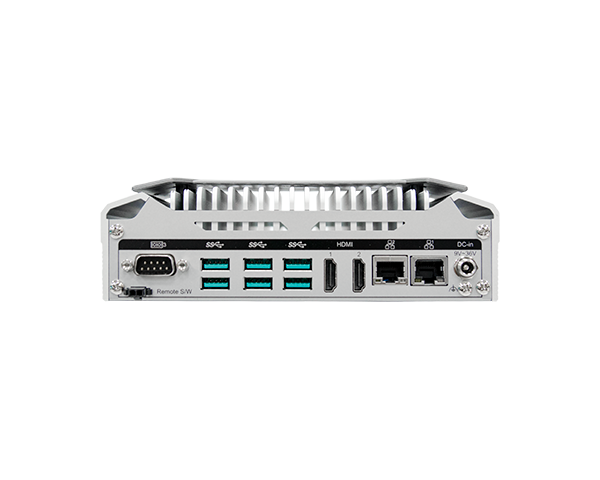

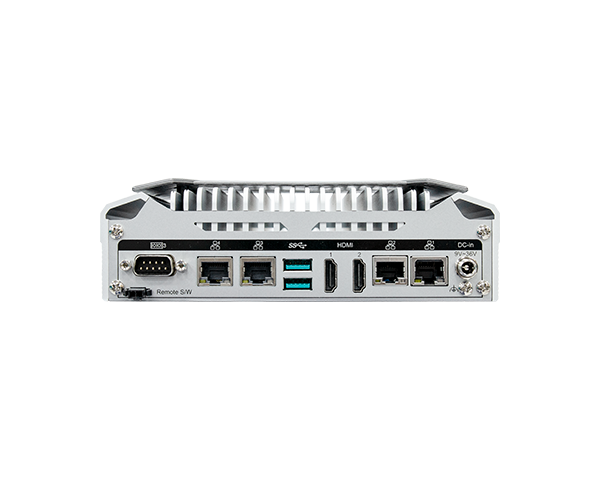

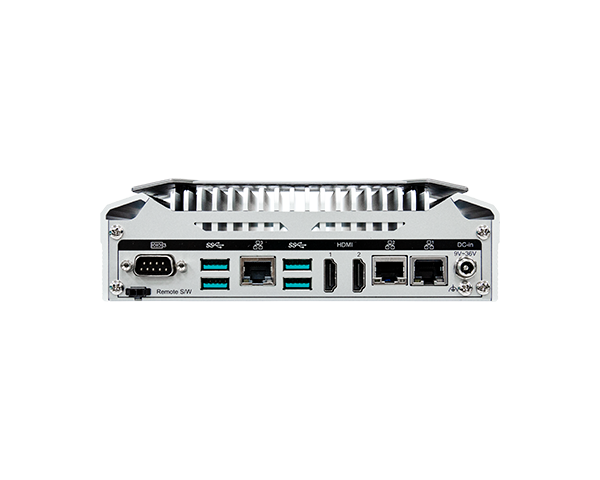

Rear I/O
Ethernet
(SKU1) 2 x GbE (RJ-45)
(SKU2) 3 x GbE (RJ-45)
(SKU3) 4 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9, COM 3)
USB
(SKU 1) 6 x USB 3.1 (type A)
(SKU 2) 4 x USB 3.1 (type A)
(SKU 3) 2 x USB 3.1 (type A)
Display
2 x HDMI
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide range 9~36V
Connector
DC Jack
OS Support
OS Support
Windows 10
Environment
Operating Temperature
-20 to 60°C (wide-temp SSD)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-con5densing)
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA/DIN rail mount
Dimensions (W x H x D)
181.6mm x 57mm x 118.4mm
Weight
1.1 kg
Standards and Certifications
Shock
Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
