WM120-CMS171/CMS173｜Intel®｜Industrial Computers｜DFI

WM120-CMS171/CMS173
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Mini-ITX/ATX System & Chassis WM120-CMS171/CMS173
  • Industrial-grade desktop computer
  • Rich I/O connectivity: 2 Intel GbE, 8 USB 3.2 Gen2, 4 USB 3.2, 2 DP++
  • Multiple Expansion: 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key
  • Support 5G-NR & WiFi 6 module
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Preliminary QUOTE NOW

Wide Voltage: 15~36V DC-in
4K2K Display
PCIe x16
DP
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UL-US Certification
UKCA Certification
WM120-CMS171/CMS173 Embedded Solution Powered by:
CMS171/CMS173

CMS171/CMS173

Mini-ITX Motherboard Front

Mini-ITX, Comet Lake, 10th Gen Intel® Core™, 2 DDR4 SODIMM, 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key, 2 DP++, 2 Intel GbE, 2 COM, 8 USB 3.2 Gen2, 4 USB 3.2, 2 SATA 3.0, 1 SATA Power

WM120-CMS171/CMS173 Related Tags

#Intel#4K2K Display#1G Ethernet#PCIe x16#Windows#Multiple Expansion#DDR4#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification#Material Handling#SCARA#10th Gen Intel® Comet Lake Processor#UKCA Certification
WM120-CMS171/CMS173
WM120-CMS171/CMS173
WM120-CMS171/CMS173

Related Products:

Select All - Clear
System
Processor
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)
Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)
Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)
Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)
Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)
Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)
Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)
Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)
Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)
Chipset
Intel® Q470E Chipset
Memory
DDR4 32GB
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
2 x DP++
DP1.2: resolution up to 4096x2304@60Hz
Dual Displays
2 x DP++
Storage
Internal
1 x 2.5" SATA 3.0 1TB SSD
1 x M.2 2280 M Key (PCIe x4/SATA) (support NVMe and Intel® Optane memory)
Expansion
Interface
1 x PCIe x16 (Gen3 x8signal, Option)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) for WiFi6
1 x M.2 2280 M key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support) for SSD
1 x M.2 3042/3052 B key (PCIe/USB3.0) for 4G LTE/5G with SIM holder
Note,
65W CPU config. does not support expansion card.
35W CPU config. supports one expansion card via riser card
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
1 x Intel® I211AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

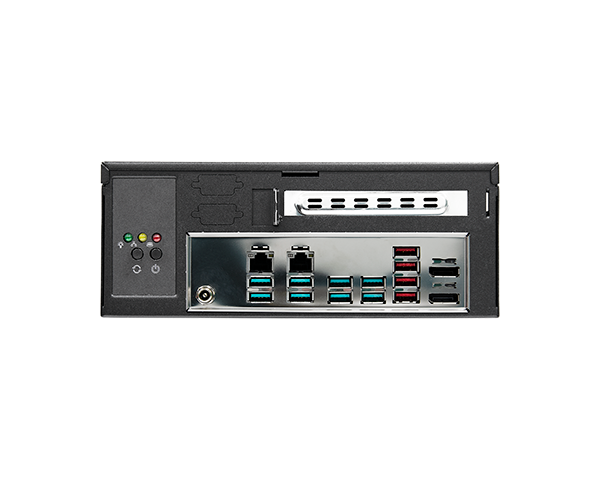

I/O
Ethernet
2 x GbE (RJ-45)
USB
8 x USB 3.2 Gen2
4 x USB 3.2
Display
2 x DP++
Buttons
1 x Power button
1 x Reset button
Cooling
Fan

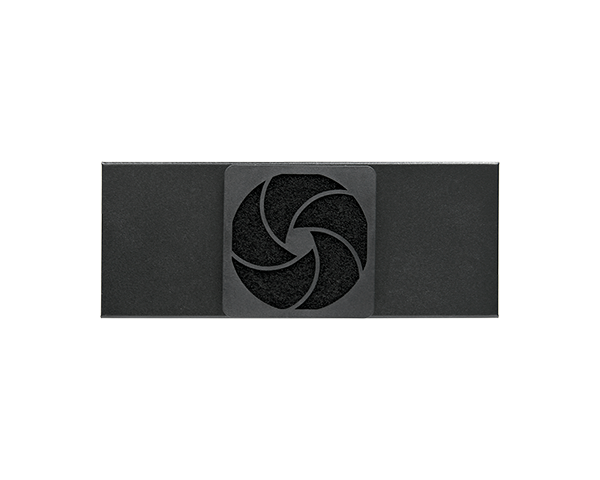

1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM1.2/2.0 (optional)
Power
Type
Lockable DC jack, co-lay with 4pin connector
WM120-CMS173 : 15V to 36VDC in
WM120-CMS171 : 12VDC in
Connector
DC-in Jack
Consumption
Idle: i7-10700E 65W: 19V @ 0.98A (18.62W)
Max: i7-10700E 65W: 19V @ 9.8A (186.2W)
Supply
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 2019
Environment
Operating Temperature
-5° to 45° C
Storage Temperature
-30 to 60°C with RTC Battery;
-40 to 85°C without RTC Battery
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Sheet Metal
Mounting
Wall mount
Dimensions (W x H x D)
224 x 88 x 206mm
Weight
2.47kg
Color
Black
Standards and Certifications
Shock
Operating: 3G
Non-operating: 5G
Vibration
Operating: 1G
Non-operating: 3G
Package Drop
ISTA Project 1A
Certifications
CE, FCC Class A, UL, RoHS (To be applied), UKCA
Packing List
Packing List
1 WM120-CMS System Unit
1 CPU Cooler (65W)
1 SATA data with power cable (7 + 15P) (Length: 220mm)
4 HDD Screws
1 System Fan
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WM120-CMS171     Part Number :
     750-WM1200-000G     Description :
    WM120-CMS: CMS171-Q470, Mini-ITX Wallmount System, 12VDC in, F/G System RoHS
  • Model Name :
    WM120-CMS173     Part Number :
     750-WM1200-100G     Description :
    WM120-CMS, CMS173-Q470, Mini-ITX Wallmount System, 15 to 36VDC in, F/G System RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    1 COM port cable     Part Number :
     A81-015011-001G     Description :
    Length: 250mm, 1 x COM port
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350/398mm
  • Item Name :
    USB 3.1 Gen1 port cable     Part Number :
     A81-001052-023G     Description :
    Length: 320mm
  • Item Name :
    USB 3.2 Gen2 port cable     Part Number :
     A81-001075-017G     Description :
    Length: 350mm
  • Item Name :
    DP to HDMI Dongle     Part Number :
     612-D2H13M-000G     Description :
