M8MP553｜NXP｜Industrial Motherboards｜DFI

M8MP553
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 3.5" SBC M8MP553
  • ARM® i.Mx8M plus-based Processor for 30% performance enhancement
  • Industry-Leading Wide Voltage Support 9 to 36V
  • Ultra-High-Speed Connectivity for 4G/5G Edge Gateway
  • Outstanding Graphic Performance, supports LVDS and HDMI with dual display
  • CAN bus for automation equipment integration
  • 1 M.2 2230 E key,  1 3052 B key
  • 15-Year CPU Life Cycle Support Until Q1' 36 (Based on NXP Roadmap)

Status : Launched QUOTE NOW

+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

M8MP553 Related Tags

#Edge AI Computing#NXP#IoT#5G#ARM#Fanless Design#Compact Size#4K2K Display#Linux#Android#HDMI#Multiple Expansion#DDR4#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification#UKCA Certification#NXP i.MX 8M

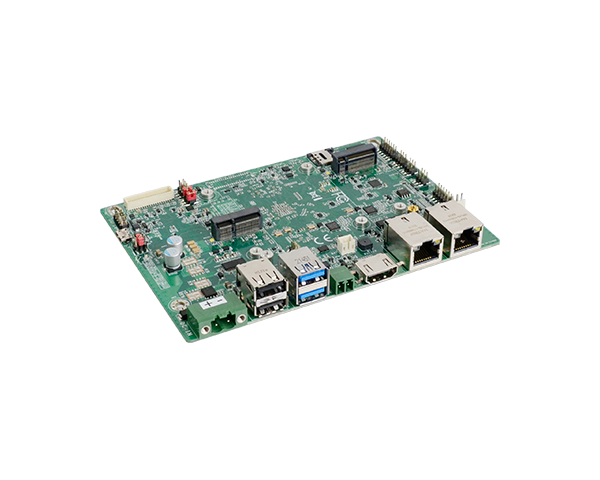

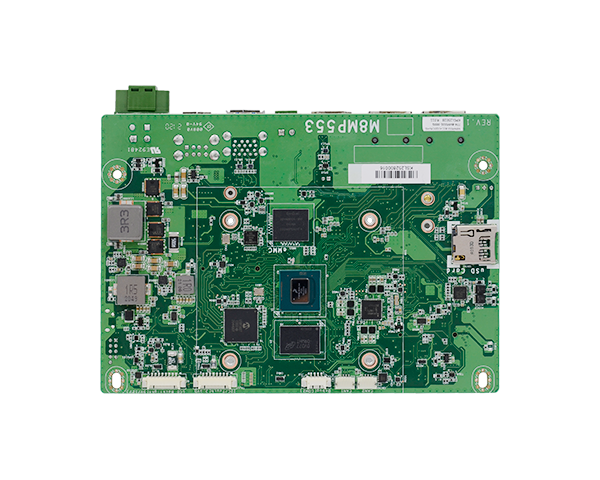

M8MP553
M8MP553
M8MP553
M8MP553

Related Products:

Select All - Clear
System
Processor
i.MX 8M plus applications processors
MIMX8ML6CVNKZAB (Industrial), Quad 1.6GHz, VPU/ISP/CAN FD, -40~105°C
MIMX8ML3CVNKZAB (Industrial), Dual 1.6GHz, VPU/ML/ISP/CAN FD, -40~105°C
Memory
2GB/4GB/8GB LPDDR4 Memory Down
Graphics
Controller
GC7000UL
Feature
HW Decode: 1080p60 H.265,H.264, VP9, VP8
HW Endcode: 1080p60 H.265,H.264
Display
1 x HDMI
1 x LVDS
HDMI: resolution up to 1920x1080 @60Hz
LVDS: resolution up to 1920x1200 @60Hz
Dual Displays
LVDS + HDMI
Android:support single output
Storage
eMMC
1 x eMMC 5.1 with default 16GB (up to 64GB)
Expansion
Interface
1 x M.2 B key 3052/2242 (USB 3.1 Gen2/USB 2.0)
1 x M.2 E key 2230 (PCIe x1/USB 2.0)
1 x Nano SIM slot
Audio
Audio Codec
Audio codec SGTL5000
Ethernet
PHY
AR8035

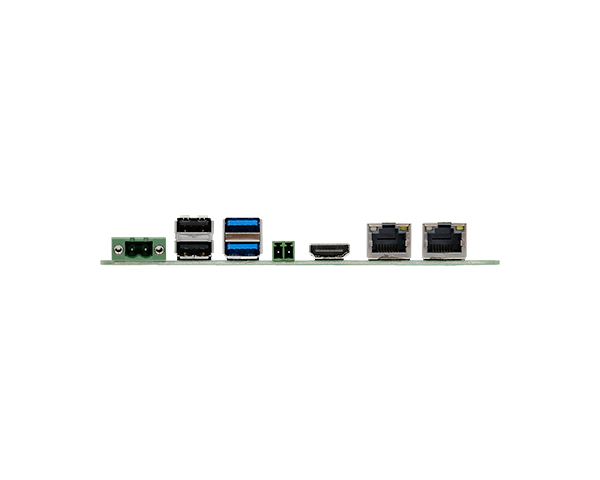

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS485 (2-wire)
USB
2 x USB 3.1 Gen1
2 x USB 2.0
Display
1 x HDMI
Internal I/O
Serial
1 x RS232
1 x RS232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.00mm pitch, the 2nd USB is opt. from M.2 3052)
1 x Micro USB OTG
Display
1 x LVDS LCD Panel connector
1 x LCD/Intverter Power
Audio
1 x Audio (Line-out/Mic-in)
DIO
1 x 8-bit DIO
SD
1 x uSD card
CANBus
2 x CAN bus 2.0b on Industrial CPU sku
I2C
1 x I2C / Touch
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36VDC
Note1: Support 9V~24VDC in -30~80°C operating temperature.
Note2: Support 36VDC within 70°C operating temperature.
Connector
2-pole terminal block (default)
Co-lay 4-pin vertical power connector
Consumption
Typical: i.MX 8M Plus Quad, 12V, 3.6Watt
Max.: i.MX 8M Plus Quad, 12V, 5.28Watt
Battery
CR2032 Coin Cell
OS Support
Linux
Linux Yocto 3.0 (default)
Software
Android 10
Environment
Temperature
Operating: -30 to 80 °C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
i.MX 8M Plus Quad: 632,710 hrs @ 25°C; 386,370 hrs @ 45°C ; 252,204 hrs @ 60°C; 138,544 hrs @ 80°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
Height
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 M8MP553 board
1 Terminal block for RS485 (COM3) 342-361021-000G
1 Heatsink (Height: 21mm) A71-008168-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    M8MP553-ECC-41QDI     Part Number :
     770-8MP5531-200G     Description :
    Quad Core Processor, 4 GB Memory Down, eMMC 16 GB, 2 GbE, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 4 USB 2.0, Power 9~36VDC, fanless design, -30 to 80°C
  • Model Name :
    M8MP553-ECC-21DLI     Part Number :
     770-8MP5531-300G     Description :
    Dual Core Processor, 2 GB Memory Down, eMMC 16 GB, 2 GbE, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 4 USB 2.0, Power 9~36VDC, fanless design, -30 to 80°C
  • Model Name :
    M8MP553-ECC-81QDI     Part Number :
     770-8MP5531-400G     Description :
    Quad core Processor, 8 GB Memory Down, eMMC 16 GB, 2 GbE, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 4 USB 2.0, Power 9~36VDC, fanless design, -30 to 80°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    2 pole terminal to DC jack cable     Part Number :
     A81-004013-000G     Description :
  • Item Name :
    Power adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V, DC Jack
  • Item Name :
    USB 2.0 cable     Part Number :
     A81-001032-016G     Description :
    Length: 200mm
  • Item Name :
    COM port cable     Part Number :
     A81-009595-016G     Description :
    Length: 250mm, COM1/4
  • Item Name :
    Audio     Part Number :
     A81-022031-016G     Description :
    Length: 300mm
  • Item Name :
    Heat spreader     Part Number :
     A71-808351-000G     Description :
    Height: 11mm
  • Item Name :
    Debug console with cable     Part Number :
     770-IMX8M1-000G     Description :
    Length: 500mm

Empowering Machine Learning at the Edge

With a 3.5” form factor SBC iMx8M plus-based solution, M8MP553 is powered by dual-core to quad-core 64bit 1.8GHz Arm® Cortex-A53 processor for real-time tasks, improving overall performance by 30% compared to the previous generation.

Unparalleled Performance with ARM® i.Mx8M plus Processors

With Built-in low-power processors, M8MP553 is designed for complex computing tasks and delivers superior image and AI inferencing capabilities. It empowers the industrial edge with low latency, power efficiency, and advanced precision. M8MP553 is applicable to meet the needs of intelligent applications, including object recognition and detection for Industrial Automation, Medical, and Smart City Infrastructure.

Superior Visual Capability

I.Mx8M plus processor is integrated with neural network processing unit (NPU). It is designed from the ground up to execute deep learning inference, and to outperform CPU- and GPU-based solutions in the same power range by several times. The NPU embedded in the I.MX8M plus helps users who need AI functions to add value to their industrial robotics or in-vehicle application. It enhances M8MP553 with superior multimedia capabilities, including video encoding and decoding, 2D/3D graphic acceleration, and multiple audio and voice functionalities.

Flexible I/O Tailored Fast Computing at the Edge

M8MP553 solution delivers a richer I/O, multiple interfaces, and performance enhancement with cost-efficiency simultaneously. Along with other expansion interfaces designed for high-end flaw detection and imaging, M8MP553 provides great flexibility and scalability for Edge AI applications.

Ultra-High-Speed Connectivity for Edge AI

For high precision computing devices for flaw detection and machine vision, the 4G/5G edge gateway can quickly handle the transmission of high-resolution images, accelerating M2M communication.

Outstanding Graphic Performance

M8MP553, equipped with an iM8M plus processor, delivers advanced 4K performance. It supports LVDS and HDMI with dual display visuals for applications such as facial recognition, object detection, machine vision, and digital signage.

Industry-Leading Wide Voltage and Temperature Endurance

M8MP553 supports 9-36V ultra-wide voltage to provide operational stability. In addition, with an advanced wide operating temperature ranges from -30°C to 80°C, M8MP553 satisfies the need of industries in harsh environment and outdoor applications, especially for smart city infrastructure, industrial automation, and charging station applications.

Industrial-Grade Long Term Support

Long life cycle support, no risk occurred. With product life support up to 15 years, DFI guarantees performance, quality, and future repair and replacement.
