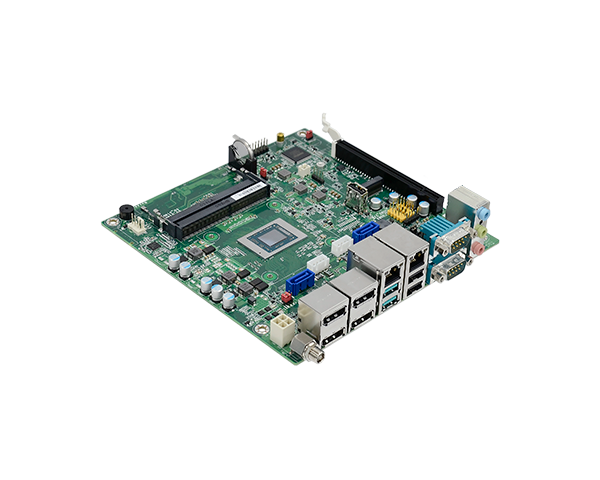

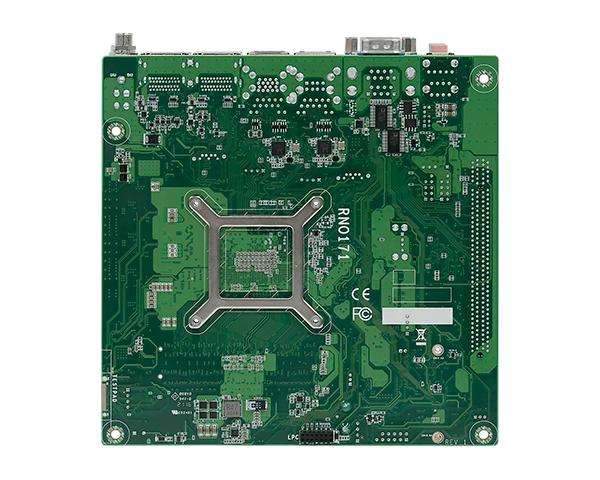

RNO171|AMD®|Industrial Motherboards|DFI

RNO171
Home Industrial Motherboards Mini-ITX RNO171
  • AMD® Ryzen™ V2000 Mini-ITX
  • 2 DDR4 3200MHz SODIMM up to 64GB
  • Four independent displays: DP++ + DP++ + DP++ + DP++
  • Multiple expansion: 1 PCIe x16, 1 M.2 M Key
  • Rich I/O: 2 GbE, 6 COM, 2 USB 3.1 Gen1, 7 USB 2.0, SATA 3.0
  • 10-Year CPU Life Cycle Support Until Q4' 30 (Based on AMD Roadmap)

Status : Sample Available BUY ONLINE (US)

4K2K Display
PCIe x16
Windows
DDR4
Quad Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

RNO171 Related Tags

#AMD V2000#AMD#4K2K Display#PCIe x16#Windows#Linux#12V DC-in#DDR4
RNO171
RNO171
RNO171
RNO171
System
Processor
AMD® Ryzen™ V2000 Series Processors, BGA V2748
AMD® Ryzen™ V2748, 8C/16T, 4MB Cache, 7 CU, 2.9GHz (4.25GHz),45W
AMD® Ryzen™ V2546, 6C/12T, 3MB Cache, 6 CU, 3.0GHz (3.95GHz),45W
AMD® Ryzen™ V2718, 8C/16T, 4MB Cache, 7 CU, 1.7GHz (4.15GHz),15W
AMD® Ryzen™ V2516, 6C/12T, 3MB Cache, 6 CU, 2.1GHz (3.95GHz),15W
Memory
Two 260-pin SODIMM up to 64GB
Dual channel DDR4 up to 3200MHz (ECC/ non ECC support)
BIOS
AMI BIOS
Graphics
Controller
AMD® RadeonTM VEGA7 Graphics
Feature
OpenGL 4.6, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
Expansion
Interface
1 x PCIe x16 (x8 Gen3)
1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
2 x Realtek RTL8119-CG (10/100/1000Mbps)

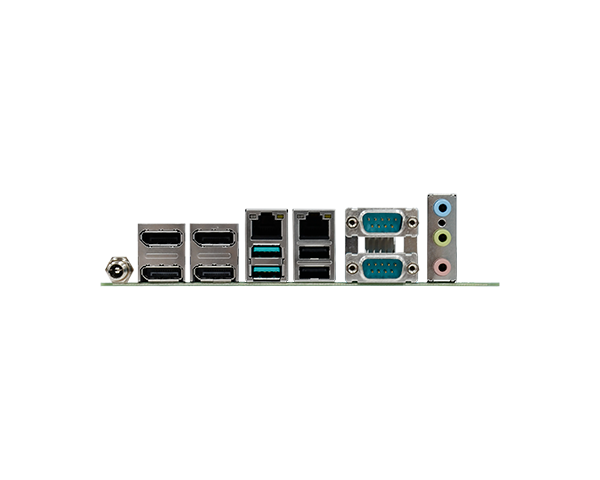

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
2 x USB 3.1 Gen1
2 x USB 2.0
Display
4 x DP++
Audio
1 x Mic-in
1 x Line-in
1 x Line-out
Internal I/O
Serial
4 x RS-232 (2.0mm pitch) (TX/RX signal only)
USB
3 x USB 2.0 (2.54mm pitch) + 1 x USB 2.0 Vertical Type A (default) or
4 x USB 2.0 (2.54mm pitch) (opt.)
Audio
1 x S/PDIF
1 x Audio (Mic-in/Line-out)
SATA
2 x SATA 3.0 (up to 6GB/s) (with 7-pin VCC support)
2 x SATA Power
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0 (opt.)
Power
Type
Single 12V +/-5% DC
Connector
Straight Type Connector (4-pin)
DC-in Jack (available upon request)
Right Angle Connector (4-pin) (available upon request)
Consumption
Idle: V2748: 12V @ 0.23A (2.76W)
Max: V2748: 12V @ 2.6A (31.20W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
RNO171-CB-V2748: 360,622 hrs @ 25°C; 147,282 hrs @ 45°C; 65,054 hrs @ 60°C;
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 37.7mm
Bottom Side: 4.3mm
Packing List
Packing List
1 RNO171 motherboard
1 I/O shield A49-GH1710-000G
1 Cooler TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RNO171-CB-V2748
    Part Number :
    770-RNO1711-000G
    Description :
    AMD® Ryzen™ V2748, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
  • Model Name :
    RNO171-CB-V2546
    Part Number :
    770-RNO1711-100G
    Description :
    AMD® Ryzen™ V2546, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
  • Model Name :
    RNO171-CB-V2718
    Part Number :
    770-RNO1711-200G
    Description :
    AMD® Ryzen™ V2718, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
  • Model Name :
    RNO171-CB-V2516
    Part Number :
    770-RNO1711-300G
    Description :
    AMD® Ryzen™ V2516, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    SATA signal and power cable
    Part Number :
    A81-002013-000G
    Description :
  • Item Name :
    USB port cable
    Part Number :
    332-253010-026G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015041-018G
    Description :
    Length: 300m
  • Item Name :
    Cooler
    Part Number :
    A71-108114-010G
    A71-108113-000G
    Description :
    for 15W, height: 35mm
    for 54W, height: 47mm

AMD Ryzen™ Embedded 7nm Eight-Core V2000 SoC

AMD Ryzen™ Embedded V2000 SoC with groundbreaking “Zen 2” x86 core architecture integrated with the Radeon™ Graphics delivers overall optimized high performance. Leveraging the eight-core or six-core SoC that features the latest 7nm process technology, DFI’s new industrial computers based on the V2000 processors offer efficient computing with up to 16 threads and support up to 4 independent displays in brilliant 4K resolution through integrating new generation AMD Radeon™ Vega graphics. The interconnection on the new hardware also reaches a new peak through a range of high-speed interfaces, such as PCIe x8 Gen3 lanes and USB 3.1 Gen1 ports. With all the enhancements, industrial applications can operate with a decent performance at low power consumption over gaming, digital signage, stadium scoreboard, and interactive kiosk applications.
