ES220-CS｜Intel®｜Industrial Computers｜DFI

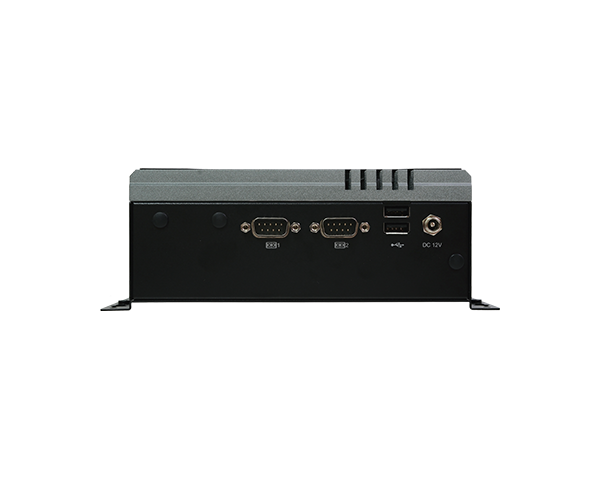

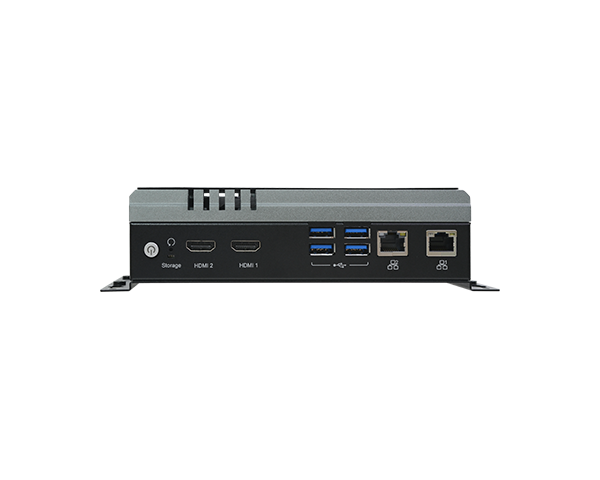

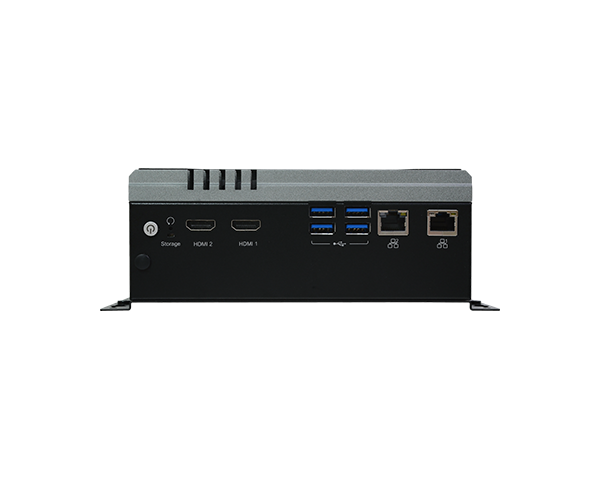

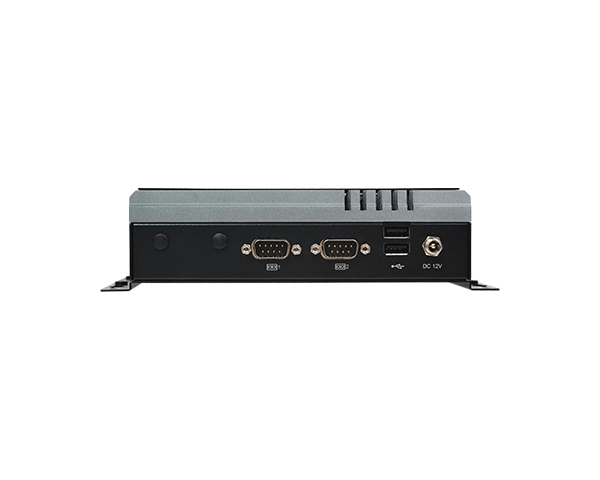

ES220-CS
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Performance Compact PC ES220-CS
  • 8th/9th Gen Intel® Core™ Processors with Intel® C246/Q370/H310 Chipset
  • 2 DDR4 SODIMM up to 64GB
  • Single/Triple storage: 1 M.2 SSD + 2 2.5" SSD (option) (with RAID supported)
  • Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0, 2 COM
  • 2 HDMI 2.0 Support resolution 4K@60Hz
  • Acoustic level support full load 36dB @operating temperature 45° C
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Compact Size
4K2K Display
Display
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
ES220-CS Embedded Solution Powered by: DFI Proprietary Motherboard

ES220-CS Related Tags

#Edge AI Computing#IoT#Intel#Compact PC#Compact Size#4K2K Display#Windows#12V DC-in#DDR4#RoHS Certification#FCC Certification
ES220-CS
ES220-CS
ES220-CS
ES220-CS
ES220-CS

Related Products:

Select All - Clear
System
Processor
9th Gen Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-9700TE Processor (8C/8T, 12M Cache, 3.6GHz, TDP 35W)
Intel® Core™ i5-9500TE Processor (6C/6T, 9M Cache, 3.6GHz, TDP 35W)
Intel® Core™ i3-9100TE Processor (4C/4T, 6M Cache, 3.2GHz, TDP 35W)
8th Gen Intel® Core™ Processors, LGA 1151 Socket
Intel® Xeon® E-2278GEL Processor (8C/16T; Max speed 3.9GHz, TDP 35W) (C246 only)
Intel® Core™ i7-8700T Processor (6C/12T, 12M Cache, 4.0GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (6C/6T, 9M Cache, 3.5GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (4C/4T, 6M Cache, 3.1GHz; TDP 35W)
Intel® Pentium® G5400T Processor (2C/4T, 4M Cache, 3.1GHz; TDP 35W)
Intel® Celeron® G4900T Processor (2C/2T, 2M Cache, 2.9GHz; TDP 35W)
Chipset
Intel® C246/Q370/H310 Chipset
Memory
2 x 260-pin SODIMM up to 64GB (ECC : C246 only)
Dual Channel DDR4 2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 610/630
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
2 x HDMI 2.0
HDMI: resolution up to 4096x2160 @ 60Hz
Dual Displays
2 x HDMI 2.0
Storage
Internal
2 x 2.5” SATA bay (optional)
support RAID 0/1
Expansion
Interface
1 x M.2 2280 M key (PCIe x4/SATA 3.0)
1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi
Ethernet
Controller
2 x Intel® I219/I210IT (10/100/1000Mbps) (Support Intel® iAMT)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.1 (type A)
Display
2 x HDMI
Buttons
1 x Power Button
1 x Reset Button
Rear I/O
Serial
2 x RS232/RS422/RS485 (DB9) or
1 x RS232/RS422/RS485 (DB9)(COM1) + 1 x 8bit DIO (DB9)
USB
2 x USB 2.0 (type A)
Wi-Fi Antenna
2 x Opening Antenna Hole
Cooling
Fan
Active Fan
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0 (option)
Power
Type
12V DC-in jack lockable
External power brick
AC Power 100-250V, 50/60Hz
OS Support
Microsoft
Windows 10 IoT Enterprise 2019 LTSC + RS5
Windows 10 Professional
Environment
Operating Temperature
-5° to 45° C
Storage Temperature
-20° to 60° C
Relative Humidity
5 to 90% RH
Acoustic Level
Full Load 36dB @op. temp. 45° C
Full Load 30dB @op. temp. 25° C
Idle Mode 26dB @op. temp. 45° C
Idle Mode 21dB @op. temp. 25° C
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
VESA mount 75x75/10x10cm (optional)
Dimensions (W x H x D)
175x48.5x120mm (1 Storage: 1 x m.2 SSD)
175x73.5x120mm (3 Storage: 1 x m.2 SSD + 2x 2.5” SSD)
Weight
1.315 kg (1 Storage: 1 x m.2 SSD)
1.665 kg (3 Storage: 1 x m.2 SSD + 2x 2.5” SSD)
Standards and Certifications
Certifications
FCC, CE Class B, ROHs, WEEE
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-000G     Description :
    ES220-CS, CS251-H310, 2HDMI, 2LAN, 2COM, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-100G     Description :
    ES220-CS, CS251-Q370, 2HDMI, 2LAN, 2COM, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-200G     Description :
    ES220-CS, CS251-C246, 2HDMI, 2LAN, 2COM, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-300G     Description :
    ES220-CS, CS251-H310, 2HDMI, 2LAN, 2OM, 2x 2.5”bay, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-400G     Description :
    ES220-CS, CS251-Q370, 2HDMI, 2LAN, 2COM, 2x 2.5”bay, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-500G     Description :
    ES220-CS, CS251-C246, 2HDMI, 2LAN, 2COM, 2x 2.5”bay, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-600G     Description :
    ES220-CS3S, CS251-C246, i3-9100TE, DDR4 4G ECC x2, SSD 2.5" 128GB x2 + M.2 SATA 128GB GB, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-700G     Description :
    ES220-CS1S, CS251-Q370, i7-9700TE, DDR4 4Gx2, SSD M.2 PCIe 256GB, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-800G     Description :
    ES220-CS1S, CS251-H310, I3-9100TE, DDR4 4G, SSD M.2 SATA 128GB, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-900G     Description :
    ES220-CS3S, CS251-H310, G4900T, DDR4 4G, INNOAGE SATA M.2 64GB TLC w/RJ45, Ubuntu 18.04, F/G SYSTEM, RoHS
  • Model Name :
    ES220-CS     Part Number :
     750-ES2200-A00G     Description :
    ES220-CS3S, CS251-Q370, I5-9500TE, 2x DDR4 4G, INNOAGE SATA 2x 2.5” 128GB TLC w/RJ45, Win10 IoT 2019 Value, F/G SYSTEM, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU     Part Number :
     143-101805-500G
    143-10220G-500G
    143-10220E-500G
    143-10240A-500G
    143-102104-501G
    143-103105-500G
    143-103103-500G
    143-112900-500G     Description :
    i7-9700TE, 1.8GHz to 3.8GHz, 8C8T, 12M cache, TDP 35W
    i5-9500TE, 2.2GHz to 3.6GHz, 6C6T, 9M cache, TDP 35W
    i3-9100TE, 2.2GHz to 3.2GHz, 4C4T, 6M cache, TDP 35W
    i7-8700T, 2.4GHz to 4GHz, 6C12T, 12M cache, TDP 35W
    i5-8500T, 2.1GHz to 3.5GHz, 6C6T, 9M cache, TDP 35W
    i3-8100T, 3.1GHz, 4C4T, 6M cache, TDP 35W
    G5400T, 3.1GHz, 2C4T, 4M cache, TDP 35W
    G4900T, 2.9GHz, 2C4T, 2M cache, TDP 35W
  • Item Name :
    Memory     Part Number :
     138-540002-106G
    138-5G0163-102G
    138-580004-102G
    138-540002-107G
    138-580004-103G
    TBD
    TBD
    TBD     Description :
    4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V
    16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V
    4GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 512Mx8 CL19 1.2V (C246 only)
    8GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 1Gx8 CL19 1.2V (C246 only)
    32GB DDR4 2666Mhz SO-DIMM 2Rx8 2Gx8 CL19 1.2V
    16GB DDR4 2666Mhz ECC-SO-DIMM 2Rx8 1Gx8 CL19 1.2V (C246 only)
    32GB DDR4 2666Mhz ECC-SO-DIMM 2Rx8 1Gx8 CL19 1.2V (C246 only)
  • Item Name :
    OS     Part Number :
     921-151310-000G
    921-151320-000G
    921-151340-000G
    921-151330-000G
    642-000W10-000G     Description :
    Win10 IoT Ent 2019 LTSC MultiLang High End EPKEA
    Win10 IoT Ent 2019 LTSC MultiLang High End PKEA
    Win10 IoT Ent 2019 LTSC MultiLang High Value EPKEA
    Win10 IoT Ent 2019 LTSC MultiLang High Value PKEA
    Win Pro 10 64Bit English 1pk DSP OEI DVD version 1809
  • Item Name :
    Power Cord     Part Number :
     332-700010-201G
    A81-004003-000G
    A81-000001-000G
    332-054034-005G
    A81-004056-000G
    A81-004031-007G     Description :
    Power Cord US 3pin 1830mm Length
    Power Cord EU 2pin 1830mm Length
    Power Cord China 3pin 1830mm Length
    Power Cord Japan 3pin 1830mm Length, with PSE logo label on cable (for worldwide)
    Power Cord Japan 3pin 2000mm Length, with PSE logo mark on inlet plug (for Japan)
    DC Cord UL 1185 5.5*2.5*9.5mm with Nut to stripped and tinned; L1000mm
  • Item Name :
    M.2 SSD     Part Number :
     638-703218-100G
    TBD
    638-712811-100G
    638-725615-100G
    638-712818-100G
    638-725614-100G
    638-751205-100G
    638-701T01-100G
    638-712816-110G
    638-725608-100G
    TBD
    TBD     Description :
    32GB, M.2 2280 SSD, SATA3 B+M Key, MLC
    64GB, M.2 2280 SSD, SATA3 B+M Key, MLC
    128GB, M.2 2280 SSD, SATA3 B+M Key, MLC
    256GB, M.2 2280 SSD, SATA3 B+M Key, MLC
    128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    256GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    1TB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    128GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K
    256GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K
    512GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K
    1TB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K
  • Item Name :
    2.5” SSD     Part Number :
     635-600322-1A0G
    635-600644-100G
    635-601282-1E0G
    635-602562-121G
    635-605122-130G
    635-601286-110G
    635-602566-150G
    635-605126-140G
    635-610006-110G     Description :
    32GB, 2.5" SSD, SATA3, MLC
    64GB, 2.5" SSD, SATA3, MLC
    128GB, 2.5" SSD, SATA3, MLC
    256GB, 2.5" SSD, SATA3, MLC
    512GB, 2.5" SSD, SATA3, MLC
    128GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
    256GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
    512GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
    1TB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
  • Item Name :
    M.2 WIFI     Part Number :
     761-OPS150-001G
    TBD     Description :
    1x intel M.2 2230 AC 3168.NGWG 802.11abgn/ac 1T1R + Bluetooth 4.2, 2x MHF4 to SMA cable 200mm 2x dipole antenna 1x M2x4mm screw
    1x Intel® Wireless-AC 9260, 2230, 2x2 AC+BT, Gigabit No vPRO 2x MHF4 to SMA cable 200mm 2x dipole antenna 1x M2x4mm screw
  • Item Name :
    VESA MOUNT     Part Number :
     TBD     Description :
    1x VESA mount bracket for ES220-CS, SGCC 1.2T, Black coating 6x Screw P/W #6-32 L=6mm OD=6.6mm Zn coating 4x M.4*10mm w/spring washer
  • Item Name :
    Adapter     Part Number :
     671-110006-100G
    TBD     Description :
    Power Adapter AC/DC 100W 12V, inlet C14
    Power Adapter AC/DC 160W 12V, inlet C14

Compact Dimension with Powerful Video Processing

ES220-CS is a high-performance miniature computer with an extreme level of silence designed to improve computing performance while maintaining a compact dimension (17.5 x 4.8 x 12cm). It is equipped with 8th/9th generation Intel® Core™ processors with hardware acceleration of video codes not limited to H.265, and supports up to 8-cores supporting up to 64GB capacity (optional support for ECC to improve reliability) to avoid insufficient memory, fulfill every factor that needs for UHD video processing and output.

Ultra-clarity by Dual HDMI 2.0

No more struggling with high-definition video output. Dual HDMI 2.0 has wider supports for HD displays with resolution up to 4K@60Hz, adaptive for real-time inspection, surveillance, and other detail-oriented applications. Besides the high resolution, the refresh rate in 60Hz also helps video frames go much more smoothly to prevent the common desktop operations suffering delay from insufficient video bandwidth, meanwhile scenarios like production line can also enhance productivity.

Prosperous Storage Capacity in a Small Box

Vibrant visuals need large capacity. ES220-CS supports one M.2 2280 M Key (PCIe x4 / SATA 3.0) SSD used by the operating system and two optional 2.5-inch SATA SSDs to provide extra storage space. Various types of RAID meet the required level of redundancy and performance, improves the overall storage performance and data reliability. Inside a multi-tasking environment, ES220-CS can process facial recognition, network-attached storage, and other related applications simultaneously.

No Disturbance: Quiet Smart Fan

To meet the demands of energy utilization, the thermal design power is reduced to 35W, which means ES220-CS releases main steam performance with less cooling system. The silent Smart Fan adjusts rotation speed according to the system workload. When running at full speed, the noise of ES220-CS is less than 36dB, therefore of suitability for applications such as video conference rooms, lecture halls, and indoor inspection.

Comprehensive I/O Interface

ES220-CS reaches the max adaptability to very common peripheral devices connected by Intel GbE ports, USB 3.1 Type-A and COM ports, and M.2 2230 E-Key (PCIe x1/USB 2.0) slot for optional WiFi modules including 802.11ac and 802.11ax. Based on massive bandwidth, data transfer including video, network, and other types of packets are like speeding on the highway.

Related Materials

Related Products

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started

COPYRIGHT© DFI 2024. ALL RIGHTS RESERVED.
| Privacy Policy | Site Map

By continuing browsing the website, you accept that dfi.com can use cookies to collect, retain, and use the information about you unless otherwise requested by you. For more information, you may take a look at our Privacy and Cookies Policy .

Accept
