EC700-BT6051/6061|Intel®|Industrial Computers|DFI

EC700-BT6051/6061
Home Industrial Computers Ultra Compact Fanless PC EC700-BT6051/6061
  • 4GB DDR3L onboard
  • mSATA, eMMC (optional)
  • 1x 2.5" SATA drive bay
  • 6 COM, 5/6 USB, 2 LAN
  • Supports 3G/4G and GPRS application
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Low Power Consumption
Wide-temp: -20~60°C
Wide Voltage: 9~36V DC-in
Compact Size
ECC Memory
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
CCC Certification
EC700-BT6051/6061 Embedded Solution Powered by:
BT253

BT253

BT253 4" SBC

4" SBC, Intel Atom® Processor E3800, 2GB/4GB DDR3L, 3 Mini PCIe, 1 VGA, 1 LVDS, 1 HDMI

EC700-BT6051/6061 Related Tags

#IoT#Intel#Mini PCIe#Compact Size#Windows#Linux#HDMI#VGA#DDR3L#Low Power Consumption#RoHS Certification#UL Certification#CE Certification#FCC Certification#CCC Certification
EC700-BT6051/6061
EC700-BT6051/6061
EC700-BT6051/6061
EC700-BT6051/6061
System
Processor
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
22nm Process Technology
Memory
4GB ECC Memory Onboard (E3845)
4GB non-ECC Memory Onboard (J1900)
Single Channel DDR3L1333MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Display
1 x VGA
1 x HDMI
HDMI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Dual Displays
1 VGA + 1 HDMI
Storage
External/Internal
1 x 2.5" SATA 2.0 Drive Bay
4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS)
1 x Full-size Mini PCIe (SATA)
1 x Half-size Mini PCIe (PCIe/USB/LPC)
1 x SIM
Ethernet
Controller
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
Indicators
1 x HDD LED
1 x Status LED

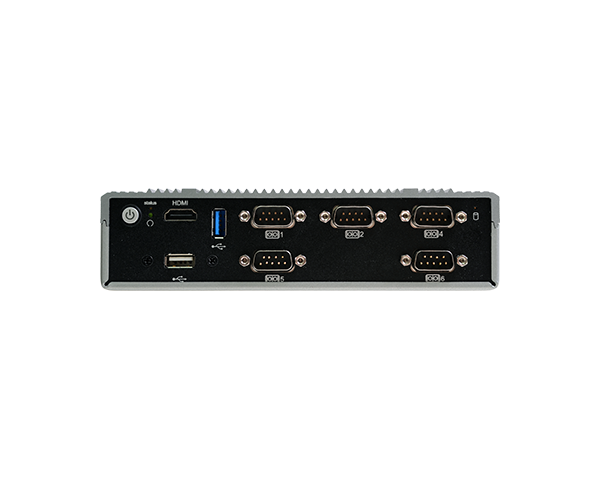

Front I/O
Serial
5 x COM port
COM1, 2, 4 support RS-232/422/485 selectable (DB-9) (COM4 supports 8-bit DIO)
COM5, 6 support RS-232 (DB-9)
USB
1 x USB 3.0 (type A) (J1900)
1 x USB 3.0 (type A) + 1 x USB 2.0 (type A) (E3845)
Display
1 x HDMI
Buttons
1 x Power Button
1 x Reset Button
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x COM port
COM3 support RS232/422/485 (DB-9)
USB
4 x USB 2.0 (type A)
Display
1 x VGA (DB-15)
Wi-Fi Antenna
3 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
DC Jack
OS Support
OS Support
Windows 7, WES 7
Windows 10 IoT
Linux (Distribution available upon request)
Environment
Operating Temperature
E3845: -20°C~60°C (SSD/mSATA), 0°C~50°C (HDD)
J1900: 0°C~60°C (SSD/mSATA), 0°C~50°C (HDD)
Storage Temperature
-20°C~85°C
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA mount
Dimensions (W x H x D)
180mm x 46.7mm x 121.2mm
Weight
985g
Standards and Certifications
Shock
Half Sine Wave 15G, 11ms, 3 Shock Per Axis (SSD/mSATA)
Half Sine Wave 3G, 11ms, 3 Shock Per Axis (HDD)
Vibration
IEC68-2-64 (3G) (SSD/mSATA)
IEC68-2-64 (1G) (HDD)
Certifications
CE, FCC Class B, RoHS, CCC
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC700-BT6051-J194
    Part Number :
    750-EC7000-I00G
    Description :
    EC700-BT6051-J194:Fanless, EC700, 2 LAN, 1 HDMI, 1 VGA, 6 COM, 5 USB, 4GB RAM,F/G SYSTEM RoHS
  • Model Name :
    EC700-BT6061-E454
    Part Number :
    750-EC7000-J00G
    Description :
    EC700-BT6061-E454:Fanless, EC700, 2 LAN, 1 HDMI, 1 VGA, 6 COM, 6 USB, 4GB RAM,F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    HDD
    Part Number :
    785-H25500G
    785-H25320G
    785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G
    785-S25064G
    Description :
    2.5” SATA HDD, 500GB, RoHS
    2.5” SATA HDD, 320GB, RoHS
    2.5" SATA SSD, 1TB MLC, RoHS
    2.5" SATA SSD, 512GB MLC, RoHS
    2.5" SATA SSD, 256GB MLC, RoHS
    2.5" SATA SSD, 128GB MLC, RoHS
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    mSATA
    Part Number :
    785-MS128GMF
    785-MS64GMF
    785-MS32GMF
    785-MS16GMF
    785-MS08GMF
    785-MS04GMF
    Description :
    mSATA Card, 128GB MLC, RoHS
    mSATA Card, 64GB MLC, RoHS
    mSATA Card, 32GB MLC, RoHS
    mSATA Card, 16GB MLC, RoHS
    mSATA Card, 8GB MLC, RoHS
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    3G + GPS
    Part Number :
    612-110040-600G
    Description :
    3G + GPS Kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V/5A, Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC8000-000G
    Description :
    EC700/800 Wall Mount Kit, RoHS
  • Item Name :
    VESA Mount
    Part Number :
    761-EC7000-100G
    Description :
    EC700 VESA Mount Kit, RoHS
  • Item Name :
    DC Cord
    Part Number :
    A81-004031-007G
    Description :
    UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm
