ST102-CS
Home Industrial Computers Performance Compact PC ST102-CS
  • 8th/9th Gen Intel® Core™ Processor
  • 2DDR4 2666MHz SODIMM up to 32G
  • 1x 2.5" SATA drive bay, 1x optional slim ODD bay
  • 2 LAN, 6 USB
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

1G Ethernet
Windows
HDMI
DP
12V DC-in
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ST102-CS Related Tags

#IoT#Intel#Mini PCIe#1G Ethernet#Windows#HDMI#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
ST102-CS
ST102-CS
ST102-CS
ST102-CS
ST102-CS
System
Processor
8th/9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)

8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Celeron G4900T Processor (Core 2; Max speed 2.9 GHz; TDP 35W)
Chipset
Intel® H310/Q370 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610)
Feature
OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS/eDP (eDP available upon request)
1 x HDMI
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz
Triple Displays
2DP++ & 1HDMI
Storage
External/Internal
1x 2.5" SATA bay, anti-vibration
Expansion
Interface
1 x Full-Size mini PCIe for mSATA
1 x m.2 2280 mKey (PCIe x 4/SATA) Support NVme and Intel Optane memory
1 x m.2 2230 Ekey (USB/PCIe)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

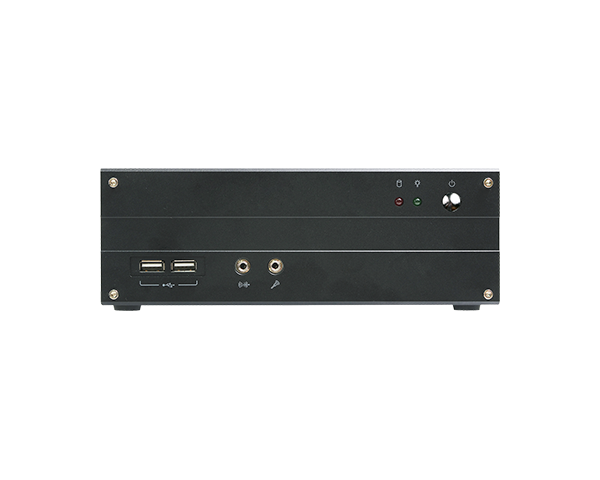

Front I/O
USB
2 x USB 2.0 (X100-USB2)
Audio
1 x Line-out
1 x Mic-in (via cable to external interface from on board pin-header)
Buttons
1 x Power Button

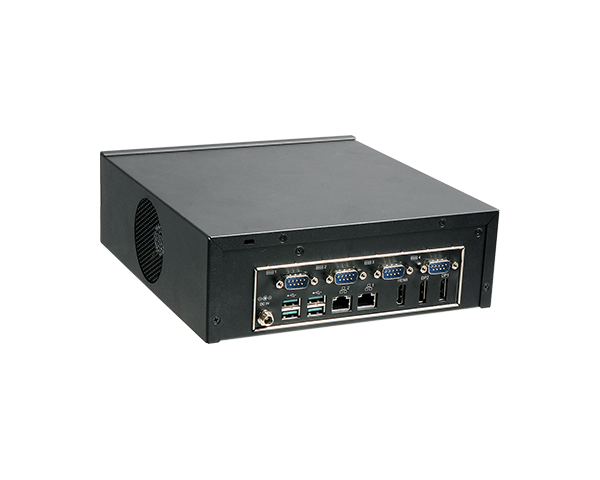

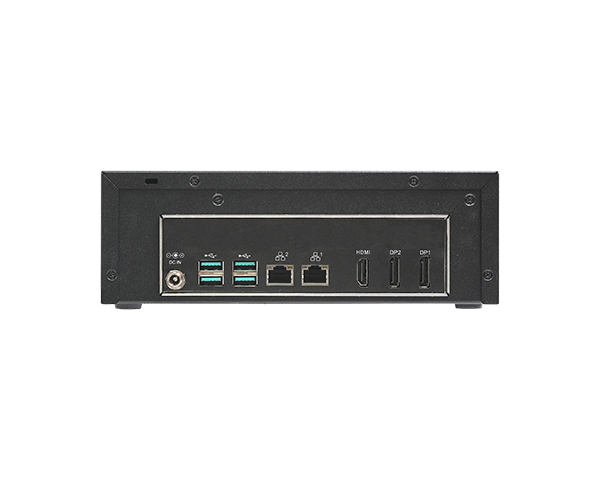

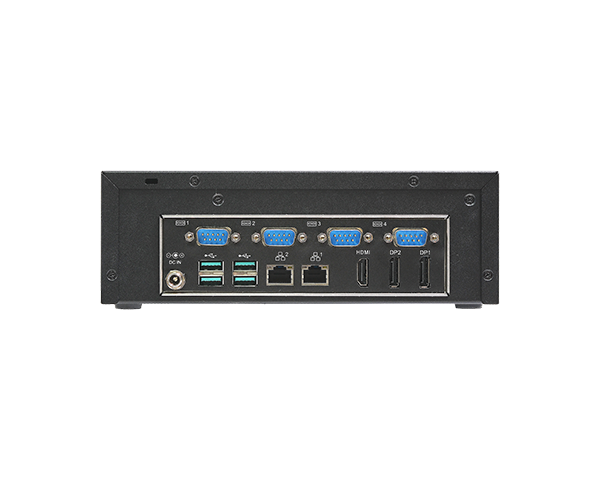

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.1
Display
2 x DP++
1 x HDMI
Antenna
2 x antenna opening
Cooling
Fan
1 x System Fan
1 x CPU Fan
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V
Connector
DC Jack
OS Support
OS Support
Windows 10 IoT Enterprise
Environment
Operating Temperature
-5 to 55°C
The configuration with i3 CPU throttles may occur
Storage Temperature
-20 to 70°C
The configuration with i3 CPU throttles may occur
Relative Humidity
Operating: 10 to 85% (non-condensing)
Storage: 10% to 90% (non-condensing)
Mechanism
Construction
Metal chassis + Aluminum front bezel
Kensington lock
Mounting
Wall mount
Dimensions (W x H x D)
219mm x 75.15mm x 229.7mm (without of stand holder)
Weight
2.55kg
Standards and Certifications
Shock
Operating: 3G Non-operating: 5G
Vibration
Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
Package Drop
ISTA Project 1A
Certifications
CE, FCC class B, RoHS, UKCA
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ST102-CS
    Part Number :
    750-ST1021-000G
    Description :
    ST102-CS: CS101-Q370 W/TPM, F/G System RoHS
  • Model Name :
    ST102-CS
    Part Number :
    750-ST1021-100G
    Description :
    ST102-CS: CS101-H310 W/TPM, F/G System RoHS
  • Model Name :
    ST102-CS
    Part Number :
    750-ST1021-200G
    Description :
    ST102-CS: CS101-Q370 W/TPM, slim ODD, F/G System RoHS
  • Model Name :
    ST102-CS
    Part Number :
    750-ST1021-300G
    Description :
    ST102-CS: CS101-H310 W/TPM, slim ODD, F/G System RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU
    Part Number :
    143-101805-500G
    143-10220G-500G
    143-10220E-500G
    143-10240A-500G
    143-102104-501G
    143-103105-500G
    Description :
    i7-9700TE, 1.8GHz to 3.8GHz, 8C8T, 12M cache, TDP 35W
    i5-9500TE, 2.2GHz to 3.6GHz, 6C6T, 9M cache, TDP 35W
    i3-9100TE, 2.2GHz to 3.2GHz, 4C4T, 6M cache, TDP 35W
    i7-8700T, 2.4GHz to 4GHz, 6C12T, 12M cache, TDP 35W
    i5-8500T, 2.1GHz to 3.5GHz, 6C6T, 9M cache, TDP 35W
    i3-8100T, 3.1GHz, 4C4T, 6M cache, TDP 35W
  • Item Name :
    DIMM
    Part Number :
    138-540002-106G
    138-580004-102G
    138-5G0163-102G
    Description :
    4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V
    16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V
  • Item Name :
    SSD M.2 2280
    Part Number :
    638-712811-100G
    638-725615-100G
    638-712818-100G
    638-725614-100G
    638-701T01-100G
    638-712816-110G
    638-725608-100G
    785-M264GT80
    785-M2128GT80
    785-M2256GT80
    785-M2512GT80
    785-M21TBT80
    Description :
    128GB, M.2 2280 SSD, SATA3 B+M Key, MLC
    256GB, M.2 2280 SSD, SATA3 B+M Key, MLC
    128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    256GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    1TB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K
    128GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K
    256GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K
    M.2 2280, 64GB, TLC
    M.2 2280, 128GB, TLC
    M.2 2280, 256GB, TLC
    M.2 2280, 512GB, TLC
    M.2 2280, 1TB, TLC
  • Item Name :
    HDD 2.5"
    Part Number :
    635-550092-090G
    635-500100-220G
    635-500111-000G
    785-H25500G
    785-H251TB
    Description :
    2.5" SATAIII 500GB 5400RPM 128MB BLUE
    2.5" SATAIII 1TB 5400RPM 128MB BLUE
    2.5" SATAIII 1TB 7200RPM 64MB BLACK
    2.5” SATA HDD, 500GB, RoHS
    2.5” SATA HDD, 1TB, RoHS
  • Item Name :
    SSD 2.5"
    Part Number :
    635-600322-1A0G
    635-600644-100G
    635-601282-1E0G
    635-602562-121G
    635-605122-130G
    635-601286-110G
    635-602566-150G
    635-605126-140G
    635-610006-110G
    Description :
    32GB, 2.5" SSD, SATA3, MLC
    64GB, 2.5" SSD, SATA3, MLC
    128GB, 2.5" SSD, SATA3, MLC
    256GB, 2.5" SSD, SATA3, MLC
    512GB, 2.5" SSD, SATA3, MLC
    128GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
    256GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
    512GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
    1TB, 2.5" SSD, SATA3, 3D TLC, PE: 3K
  • Item Name :
    OS
    Part Number :
    921-151310-000G
    921-151320-000G
    921-151340-000G
    921-151330-000G
    642-000W10-000G
    Description :
    Win10 IoT Ent 2019 LTSC MultiLang High End EPKEA
    Win10 IoT Ent 2019 LTSC MultiLang High End PKEA
    Win10 IoT Ent 2019 LTSC MultiLang High Value EPKEA
    Win10 IoT Ent 2019 LTSC MultiLang High Value PKEA
    Win Pro 10 64Bit English 1pk DSP OEI DVD version 1809
  • Item Name :
    Adapter AC/DC
    Part Number :
    671-110006-100G
    Description :
    Power Adapter AC/DC 100W 12V, inlet C14, lockable DC Jack 5.5/2.5mm, cable length 1500mm, with DFI-JP PSE
  • Item Name :
    Power Cord
    Part Number :
    332-700010-201G
    A81-004003-000G
    A81-000001-000G
    A81-004056-000G
    Description :
    Power Cord US 3pin 1830mm Length
    Power Cord EU 2pin 1830mm Length
    Power Cord China 3pin 1830mm Length
    Power Cord Japan 3pin 2000mm Length
  • Item Name :
    Foot Stand
    Part Number :
    A31-027042-210G
    Description :
    ST102 support frame, AL BLACK
  • Item Name :
    SSD mSATA
    Part Number :
    785-MS128GTF
    785-MS256GTF
    785-MS512GTF
    785-MS1TTF
    Description :
    mSATA Card, 128GB 3D TLC, RoHS
    mSATA Card, 256GB 3D TLC, RoHS
    mSATA Card, 512GB 3D TLC, RoHS
    mSATA Card, 1TB 3D TLC, RoHS
  • Item Name :
    M.2 WIFI
    Part Number :
    761-OPS150-001G
    761-EC7003-300G
    Description :
    1 x intel M.2 2230 AC 3168.NGWG 802.11abgn/ac 1T1R + Bluetooth 4.2; 2 x MHF4 to SMA cable 200mm; 2 x dipole antenna; 1 x M2x4mm screw
    1 x Intel® Wireless-AC 9260, 2230, 2x2 AC+BT, Gigabit; 2 x MHF4 to SMA cable 200mm; 2 x dipole antenna; 1 x M2x4mm screw
