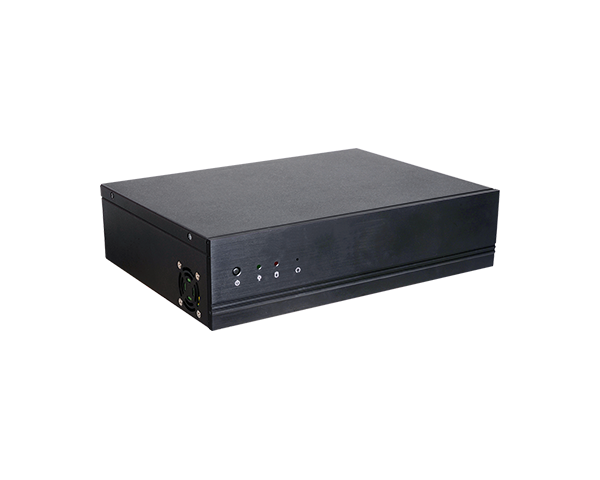

DT122-GH
Home Industrial Computers Performance Compact PC DT122-GH
  • AMD Ryzen V1000/R1000 Series Desktop Box PC
  • 2 DDR4 SODIMM up to 64GB
  • 4 DP++ resolution up to 4096x2160 @ 60Hz
  • 1x 3.5" or 2x 2.5" SATA drive bay
  • Supports 1 expansion slot: 1 PCIe or 1 PCI
  • 10-Year CPU Life Cycle Support Until Q2' 27 (Based on AMD Roadmap)

Status : Launched QUOTE NOW

4K2K Display
1G Ethernet
DP
12V DC-in
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
DT122-GH Embedded Solution Powered by:
GH171

GH171

GH171

Mini-ITX, AMD® Ryzen™ V1000/R2000/R1000, 2 DDR4, 1 PCIe x16, 1 M.2 M Key, 4 DP++

DT122-GH Related Tags

#AMD#4K2K Display#1G Ethernet#Windows#Linux#DDR4#RoHS Certification#CE Certification#FCC Certification#SCARA#Legacy ISA/PCI Expansion Port
DT122-GH
DT122-GH
DT122-GH
DT122-GH
System
Processor
AMD® Ryzen™ Embedded V1000 series
AMD® Ryzen™ Embedded V1807, Quad Core, 2M Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD® Ryzen™ Embedded V1756, Quad Core, 2M Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
AMD® Ryzen™ Embedded V1605, Quad Core, 2M Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen™ Embedded V1202, Dual Core, 1M Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD® Ryzen™ Embedded R1000 series
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 3200MHz
BIOS
AMI BIOS
Graphics
Controller
AMD® Radeon™ Vega Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP++ (V1000)
3 x DP++ (R1000)
DP: resolution up to 4096x2160 @ 60Hz
Quad Displays
DP++ (R1000 supports triple displays)
Storage
External/Internal
1 x 3.5" or 2 x 2.5" SATA 3.0 Drive Bay
1 x M.2 2280 NVME SSD (2280 PCIe x4), (x2 signal with R1000)
Expansion
Interface
1 x PCIe or 1 x PCI (through optional riser card)
Audio
Audio Codec
Realtek Audio Codec with 5.1 Channel Support
Ethernet
Controller
2 x Realtek Ethernet LAN Controller

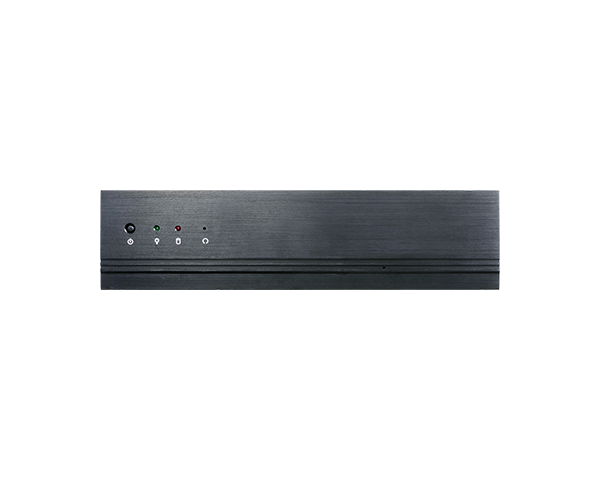

Front I/O
Buttons
1 x Power Button
1 x Reset Button
LED Indicators
1 x Power LED
1 x HDD LED
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
2 x USB 3.0
2 x USB 2.0
Display
4 x DP++ (V1000)
3 x DP++ (R1000)
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Cutout
DB-9 x 2, DB-15, DB-25
Cooling
Fan
1 x System Fan
1 x CPU Fan
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Supply
AC150W, ATX, 100 to 240V AC input
OS Support
OS Support
Windows 10
Linux
Environment
Operating Temperature
0 to 45°C
Storage Temperature
-40 to 85°C
Relative Humidity
10 to 90% RH (non-condensing)
Mechanism
Construction
Front Bezel aluminum + Chassis Sheet Metal
Mounting
Wall mount
Dimensions (W x H x D)
300mm x 75mm x 217mm
Weight
3.7kg
Standards and Certifications
Certifications
CE, FCC
Packing List
Packing List
• 1 DT122-GH system unit
• 1 CPU cooler
• 1 HDD drive bay kit
• 1 Heatsink/fan
• 1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    DT122-GH
    Part Number :
    750-DT1222-000G
    Description :
    DT122-GH: GH171-V1807B, 150W, F/G SYSTEM, RoHS
  • Model Name :
    DT122-GH
    Part Number :
    750-DT1222-100G
    Description :
    DT122-GH: GH171-V1807B, 150W, PCIe Riser, F/G SYSTEM, RoHS
  • Model Name :
    DT122-GH
    Part Number :
    750-DT1222-200G
    Description :
    DT122-GH: GH171-V1807B, 150W, PCI Riser, F/G SYSTEM, RoHS
