SDVO-LVDS

Industrial Motherboards Peripherals SDVO-LVDS
  • Module Boards
  • CHIP: Chrontel CH7308B
  • PORT: 1 LVDS
  • Dimensions: 45mm x 38mm (1.77" x 1.49")

Status : MOQ Required

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

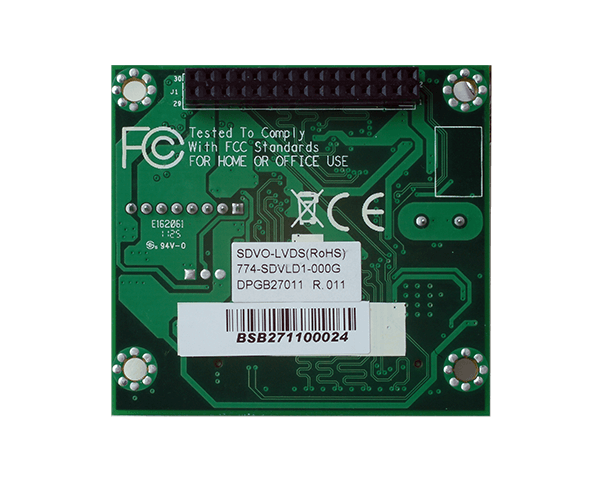

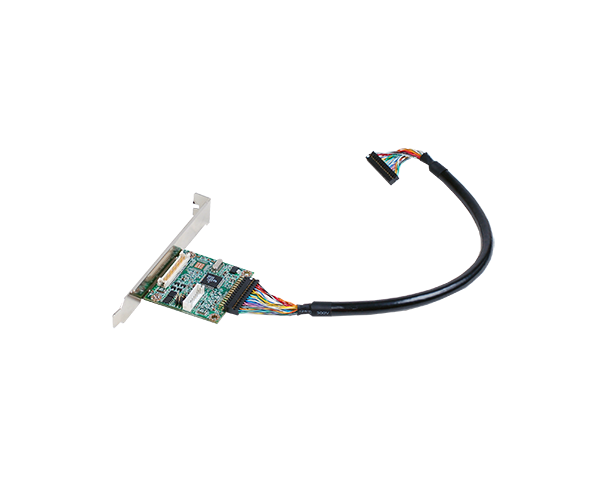

SDVO-LVDS Module Boards
SDVO-LVDS Module Boards
SDVO-LVDS Module Boards
Specifications
Features
CHIP: Chrontel CH7308B LVDS transmitter chip
Features:
Single/Dual LVDS transmitter up to 165Mpixels/s
LVDS low jitter PLL accepts spread spectrum input
Supports 18/24-bit 1600x1200 LVDS panel
Supports dimming control via hot-keys
2D dither engine
Panel protection and power sequencing
High-speed SDVO I serial (1G~2Gbps) ACcoupled differential RGB inputs
Low voltage interface supports graphics device
Programmable power management
Fully programmable through OpCodes I
Supports complete Windows driver
Supports boundary scan
TEMPERATURE: 0°C to 60°C
DIMENSIONS:
45mm (1.77") x 38mm (1.49")
