HD330-Q87

Industrial Motherboards microATX HD330-Q87
  • 4th Gen Intel® Core™
  • Dual channel DDR3 1600MHz DIMM up to 32GB
  • 1 HDMI, 1 DVI-I
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 Mini PCIe, 2 PCI, 3 SATA, 1 LPC
  • Rich I/O: 2 Intel GbE, 12 USB, 6 COM
  • 7-Year CPU Life Cycle Support

Status : Launched BUY NOW

COM ESD Protection: Air Gap ±15kv
PCIe x16
HDMI
Mini PCIe
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

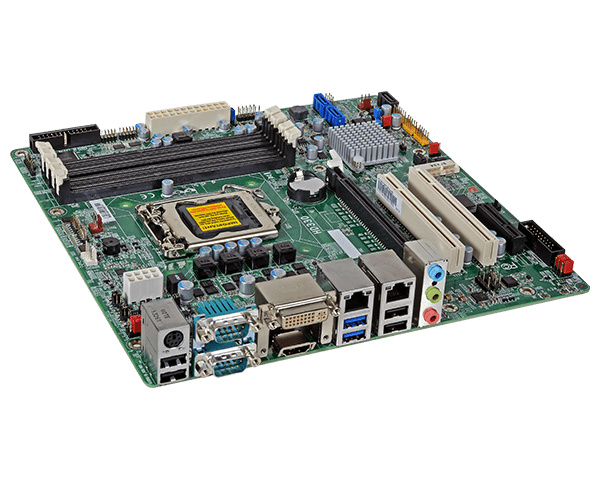

microATX, HD330-Q87

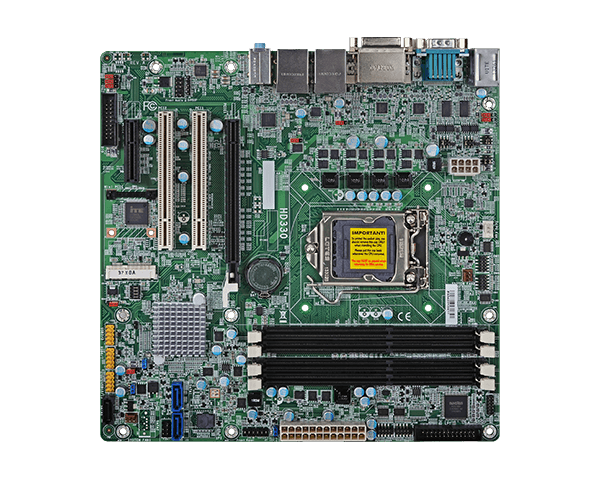

microATX, HD330-Q87

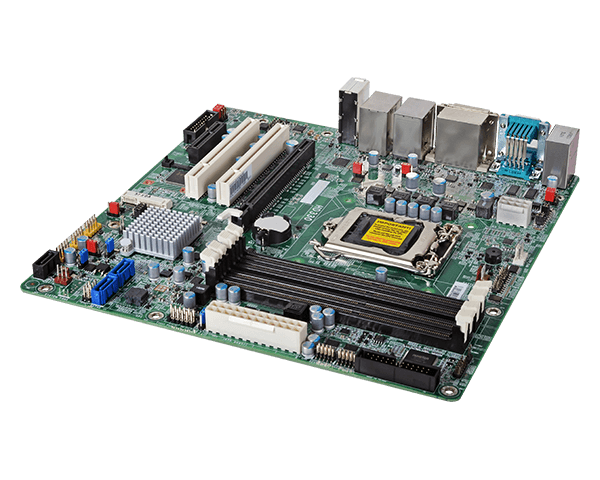

microATX, HD330-Q87
microATX, HD330-Q87
System
Processor
4th Generation Intel® Core™ processors, LGA 1150 socket
Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W
Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W
Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W
Chipset
Intel® Q87 Chipset
Memory
Four 240-pin DIMM up to 32GB Dual Channel DDR3 1333/1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.0, DirectX 11.1
Display
1 x HDMI
1 x DVI-I
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2304 @ 24Hz
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
2 x PCI
1 x Mini PCIe
Audio
Audio Codec
Realtek ALC886
Ethernet
Controller
1 x Intel® I210 PCIe (10/100/1000Mbps)
1 x Intel® I217LM (10/100/1000Mbps)

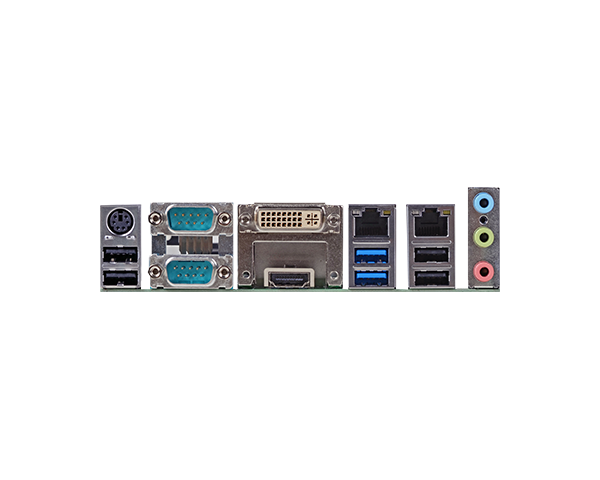

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.0
4 x USB 2.0
PS/2
1 x PS/2
Display
1 x HDMI
1 x DVI-I
Audio
1 x Line-out
1 x Mic-in
1 x Line-in
Internal I/O
Serial
4 x RS-232 (2.0mm pitch)
USB
6 x USB 2.0
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
2 x SATA 3.0
1 x SATA 2.0
DIO
1 x 8-bit DIO
LPC
1 x LPC
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
54.23W with i7-4770S at 3.10GHz and 1x 2GB DDR3 DIMM
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
434,415 hrs @ 25°C; 243,382 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
microATX form factor 244mm (9.6") x 244mm (9.6")
Packing List
Packing List
1 HD330 motherboard
1 Serial ATA data cable
1 I/O shield
1 DVD
Optional Items
  • Item Name Part Number Description
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
