COM331-B

System-On-Modules Carrier Board COM331-B
  • COM Express® R2.0, Pin-out Type 6
  • Supports Compact/Basic modules
  • Multiple displays: 1 LVDS, 1 VGA, 2 DP
  • Rich I/O: 1 GbE, 4 USB 3.0, 4 USB 2.0, 4 COM
  • microATX form factor

Status : Launched

1G Ethernet
PCIe x16
VGA
DP
Multiple Expansion
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

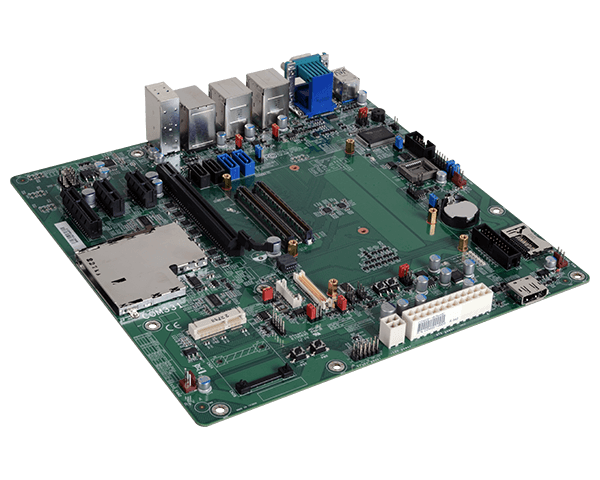

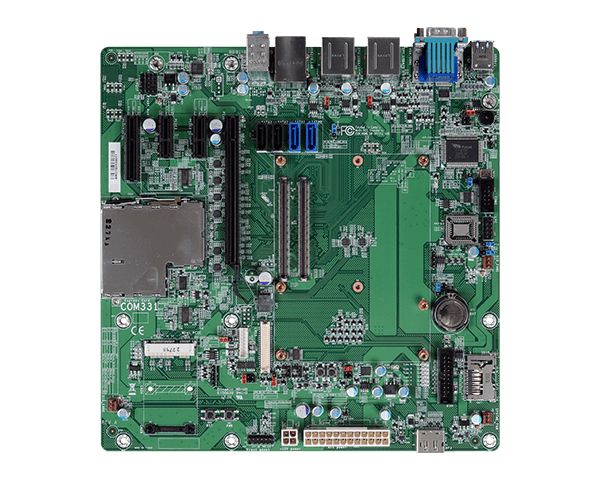

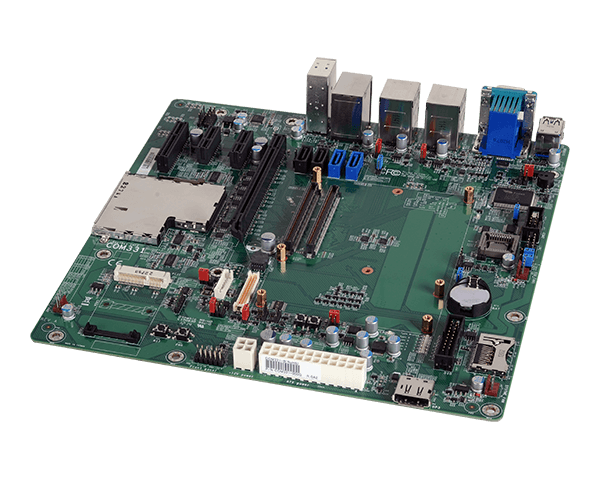

COM Express Basic/Compact Modules, COM331-B
COM Express Basic/Compact Modules, COM331-B
COM Express Basic/Compact Modules, COM331-B
COM Express Basic/Compact Modules, COM331-B
Graphics
Display
1 x VGA
1 x LVDS
3 x DP
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
2 PCIe x 1
1 x Full-size Mini PCIe
Audio
Audio Codec
Realtek ALC886
Rear I/O
Ethernet
1 x GbE (RJ-45)
Serial
1 x RS232 serial ports
1 x RS232 Serial Interface Connector
2 x Serial Interface Connector (TX/RX)
USB
4 x USB 3.0
4 x USB 2.0
Display
1 x VGA
2 x DP
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x RS232 Serial Interface Connector
2 x Serial Interface Connector (TX/RX)
Display
1 x VGA (2.54mm)
1 x LVDS LCD Panel Connector
1 x DP
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
1 x SDIO slot
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
Power
Type
12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
Connector

4-pin ATX 12V power 24-pin ATX power
Environment
Temperature

Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
microATX Form Factor 244mm (9.6") x 244mm (9.6")
Compliance
PICMG COM Express® R2.0, Type 6 Basic, Compact Modules
Packing List
Packing List
1 COM331-B board
2 Serial ATA data cables
1 COM port cable (with bracket)

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    COM port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
