IDP170

Industrial Panel PCs & Displays Industrial Display & Touch Display IDP170
  • 17" 1280x1024 LCD Touch Panel
  • Projected Capacitive Multi-touch
  • 1 DVI-I, 1 VGA

Status : Sample Available

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

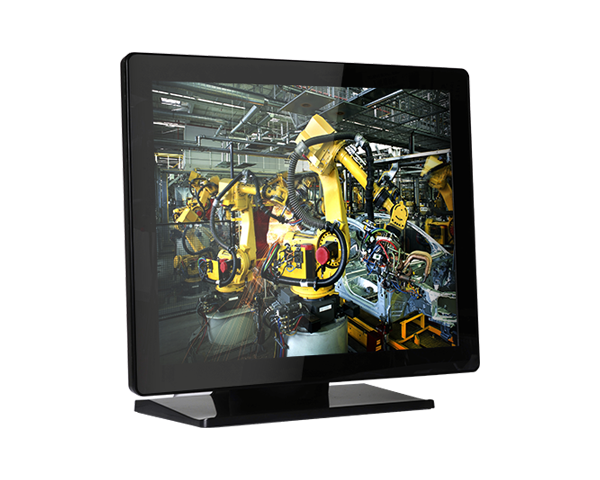

IDP170 17" Industrial Touch Monitor
IDP170 17" Industrial Touch Monitor
Display and Touch Screen
Display
17" 1280x1024 LCD Monitor
Projected Capacitive Multi-touch (10 points)
Brightness
250 cd/m²
Contrast
1000:1
Active Area
337.92mm x 270.336mm (H x V)
Response Time
5ms
View Angle
85°/85°/80°/80° (L/R/U/D)
Backlight Lifetime
30,000 MTBF LED Backlight
Bottom I/O
USB
1 x USB port (touch to external PC)
Display
1 x VGA
1 x DVI-I
Audio
1 x Audio-out
Power
Type
100V~240V, 50Hz/60 Hz, 12V/3A
OS Support
OS Support
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Linux
Android
Mac
Environment
Operating Temperature
0°C ~ 40°C
Storage Temperature
-20°C ~ 60°C
Relative Humidity
Operating: 20% ~ 80% RH (non-condensing)
Storage: 10% ~ 90% RH (non-condensing)
Mechanism
Construction
Plastic
Dimensions (W x H x D)
392.63mm x 363.88mm x 197.8 mm (with stand)
392.63mm x 327.95mm x 46.82 mm (without stand)
Weight
4.4 Kg (with stand)
2.8 Kg (without stand
Packing List
Packing List
1 IDP170 Monitor
1 Power Cord
1 VGA Cable
1 USB Cable
1 Quick Guide
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    IDP170
    Part Number :
    790-IDP170-000G
    Description :
    17" Projected Capacitive Multi-touch Screen Monitor
