EC220/EC221-BT

Industrial Computers Fanless Embedded System EC220/EC221-BT
  • Intel Atom® Processor E3800 Modular-Designed System
  • Supports DDR3L SODIMM up to 8GB
  • 2x 2.5" SATA drive bays
  • 1 Vertical USB for securing data from unauthorized access (optional)
  • 2 expansion slots: PCIe x16 (x1 signal) and PCI expansions
  • 15-Year CPU Life Cycle Support Until Q1' 28 (Based on Intel IOTG Roadmap)

Status : Launched

Low Power Consumption
Wide Voltage: 9~36V DC-in
Fanless Design
Multiple Expansion
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

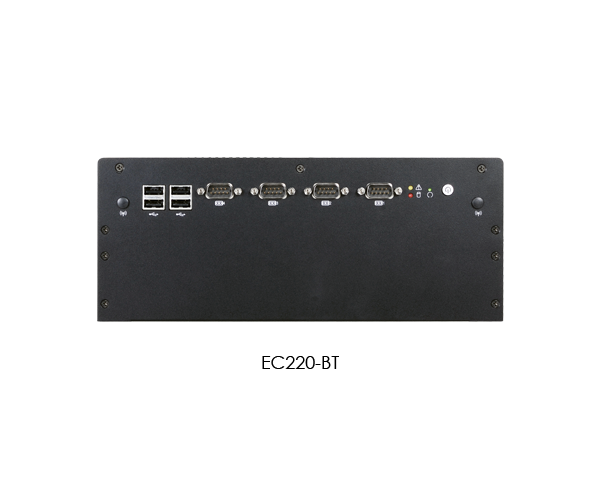

EC220/EC221-BT Modular-Designed System
EC220/EC221-BT Modular-Designed System
EC220/EC221-BT Modular-Designed System
EC220/EC221-BT Modular-Designed System
EC220/EC221-BT Modular-Designed System
System
Processor
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
22nm Process Technology
Memory
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1333MHz
Graphics
Controller
Intel® HD Graphics
Display
1 x DVI (DVI-D signal)
1 x VGA
Supports 2 Independent Displays
VGA: resolution up to 2560x1600 @ 60Hz
DVI: resolution up to 1920x1080 @ 60Hz
Dual Displays
1 x VGA + 1 x DVI
Storage
External/Internal
1 or 2 x 2.5" SATA 2.0 Drive Bay
Standard: 1 single drive bay for 1 SATA drive
Option: Single drive bay for second SATA drive
Expansion
Interface
EC220-BT:
2 x PCI
1 x Full-size Mini PCIe (PCIe/USB/SATA)
EC221-BT:
1 x PCIe x16 (x1 signal)
1 x PCI
1 x Full-size Mini PCIe (PCIe/USB/SATA)
Audio
Audio Codec
Realtek ALC888 High Definition Audio
2 watt, 4Ω Power Amplifier
1 x Speaker-out
Ethernet
Controller
2 x Intel® WGI210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
1 x Alert LED
Front I/O
Serial
4 x RS-232/422/485 (DB-9)
USB
4 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
EC220/EC221-BTA881, EC220/EC221-BTAG60:
2 x RS-232 (DB-9)
4 x RS-232/422/485 (DB-9)
EC210-BT6060:
2 x RS-232 (DB-9)
USB
EC220/EC221-BTA881:
1 x USB 3.0 (type A)
3 x USB 2.0 (type A)
EC220/EC221BTAG60, EC220/EC221-BT6060:
1 x USB 3.0 (type A)
1 x USB 2.0 (type A)
DIO
EC220/EC221-BTA881:
1 x 8-bit DIO (9-pole terminal block)
EC220/EC221-BTAG60:
2 x 8-bit DIO (9-pole terminal block)
Display
EC220/EC221-BTA881:
1 x VGA (DB-15)
1 x DVI-I (DVI-D signal)
EC220/EC221-BTAG60, EC220/EC221-BT6060:
1 x VGA (DB-15)
Buttons
1 x Reset Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V DC-in
Connector
3-Pole Terminal Block
OS Support
OS Support
Windows 7, WES 7, Windows 8.1, WES 8
Linux (Distribution available upon request)
Environment
Operating Temperature
0°C ~ 55°C (SSD/mSATA)
0°C ~ 50°C (HDD)
Storage Temperature
-20°C ~ 85°C
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall/VESA mount
Dimensions (W x H x D)
275mm x 114mm x 203mm (W x H x D)
Weight
4 kg
Standards and Certifications
Shock
Half Sine Wave 15G, 11ms, 3 Shock Per Axis
Vibration
IEC68-2-64 (HDD)
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 EC220/EC221 system unit
1 HDD drive bay kit: 2 Brackets, 1 SATA data/power cable, 4 Bracket screws, 4 HDD screws
Terminal blocks
1 Quick Installation Guide
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC220-BTA881-45
    Part Number :
    750-EC2200-C00G
    Description :
    Fanless, E3845, 2 LAN, 1 VGA, 1 DVI, 10 COM, 8-bit GPIO, 8 USB, 2 PCI, RoHS
  • Model Name :
    EC221-BT6060-45
    Part Number :
    750-EC2211-300G
    Description :
    Fanless, E3845, 2 LAN, 1 VGA, 6 COM, 6 USB, 1 PCI, 1 PCIe x16, RoHS
  • Model Name :
    EC221-BTAG60-45
    Part Number :
    750-EC2211-200G
    Description :
    Fanless, E3845, 2 LAN, 1 VGA, 10 COM, 16-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS
  • Model Name :
    EC221-BTA881-45
    Part Number :
    750-EC2211-000G
    Description :
    Fanless, E3845, 2 LAN, 1 VGA, 1 DVI, 10 COM, 8-bit GPIO, 8 USB, 1 PCI, 1 PCIe x16, RoHS
  • Model Name :
    EC220-BT6060-45
    Part Number :
    750-EC2200-F00G
    Description :
    Fanless, E3845, 2 LAN, 1 VGA, 6 COM, 6 USB, 2 PCI, RoHS
  • Model Name :
    EC220-BTAG60-45
    Part Number :
    750-EC2200-E00G
    Description :
    Fanless, E3845, 2 LAN, 1 VGA, 10 COM, 16-bit GPIO, 6 USB, 2 PCI, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    4GB DDR3L
    Part Number :
    785-RSOD34G-L
    Description :
    SODIMM, DDR3L Module, 4GB, RoHS
  • Item Name :
    2GB DDR3L
    Part Number :
    785-RSOD32G-L
    Description :
    SODIMM, DDR3L Module, 2GB, RoHS
  • Item Name :
    500GB HDD
    Part Number :
    785-H25500G
    Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    320GB HDD
    Part Number :
    785-H25320G
    Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    1TB SSD
    Part Number :
    785-S251TBG
    Description :
    2.5" SATA SSD, 1TB MLC, RoHS
  • Item Name :
    512GB SSD
    Part Number :
    785-S25512G
    Description :
    2.5" SATA SSD, 512GB MLC, RoHS
  • Item Name :
    256GB SSD
    Part Number :
    785-S25256G
    Description :
    2.5" SATA SSD, 256GB MLC, RoHS
  • Item Name :
    128GB SSD
    Part Number :
    785-S25128G
    Description :
    2.5" SATA SSD, 128GB MLC, RoHS
  • Item Name :
    64GB SSD
    Part Number :
    785-S25064G
    Description :
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    120W Power Adapter
    Part Number :
    671-110003-100G
    Description :
    120W, 19V/6.31A, Level 6, RoHS
  • Item Name :
    60W Power Adapter
    Part Number :
    671-106011-000G
    Description :
    60W, 19V/3.15A, Level 6, RoHS
  • Item Name :
    60W Power Adapter
    Part Number :
    671-106013-000G
    Description :
    60W, 12V/5A (-30 to 70°C), Level 6, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    128GB mSATA
    Part Number :
    785-MS128GMF
    Description :
    mSATA Card, 128GB MLC, RoHS
  • Item Name :
    64GB mSATA
    Part Number :
    785-MS64GMF
    Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA
    Part Number :
    785-MS32GMF
    Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA
    Part Number :
    785-MS16GMF
    Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA
    Part Number :
    785-MS08GMF
    Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    4GB mSATA
    Part Number :
    785-MS04GMF
    Description :
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    VESA Mount
    Part Number :
    785-EC2VAK
    Description :
    VESA Mount Kit
  • Item Name :
    Wall Mount
    Part Number :
    785-EC3WMK
    Description :
    Wall Mount Kit

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
