HM920-HM86

System-On-Modules COM Express Basic HM920-HM86
  • 4th Gen Intel® Core™, Intel® HM86 Chipset
  • Rich I/O: 1 Intel GbE, 8 USB 2.0
  • Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus
  • 1 VGA, 1 LVDS
  • Dual channel DDR3L 1600MHz SODIMM up to 16GB
  • 7-Year CPU Life Cycle Support

Status : Launched

1G Ethernet
PCIe x16
VGA
Multiple Expansion
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

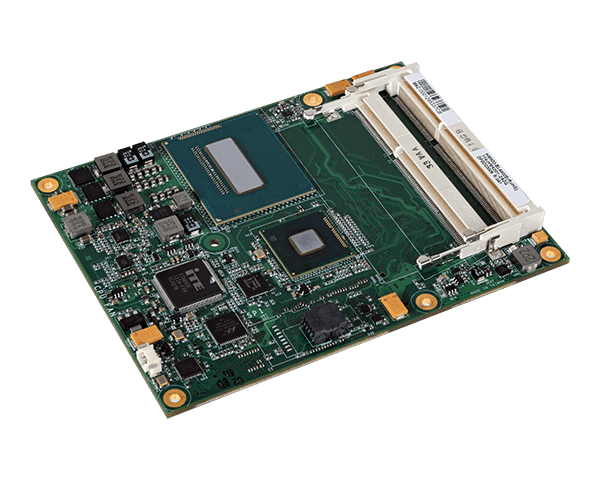

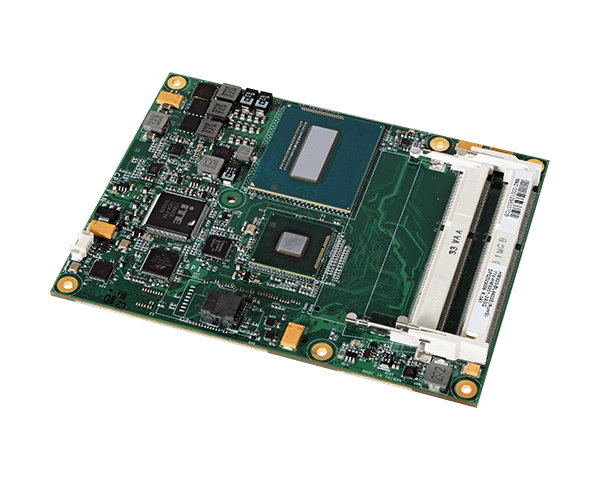

COM Express Basic, HM920-HM86
COM Express Basic, HM920-HM86
COM Express Basic, HM920-HM86
COM Express Basic, HM920-HM86
System
Processor
4th generation Intel® Core™ processors, BGA 1364
Intel® Core™ i7-4700EQ, 6M Cache, 2.4GHz (3.4GHz), 47W
Intel® Core™ i5-4400E, 3M Cache, 2.7GHz (3.3GHz), 37W
Intel® Core™ i5-4402E, 3M Cache, 1.6GHz (2.7GHz), 25W
Intel® Core™ i3-4100E, 3M Cache, 2.4GHz, 37W
Intel® Core™ i3-4102E, 3M Cache, 1.6GHz, 25W
Chipset
Intel® HM86 Chipset
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3L 1600MHz
BIOS
AMI 64Mbit SPI
Graphics
Controller
Intel® HD Graphics 4600
Feature
OpenGL up to 4.0, DirectX 11.1, OpenCL 1.2
Display
1 x VGA
1 x LVDS
VGA: resolution up to 2048x1536 @ 75Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x16 (Gen 3)
5 x PCIe x1
4 x PCI (PCI 2.3)
1 x LPC
1 x I2C
1 x SMBus
1 x IDE
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I217LM (10/100/1000Mbps)
I/O
USB
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)
SSD
1 x 2GB/4GB/8GB/16GB/32GB/64GB SSD (available upon request)
GPIO
1 x 4-bit GPIO (Default 4 inputs and 4 outputs)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
HM920-HM86BS0-4100E: 37.62W with i3-4100E at 2.4GHz and 1x 4GB DDR3L SODIMM
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20°C to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
728,093 hrs @ 25°C; 415,277 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Basic 95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R2.1, Type 2
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 HM920 board
Heat spreader with heat sink and fan: 761-HSWMBL-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    HM920-HM86BS0-2002E
    Part Number :
    TBD
    Description :
    Cooler, Intel Celeron 2002E, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HM920-HM86BS0-2000E
    Part Number :
    TBD
    Description :
    Cooler, Intel Celeron 2000E, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HM920-HM86BS0-4402E
    Part Number :
    TBD
    Description :
    Cooler, Intel Core i5-4402E, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HM920-HM86BS0-4402E
    Part Number :
    TBD
    Description :
    None, Intel Core i5-4402E, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HM920-HM86BS0-4400E
    Part Number :
    TBD
    Description :
    Cooler, Intel Core i5-4400E, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HM920-HM86BS0-4400E
    Part Number :
    TBD
    Description :
    None, Intel Core i5-4400E, 2 SODIMM DDR3L, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader
    Part Number :
    A71-011029-000G
    Description :
  • Item Name :

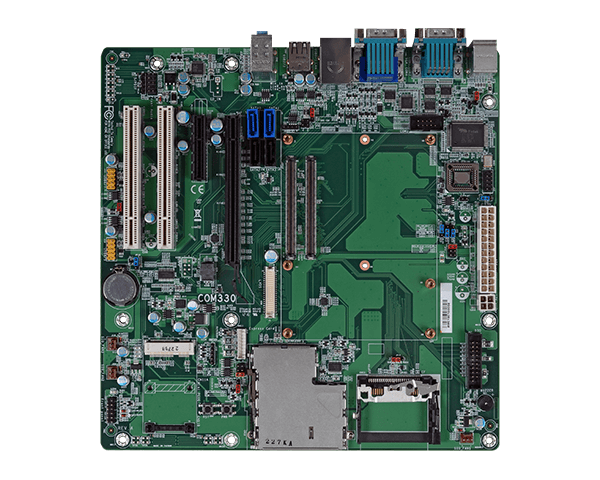

    COM330-B carrier board kit
    Part Number :
    770-COM330-000G
    Description :
