SD106-Q170

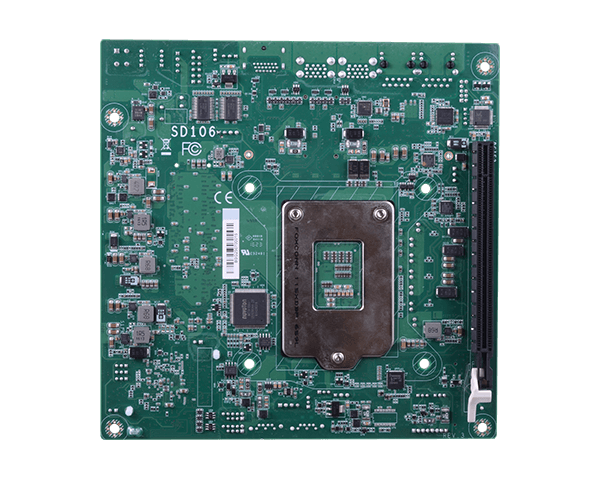

Industrial Motherboards Mini-ITX SD106-Q170
  • 6th Gen Intel® Core™ with Intel® Q170
  • 2 DDR4 SODIMM up to 32GB
  • Multiple expansion: 1 PCIe x16, 2 Mini PCIe
  • Rich I/O: 2 Intel GbE, 2 COM, 4 USB 3.0, 4 USB 2.0
  • Three independent displays: DP++ + LVDS + eDP
  • 15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)
  • DP++ resolution supports up to 4096x2304 @ 60Hz
  • Storage: 2 SATA 3.0

Status : Launched

COM ESD Protection: Air Gap ±15kv
PCIe x16
DP
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
SD106-Q170
SD106-Q170
SD106-Q170
System
Processor
6th Generation Intel® CoreTM Processors, LGA 1151 Socket
Core i7-6700TE (Skylake-S/R0-SR2LP) / 35W / LGA1151
Core i7-6700 (Skylake-S/R0-SR2BT) / 65W / LGA1151
Core i5-6500 (Skylake-S/R0-SR2BX) / 65W / LGA1151
Core i5-6500TE (Skylake-S/R0-SR2LR) / 35W / LGA1151
Core i3-6100TE (Skylake-S/R0-SR2LS) / 35W / LGA1151
Core i3-6100 (Skylake-S/S0-SR2HG) / 51W / LGA1151
Pentium-G4400 (Skylake-S/R0-SR2DC) / 54W / LGA1151
Pentium-G4400TE (Skylake-S/R0-SR2LT) / 35W / LGA1151
Celeron G3900TE (Skylake-S/R0-SR2LU) / 35W / LGA1151
Chipset
Intel® Q170 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x eDP
1 x LVDS
1 x DP++
eDP: resolution up to 4096x2304@ 60Hz
LVDS: resolution up to 1920x1080 @ 60Hz
DP++: resolution up to 4096x2304@ 60Hz
Triple Displays
DP++ + eDP + LVDS
Expansion
Interface
1 x Full-size Mini PCIe (USB/PCIe/SATA, SATA by default)
1 x Half-size Mini PCIe (USB/PCIe/SATA, Mini PCIe by default)
1 x PCIe x16
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
1 x Intel® I211AT PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0
Display
1 x DP++
Internal I/O
Serial
2 x RS-232 (2.00mm pitch)
USB
4 x USB 2.0 (2.00mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x eDP
Audio
1 x Audio (Line-out/Mic-in)
1 x Speaker (3W amplifier)
SATA
2 x SATA 3.0 (up to 6Gb/s)
SMBus
1 x SMBus (2.00mm pitch)
Other I/O
1 x Intrusion (2.54mm pitch)
1 x CPU FAN (2.54mm pitch)
2 x SYS FAN (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0 (opt.)
Power
Type
15~36V DC in
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7
Windows 10
Windows 8.1
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
457, 253 hrs @ 25°C; 270, 131 hrs @ 45°C; 171, 981 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 16.34mm
Bottom Side: 4.2mm
Packing List
Packing List
1 SD106-Q170 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 500mm) 332-553001-005G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SD106-Q170
    Part Number :
    770-SD1061-000G
    Description :
    2 DDR4 SODIMM, 2 LAN, 2 COM, 8 USB, 15~36V DC-in, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    552-200049-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 72.8mm
  • Item Name :
    I/O shield
    Part Number :
    A49-SD1060-000G
    A49-SD1060-110G
    A49-SD1060-100G
    Description :

    Thin Type
    Thin Type Non Audio
