WL9A3

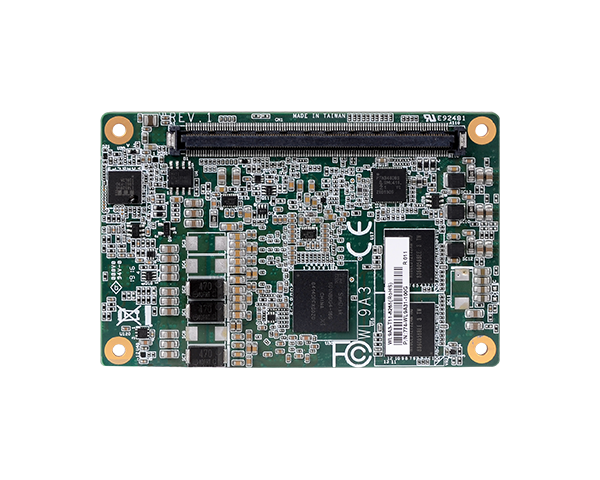

System-On-Modules COM Express Mini WL9A3
  • Intel® Core™ 8th Gen Processor
  • Dual Channel LPDDR3 2133MHz;Memory Down up to 16GB
  • 1 LVDS/eDP, 1 DDI (HDMI/DP);Supports dual displays: DDI + LVDS/eDP
  • Multiple expansions: 4 PCIe x1
  • Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)

Status : Sample Available

Wide-temp: -40°C~85°C
4K2K Display
1G Ethernet
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
WL9A3
WL9A3
System
Processor
8th Gen Intel® Core™ Processor, FCBGA1528
Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.1GHz (3.9GHz), 15W
Memory
8GB/16GB Memory Down
Dual Channel LPDDR3 2133MHz
BIOS
SPI 128Mbit (default supports FTPM)
Graphics
Controller
Intel® UHD Graphics 620
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Display
1 x DDI (HDMI/DP++)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30 Hz
DP++: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
Dual Displays
DDI + LVDS
DDI + eDP
Expansion
Interface
4 x PCIe x1 (Gen 3)
1 x SDIO
1 x LPC
2 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I219 (10/100/1000Mbps)
I/O
USB
2 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
eMMC
1 x 4GB/8GB/16GB/32GB/64GB eMMC (available upon request)
GPIO
1 x 8-bit GPIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V~20V, 5VSB, VCC_RTC (ATX mode)
12V~20V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Mini
84mm (3.30") x 55mm (2.16")
Compliance
PICMG COM Express® R3.0, Type 10
Packing List
Packing List
1 WL9A3 board
1 Heat sink (for 0 to 60°C): A71-008129-000G
1 Cooler (for -40 to 85°C): A71-108120-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WL9A3-T80-8665
    Part Number :
    770-WL9A31-000G
    Description :
    Intel® Core™ i7-8665UE Processor, 8GB LPDDR3 Memory Down,1 DIO, 1 LVDS, 2 USB 3.0, 8 USB 2.0, -40 to 85°C
  • Model Name :
    WL9A3-T80-8365
    Part Number :
    770-WL9A31-100G
    Description :
    Intel® Core™ i5-8365UE Processor, 8GB LPDDR3 Memory Down, 1 DIO, 1 LVDS, 2 USB 3.0, 8 USB 2.0, -40 to 85°C
  • Model Name :
    WL9A3-B80-8145
    Part Number :
    770-WL9A31-200G
    Description :
    Intel® Core™ i3-8145UE Processor, 8GB LPDDR3 Memory Down, 1 DIO, 1 LVDS, 2 USB 3.0, 8 USB 2.0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM100-B carrier board kit
    Part Number :
    770-COM104-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    A71-808320-000G
    Description :

Working with DFI
