SU968

System-On-Modules COM Express Compact SU968
  • 6th Gen Intel® Core™
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
  • Multiple expansion: 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
  • Three independent displays: VGA*/DDI + LVDS*/eDP + DDI
  • Dual channel DDR3L 1600MHz SODIMM up to 16GB
  • 15 Years CPU Life Cycle Support

Status : Launched

Wide-temp: -40°C~85°C
4K2K Display
Intel Active Management Technology
DDR3L
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

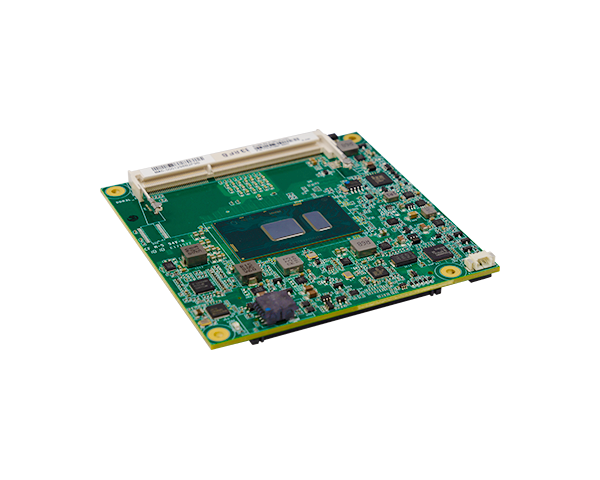

COM Express Type 6, SU968

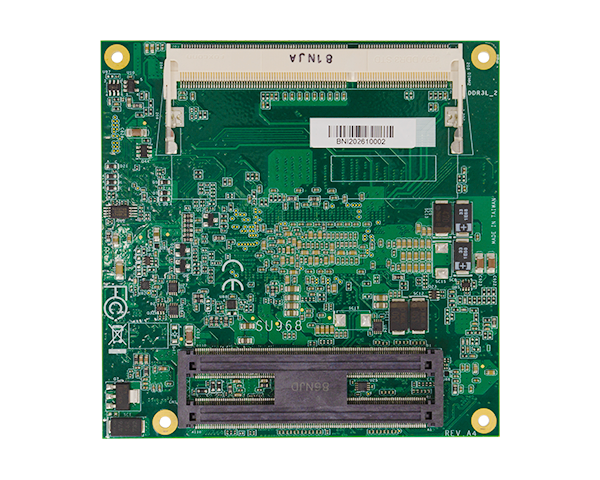

COM Express Type 6, SU968
COM Express Type 6, SU968
System
Processor
6th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W
Memory
Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI
DDI + eDP + DDI
Expansion
Interface
5 PCIe x1 or 4 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 8 lanes)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
I/O
USB
4 x USB 3.0
8 x USB 2.0
SATA
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
Typical: I7-6600U: 12V @ 0.86A (10.28Watt)
Max.: I7-6600U: 12V @ 1.372A (16.46Watt)
OS Support
OS Support
Windows 7/WES7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise (64-bit)
Ubuntu 16.04 (Intel graphic driver available)
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C (with heat spreader)
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
921,923 hrs @ 25°C; 460,715 hrs @ 45°C; 256,677 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Packing List
Packing List
1 SU968 board
1 Heat sink (Height: 23.8mm): A71-011060-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SU968-BS-3955U
    Part Number :
    770-SU9681-500G
    Description :
    Fanless, Intel Celeron 3955U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    SU968-BS-6300U
    Part Number :
    770-SU9681-400G
    Description :
    Fanless, Intel Core i7-6300U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    SU968-BS-6600U
    Part Number :
    770-SU9681-100G
    Description :
    Fanless, Intel Core i7-6600U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

* i3-6100U is supported upon request with MOQ requirement.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader (Height: 11mm)
    Part Number :
    A71-011070-000G
    Description :
  • Item Name :
    COM332-B carrier board kit
    Part Number :
    770-CM3321-000G
    Description :
