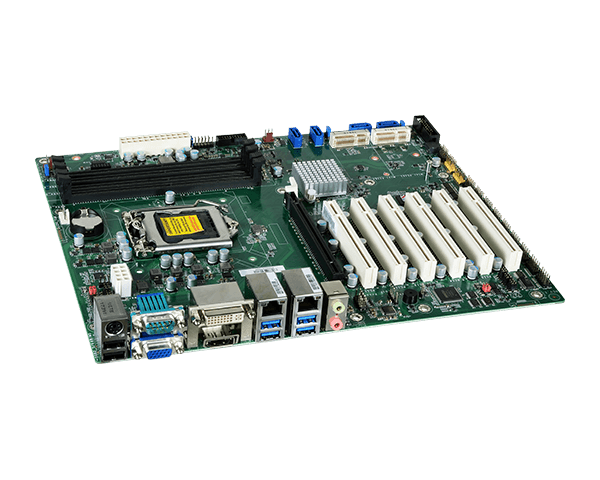

KD600-Q170
Home Industrial Motherboards ATX KD600-Q170
  • 6th/7th Gen Intel® Core™ with Intel® Q170
  • 4 DDR4 DIMM up to 64GB
  • Three independent displays: VGA, DVI-D, DP++
  • Multiple expansion: 6 PCI, 1 PCIex16, 1 Mini PCIe
  • Rich I/O: 2 Intel GbE, 10 COM, 6 USB 3.0, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : EOL

DVI-D
VGA
DP
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

KD600-Q170 Related Tags

#Intel#Mini PCIe#PCIe x16#Windows#Linux#DVI-I#DVI-D#VGA#DP#DDR4#RoHS Certification#Legacy ISA/PCI Expansion Port
KD600-Q170 | 7th Gen Intel Core | Kaby Lake | ATX | DFI
KD600-Q170 | 7th Gen Intel Core | Kaby Lake | ATX | DFI
KD600-Q170 | 7th Gen Intel Core | Kaby Lake | ATX | DFI
System
Processor
6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
Chipset
Intel® Q170 Chipset
Memory
4 288-pin DIMM up to 64GB
Dual Channel DDR4 2133/2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Triple Displays
VGA + DVI-D + DP++
Expansion
Interface
6 x PCI
1 x Mini PCIe
1 x PCIex16
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I219LM PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
1 x Intel® I211AT PCIe (10/100/1000Mbps)

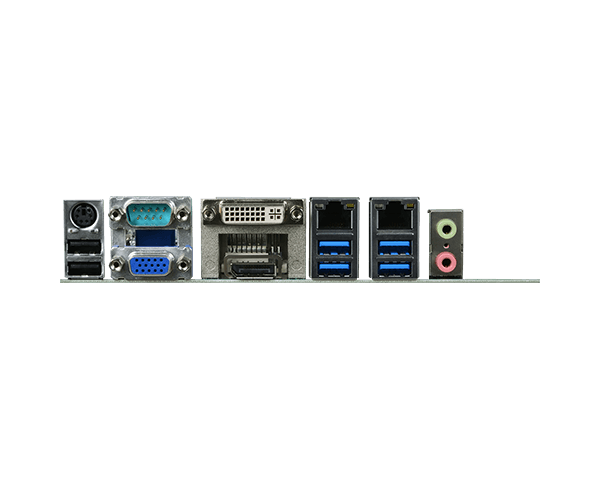

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
8 x RS-232
USB
2 x USB 3.0 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch)
Audio
1 x Front Aduio, 1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
1 x mSATA (co-lay with SATA_4)
RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infi neon TPM2.0/1.2 (opt., MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i7-7700: 3.3V @ 0.45A (1.485Watt); 5V @ 0.64A (3.2Watt); 12V @ 0.59A (7.08Watt)
Max.: i7-7700:3.3V @ 0.44A (1.452Watt); 5V @ 0.76A (3.8Watt); 12V @ 7.41A (88.92Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7 32/64-bit
Window 8.1 64-bit
Windows 10 64-bit
Linux
Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment
Temperature
Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
489,358 hrs @ 25°C; 269,297 hrs @ 45°C; 165,958 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
ATX form factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 37.35mm
Bottom Side: 4.4mm
Packing List
Packing List
1 KD600-Q170 motherboard
1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
1 I/O shield: A49-KD6000-000G
643-KD6001-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KD600-Q170
    Part Number :
    770-KD6002-100G
    Description :
    4 DDR4 DIMM, 2 LAN, 10 COM, 12 USB, 0 to 60°C
  • Model Name :
    KD600-Q170
    Part Number :
    770-KD6002-400G
    Description :
    4 DDR4 DIMM, 2 LAN, 10 COM, 12 USB, 1 TPM 2.0, 0 to 60°C
  • Model Name :
    KD600-Q170
    Part Number :
    770-KD6002-500G
    Description :
    4 DDR4 DIMM, 2 LAN, 10 COM, 12 USB, 1 TPM 1.2, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350mm
  • Item Name :
    USB 3.0 port cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    W/Bracket, Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    I/O shield
    Part Number :
    A49-KD6000-000G
    Description :
  • Item Name :
    Thermal Solution
    Part Number :
    A71-103004-000G
    A71-101158-000G
    761-103001-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
