EC90A-AL|Intel®|Industrial Computers|DFI

EC90A-AL
Home Industrial Computers Ultra Compact Fanless PC EC90A-AL
  • Palm-sized and Fanless Embedded System
  • 2GB/4GB LPDDR4-2400 memory onboard
  • Mini-DP++ resolution supports up to 4096x2160 @ 60Hz
  • Supports 1 Mini PCIe
  • Rich I/O ports: 2 Intel GbE, 1 COM, 3 USB
  • Extended operating temperature: -20 to 60°C
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Wide-temp: -20~60°C
Fanless Design
4K2K Display
DP
Mini PCIe
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
EC90A-AL Embedded Solution Powered by:
ALF51

ALF51

ALF51

1.8" SBC, Intel Atom® E3900, 1 LPDDR4, 1 Mini PCIe, 1 x Mini DP++

EC90A-AL Related Tags

#IoT#Intel#Industrial Specialized Pi#Compact PC#Mini PCIe#Fanless Design#4K2K Display#Windows#Linux#12V DC-in#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
EC90A-AL | Intel Atom E3900 | Apollo Lake | Fanless Embedded System | DFI
EC90A-AL | Intel Atom E3900 | Apollo Lake | Fanless Embedded System | DFI
EC90A-AL | Intel Atom E3900 | Apollo Lake | Fanless Embedded System | DFI
EC90A-AL | Intel Atom E3900 | Apollo Lake | Fanless Embedded System | DFI
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Memory
2GB/4GB Memory Down
Single Channel LPDDR4 2400MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
Display
1 x Mini-DP++
DP: resolution up to 4096x2160 @ 60Hz
Single Display
Mini-DP++
Storage
eMMC
16GB/32GB/64GB eMMC
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
Ethernet
Controller
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

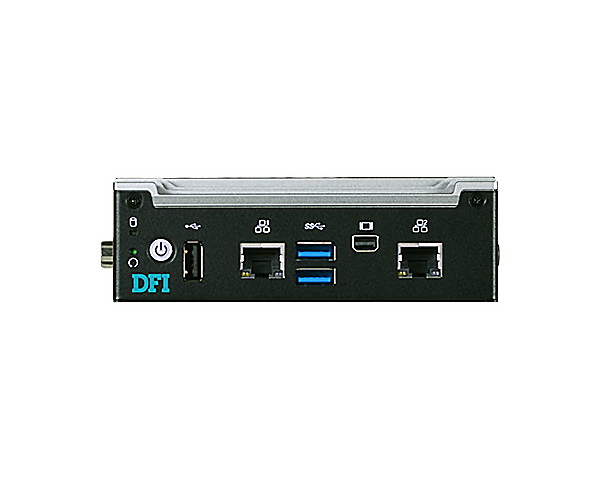

Front I/O
Ethernet
2 x GbE (RJ-45)
USB
2 x USB 3.0 (type A)
1 x USB 2.0 (type A)
Buttons
1 x Power Button

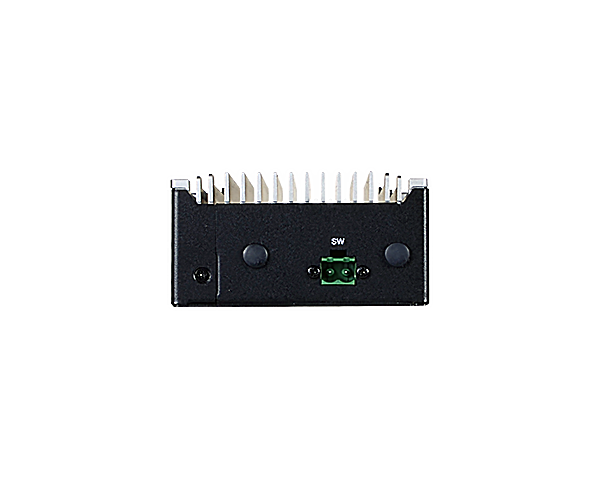

Top I/O
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Switch
1 x Power Switch (2-pin)

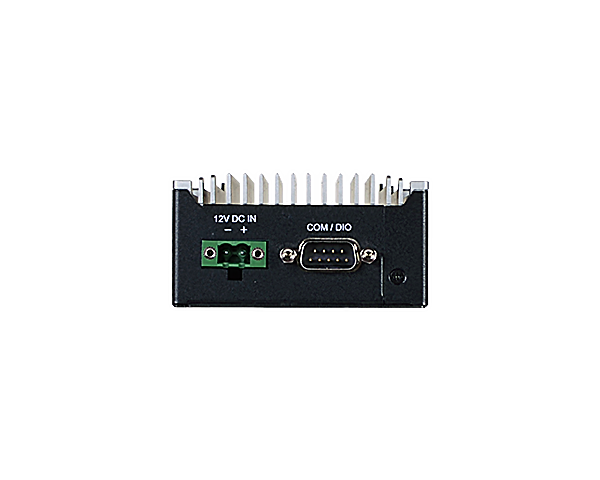

Bottom I/O
Serial
1 x RS-232/422/485 (DB-9) (8-bit DIO selected by jumper)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V DC-in
Connector
2-Pole Terminal Block
OS Support
OS Support (UEFI Only)
Windows 10 IoT (64-bit)
Linux
Linux Yocto Project (64-bit)
Environment
Operating Temperature
-20 to 60°C With 0.7m/s Air Flow
Storage Temperature
-40 to 85°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Sheet Metal
Mounting
Wall/DIN Rail Mount
Dimensions (W x H x D)
127mm x 42mm x 80.4mm
Weight
1.13kg
Standards and Certifications
Shock
Operating: 3G, 11ms
Non-Operating: 5G, 11ms
Vibration
Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 EC90A-AL system unit
Mounting screws for Mini PCIe module
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC90A-AL1030-E3930-162
    Part Number :
    750-EC90A0-000G
    Description :
    Fanless, Intel Atom® x5-E3930, 1 COM, 2 USB 3.0, 1 USB 2.0, 2 LAN, 1 MiniDP++, 16GB eMMC, 2GB RAM, RoHS
  • Model Name :
    EC90A-AL1030-E3930-164
    Part Number :
    750-EC90A0-100G
    Description :
    Fanless, Intel Atom® x5-E3930, 1 COM, 2 USB 3.0, 1 USB 2.0, 2 LAN, 1 MiniDP++, 16GB eMMC, 4GB RAM, RoHS
  • Model Name :
    EC90A-AL1030-E3940-324
    Part Number :
    750-EC90A0-200G
    Description :
    Fanless, Intel Atom® x5-E3940, 1 COM, 2 USB 3.0, 1 USB 2.0, 2 LAN, 1 MiniDP++, 32GB eMMC, 4GB RAM, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wi-Fi
    Part Number :
    785-WIFIKT
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-106012-000G
    671-106013-000G
    Description :
    60W, 12V/5A, Level 6, RoHS
    60W, 12V/5A (-30 to 70°C), Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC8000-000G
    Description :
    EC90A-AL Wall Mount Kit, RoHS
  • Item Name :
    DIN Rail Mount
    Part Number :
    761-EC90A0-000G
    Description :
    EC90A-AL DIN Rail Mount Kit, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Small Energy Footprint with Powerful Processing Capabilities

DFI EC90A-AL is a mini embedded system built with the Intel Atom® Processor E3900 Series (codenamed Apollo Lake) The powerful computing capacity perfectly supports intense media processing like video transcoding and playback with the Intel® HD Graphics 500, but at very low power consumption. Its high performance with spectacular resolution is the ideal candidate to drive your factory in a wide array, from manufacturing and industrial automation to IIOT sensors and video systems in diverse usage scenarios.

Have the Control in A Hand

The compact EC90A-AL measures only 127mm x 42mm x 80.4mm in size, as mini as a smartphone, reaching an unprecedented high mobility and space adaptability. The fanless design offers an effective cooling solution minimizing particle intrusion, making maintenance further easy with enhanced reliability.

Easy Installation

The EC90A-AL system is especially designed with DIN Rail mount, rendering installation and removal of the device inside the electrical cabinet no longer a huge but a time- and effort-saving work.

Wide Temp Adaptability

The EC90A-AL is built to withstand extreme temperature conditions. Designed with industrial-grade components to ensure long-term robustness at -20°C to 60°C (optional temperature rating), it supports applications in harsh environments.

Flexibility in Multiple Applications

Though compact and lightweight, the EC90A-AL is a leading-edge embedded device with great I/O versatility. It features a variety of interfaces, including dual GbE, 3 USB ports, COM (or digital-IO), and one Mini DP++ that fulfill diverse connectivity requirements.

Wire Free, Faster Speed

The built-in Mini PCIe socket supports LTE, 3G/4G, and Wi-Fi communication modules to help build flexible high-speed connectivity with reduced complexity.
