VC230-BT｜Intel®｜Industrial Computers｜DFI

VC230-BT
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Application-Specific System In-vehicle System VC230-BT
  • Anti-vibration and fanless In-Vehicle computer
  • Supports ignition delay on/off function
  • 1 mSATA, eMMC (optional), microSD (optional)
  • Supports Wi-Fi, 3G, and GPRS application
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -20~60°C
Wide Voltage: 9~36V DC-in
Fanless Design
ECC Memory
DDR3L
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
E-Mark (E13) Certification
DFI Proprietary Motherboard

VC230-BT Related Tags

#Intel#CAN-Bus#Mini PCIe#Fanless Design#Windows#Linux#HDMI#VGA#DDR3L#E-Mark (E13) Certification#RoHS Certification#CE Certification#FCC Certification#In-Vehicle
VC230-BT | Intel Atom E3800 | Bay Trail | Industry-Specific Embedded System | DFI
VC230-BT | Intel Atom E3800 | Bay Trail | Industry-Specific Embedded System | DFI
VC230-BT | Intel Atom E3800 | Bay Trail | Industry-Specific Embedded System | DFI

Related Products:

Select All - Clear
System
Processor
Intel Atom® Processor E3800 Series, BGA 1170
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Memory
4GB/2GB ECC Memory Onboard
Single Channel DDR3L 1333MHz (-E45)
Single Channel DDR3L 1066MHz (-E25)
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Display
1 x VGA
1 x HDMI
HDMI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Dual Displays
VGA + HDMI
Storage
External/Internal
4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS/CAN-Bus)
1 x Full-size Mini PCIe (SATA)
1 x Half-size Mini PCIe (PCIe/USB/LPC)
1 x SIM
1 x microSD (available upon request)
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Status LED
1 x HDD LED

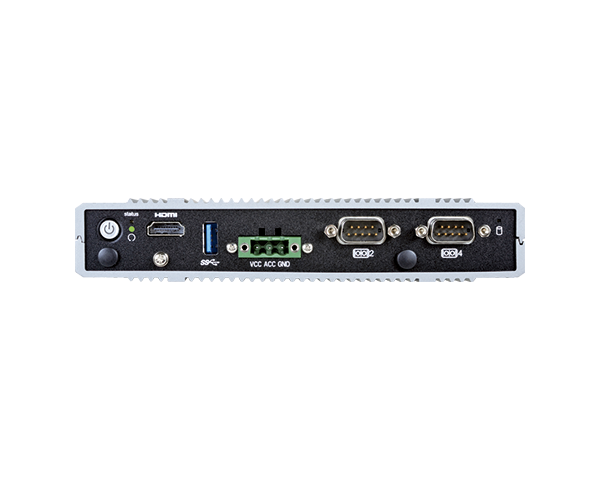

Front I/O
Serial
2 x RS-232/422/485 (DB-9) (one supports 8-bit DIO or CAN-Bus)
USB
1 x USB 3.0 (type A)
Display
1 x HDMI
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole

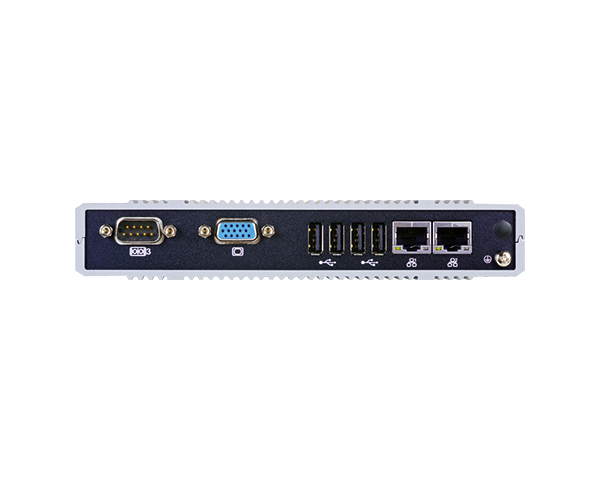

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
USB
4 x USB 2.0 (type A)
Display
1 x VGA
Audio
1 x Line-out (available upon request)
Wi-Fi Antenna
1 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control
Connector
3-pin Terminal Block (VCC/IGN/GND)
OS Support
OS Support
Windows 7, WES 7, Windows 8, WES 8, Windows 8.1
Linux (Distribution available upon request)
Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
Operating Temperature
-20 to 60°C
Storage Temperature
-40 to 85°C
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA/DIN Rail Mount (available upon request)
Dimensions (W x H x D)
180mm x 33mm x 121.2mm (W x H x D)
Weight
800g
Standards and Certifications
Shock
Half Sine Wave 15G, 11ms, 3 Shock Per Axis
Vibration
MIL-STD 810G 514.5C-II
Certifications
CE, FCC Class A, RoHS, E-Mark (E13)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    VC230-BT3051-252     Part Number :
     750-EC7000-E00G     Description :
    Fanless, Intel Atom E3825, 2 LAN, 1 HDMI, 1 VGA, 3 COM, 5 USB, 2GB DDR3L memory down, RoHS
  • Model Name :
    VC230-BT3051-454     Part Number :
     750-EC7000-F00G     Description :
    Fanless, Intel Atom E3845, 2 LAN, 1 HDMI, 1 VGA, 3 COM, 5 USB, 4GB DDR3L memory down, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    64GB mSATA     Part Number :
     785-MS64GMF     Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA     Part Number :
     785-MS32GMF     Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA     Part Number :
     785-MS16GMF     Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA     Part Number :
     785-MS08GMF     Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G     Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    60W Power Adapter     Part Number :
     671-106002-102G
    671-106009-000G     Description :
    60W, 12V/5A
    60W, 19V/3.15A
  • Item Name :
    Wall Mount     Part Number :
     761-EC7000-000G     Description :
    VC230-BT Wall Mount Kit, RoHS
  • Item Name :
    VESA Mount     Part Number :
     761-EC7000-100G     Description :
    VC230-BT VESA Mount Kit, RoHS
  • Item Name :
    Switch Cable     Part Number :
     A81-006065-016G     Description :
    Power adaptor cable with power ignition switch and Terminal Block 1*3P/5.0mm to system unit, and DC Jack to power adaptor, L=100mm

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

All-inclusive Vehicle System

VC230-BT, a fanless vehicle system, is built on the energy-efficient Intel Atom® E3800 series processors. The system is capable of handling more tasks with its rich I/O and provides more opportunities for future expansion. Equipped with excellent heat dissipation capability as well as shock resistance, it delivers the ability to improve in-vehicle experiences with better reliability in extreme environments.

Real-time Data Synchronization

With multiple built-in Mini PCIe slots that support 3G/4G, Wi-Fi, Bluetooth, GPS, and CAN bus protocols, the system is suitable for mobile telematics applications (e.g. fleet management and fatigue driving detection) that require navigation and precise coordination sensors and imaging devices.

Around-the-clock Reliability

The fanless VC230-BT can reliably operate under temperature ranges of -20°C to 60°C, providing stable and high endurance for a wide array of in-vehicle applications even in harsh conditions.

An Abundance of I/O

The VC230-BT has versatile I/O interfaces, including 2 GbE ports, one VGA and HDMI port, 5 USB ports, and 3 COM/DIO ports diverse of applications in the Internet of Vehicles (IoV).

Voltage Surge Protection

It supports a wide-voltage power input with 9~36V DC and in-vehicle power management with delay power-on and power-off to ensure usability and operation safety.

Certified Shock Protection

The VC230-BT is certified with E13 and MIL-STD-810G shock protection, making it a robust system especially for developing smart and connected vehicles.
