BPC420-BW|Intel®|Industrial Panel PCs & Displays|DFI

BPC420-BW
Home Industrial Panel PCs & Displays Bar Type Panel PC BPC420-BW
  • 42" 1920x480 Bar Type Intel Pentium®/Celeron® Panel PC
  • 700/1000 nits brightness
  • Dual display outputs: VGA + DP++
  • VESA mount (400x200)
  • Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
  • 15-Year CPU Life Cycle Support Until Q1' 30 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Low Power Consumption
Fanless Design
IP65 Front Panel Protection
DP
High Brightness
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

BPC420-BW Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#IP65 Front Panel Protection#Windows#Linux#VGA#High Brightness#DDR3L#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification
BPC420-BW 42" Bar Type Panel PC
BPC420-BW 42" Bar Type Panel PC
BPC420-BW 42" Bar Type Panel PC
System
Processor
Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Memory
One 204-pin SODIMM up to 8GB
(4GB DDR3L memory by default)
Single Channel DDR3L 1600MHz
BIOS
Insyde SPI 64Mbit
Display and Touch Screen
Display
42" 1920x480 TFT LCD Panel
Brightness
700 cd/m² (1500 cd/m² available upon request)
Contrast
4000:1
Backlight Lifetime
50,000 hours
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x VGA
1 x DP++
VGA: resolution up to 2560X1600 @ 60Hz
DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
Single Display
VGA + DP++
Storage
External/Internal
1 x Full-size Mini PCIe (mSATA)
1 x SATA-DOM (available upon request)
Expansion
Interface
1 x Half-size Mini PCIe (PCIe/USB)
1 x Full-size mSATA (USB/SATA)
1 x SIM (available upon request)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
2 x Intel® I211AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED

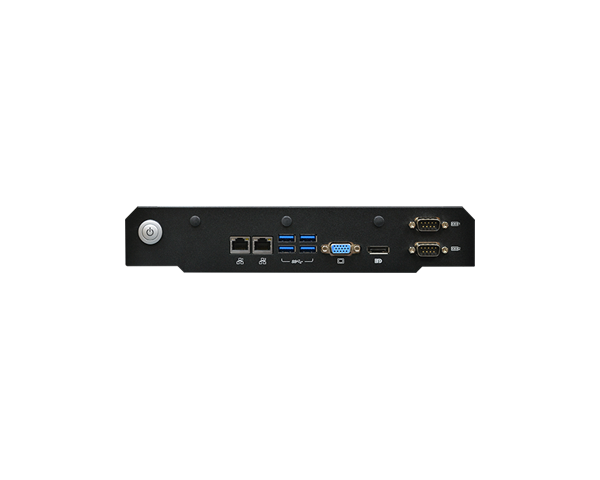

Bottom I/O
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
Serial
2 x RS-232 (DB-9)
USB
4 x USB 3.0 (type A)
Display
1 x VGA
1 x DP++
Audio
Speaker 2W+2W (available upon request)
Buttons
1 x Power Button
Antenna Connectors
3 x Antenna Hole for Wi-Fi or Cell Module
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
AC Input 12V
AC Input 9V-36V (available upon request)

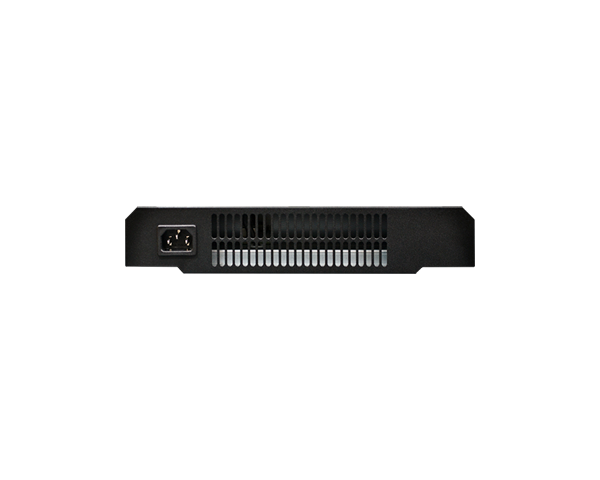

Connector
C14 Power Inlet
OS Support
OS Support
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise (32/64-bit)
Linux
Environment
Operating Temperature
-10 to 50°C
Storage Temperature
-10 to 65°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Sheet Metal
IP Rating
IP65 Front Protection Glass (available upon request)
Mounting
VESA Mount
Dimensions (W x H x D)
1085.8 x 311.6 x 78.2 mm
Weight
15kg
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A
Packing List
Packing List
1 BPC420-BW Panel PC
Note: Please choose "BPC420-BW product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BPC420-BWN3710
    Part Number :
    750-BC4200-000G
    Description :
    42" Bar Type Panel PC, Intel® Pentium® N3710, 700 nits, 4GB Memory, 32GB mSATA, RoHS
  • Model Name :
    BPC420-BWN3710
    Part Number :
    750-BC4200-100G
    Description :
    42" Bar Type Panel PC, Intel® Pentium® N3710, 700 nits, 4GB Memory, 32GB mSATA, Speaker 2W+2W, RoHS
  • Model Name :
    BPC420-BWN3710
    Part Number :
    750-BC4200-200G
    Description :
    42" Bar Type Panel PC, Intel® Pentium® N3710, 1500 nits, 4GB Memory, 32GB mSATA, RoHS
  • Model Name :
    BPC420-BWN3710
    Part Number :
    750-BC4200-300G
    Description :
    42" Bar Type Panel PC, Intel® Pentium® N3710, 1500 nits, 4GB Memory, 32GB mSATA, Speaker 2W+2W, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Release from Space Restriction – All-in-One Bar Type Panel PC

Based on Intel Pentium®/Celeron® Processor N3000 series, DFI’s BPC370-BW and BPC420-BW all-in-one bar type panel PCs are equipped with a native masked and high-brightness display with a narrow black bezel, extensive I/O capabilities and anti-dust design. BPC370-BW and BPC420-BW bar type panel PCs completely meet crucial requirements within advertising, public transportation, and commercial buildings applications especially in constrained or atypical-shape spaces.

All-in-One Design Bar Type Panel PC

BPC370-BW and BPC420-BW all-in-one bar type panel PCs need less space with cableless connections, providing more easy-maintenance solutions for versatile applications.

Native Masked LCD

Unlike some products on the market that resize the 16:9 panels, DFI chooses to customized-mask panel to ensure the best quality and performance.

Sunlight Readable Display

Equipped with industrial display panel up to 1,500 nits brightness, BPC370-BW and BPC420-BW can provide brilliant colors and clarity even under brightly lit environments, which allows them to fully support indoor and outdoor applications.

Outstanding Performance in Every Environments

Under outdoor environments, the digital signage is surrounded by dust or moisture. To maintain a 24/7 stable operation, BPC370-BW and BPC420-BW features fanless design and IP65 front protection glass which could prevent the environmental factors from impacting the stability of the equipment.

100% In-house Boards

With in-house production, it is able to ease the control over manufacturing quality and protects from risk of fraud and confidentiality issues. BPC370-BW and BPC420-BW is developed based on 100% in-house DFI‘s industrial motherboard “BW551” series, ensuring high grade by all-in-one design and passes through comprehensive process of quality control.

Perfectly Ideal for Versatile Application

With the OS support, BPC370-BW and BPC420-BW bar type panel PC could perfectly provide no matter if it is vertical or horizontal installation. It offers great flexibility in retail, advertising, public transportation, commercial buildings, quick-service restaurants, and other applications.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
