KS070-AL
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS070-AL
  • 7" 800x480 TFT LCD panel with touch screen
  • Intel Atom® Processor E3900
  • IP65 front panel protection
  • Dual displays: VGA + DP++
  • Rich I/O: 2 LAN, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Fanless Design
IP65 Front Panel Protection
DP
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KS070-AL Embedded Solution Powered by:
AL551

AL551

AL551 3.5" SBC

3.5" SBC, Intel Atom® Processor E3900, 1 DDR3L, 1 x M.2, 1 Mini PCIe, 1 VGA, 1 LVDS, 1 DP++

KS070-AL Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#IP65 Front Panel Protection#Windows#VGA#DP#DDR3L#RoHS Certification#CE Certification#FCC Certification
KS070-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI
KS070-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI
KS070-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
One 204-pin SODIMM up to 8GB (4GB memory by default)
Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Display and Touch Screen
Display
7” 800x480 TFT LCD Panel with Capacitive/Resistive Touch Screen
Brightness
500 cd/m²
Contrast
400:1
Backlight Lifetime
50,000 hours
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x VGA
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Dual Displays
VGA + DP++
Storage
External/Internal
1 x CFast Socket
Expansion
Interface
1 x Full-size Mini PCIe (USB/PCIe)
1 x M.2 2242 B-key (SATA 3.0/USB 2.0/PCIe Gen2 x2)
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
2 x Intel® I211AT PCIe (10/100/1000Mbps)

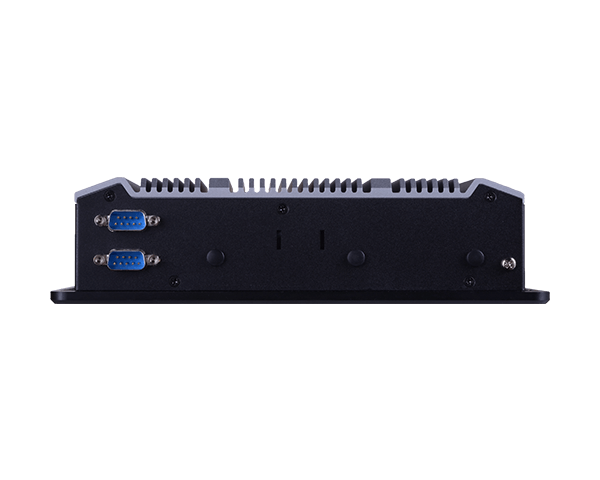

Top I/O
Serial
2 x RS-232/422/485 (DB-9)
Wi-Fi Antenna
3 x Wi-Fi Module Antenna Hole
DIO
1 x 8-bit DIO (DB-9) (available upon request)
Buttons
1 x Power Button

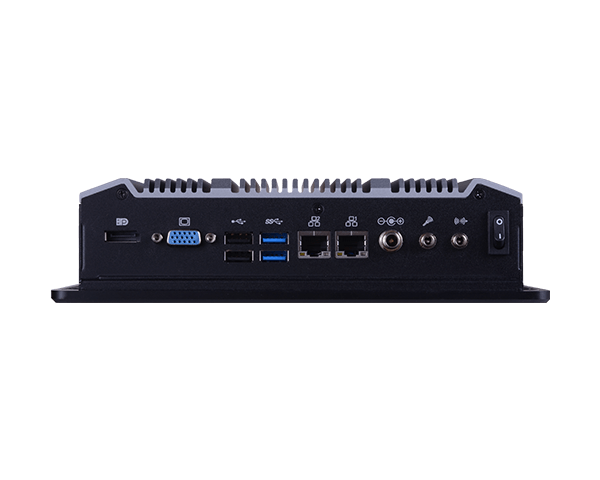

Bottom I/O
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)
Display
1 x VGA
1 x DP++
Audio
1 x Line-out
1 x Mic-in
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V DC
Connector
DC Jack
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Environment
Operating Temperature
-20 to 55°C
Storage Temperature
-30 to 80°C
Relative Humidity
5 to 85% RH (non-condensing)
Mechanism
Construction
Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
Panel/VESA Mount
Dimensions (W x H x D)
230mm x 150mm x 58.3mm
Weight
1.5kg
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 KS070-AL Touch Panel PC
1 Poron foam
1 Chassis Panel Mount Bracket
1 Quick Installation Guide
Note: Please choose "KS070-AL product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS070-ALE39P
    Part Number :
    750-KS0701-000G
    Description :
    7" Panel PC, Intel Atom® x5-E3940, 4GB Memory, Capacitive Touch
  • Model Name :
    KS070-ALN33P
    Part Number :
    750-KS0701-100G
    Description :
    7" Panel PC, Intel® Celeron® Processor N3350, 4GB Memory, Capacitive Touch
  • Model Name :
    KS070-ALN33R
    Part Number :
    750-KS0701-200G
    Description :
    7" Panel PC, Intel® Celeron® Processor N3350, 4GB Memory, Resistive Touch
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wi-Fi
    Part Number :
    761-AP1235-000G
    Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V/5A, Level 6, RoHS
  • Item Name :
    Panel Mount
    Part Number :
    761-KS2020-000G
    Description :
    7" Panel PC Panel Mount Kit, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

All-in-One, One for All - DFI’s Industrial Panel PCs

DFI’s KS070-AL/KS156-AL industrial touch panel PCs based on Intel Atom® Processor E3900 series are equipped with not only processing improvements, but also features friendly interfaces and modern industrial design. With abundant features such as fanless design, IP-65 certified front panel, multi-touch capability, and rich I/O expansion, the panel PCs perfectly meets the crucial requirements within factory automation, transportation, and embedded applications.

IP65 Front Panel Protection

In factory environments, the shop floor is probably surrounded by dust or moisture. These environmental factors could be a tough challenge for the HMI to operate stably. KS070-AL/KS156-AL features an IP65 front panel protection and dust and water resistance, which may impact the progress and the efficiency of work on the production line.

Energy Efficiency & Excellent Performance

Based on Goldmont architecture with 14 nm process technology, the Intel Atom® processor E3900 series empowers the KS070-AL/KS156-AL touch panel pc. Featuring real-time computing and efficient energy consumption, KS070-AL/KS156-AL is the perfect solution for smart energy management, MES system, and remote monitoring.

Reliable Non-stop Operating

Incorrect grounding, inadequate building wiring, or large loads of sharing on the same circuits are common reason that would cause the impact of power fluctuation under crucial factory environment. KS070-AL/KS156-AL is capable of wide range 9~36V DC power input and protecting damage from these issue.

100% In-house Boards

With in-house production, it eases the control= over manufacturing quality and protects from a risk of fraud and confidentiality issues. KS070-AL/KS156-AL is developed based on 100% in-house DFI‘s industrial motherboard “AL551/AL171” series, ensuring lower costs of maintenance by all-in-one design and passes through comprehensive process of quality control.

From Design to Manufacturing, Link by Link

Each procedure from design to manufacture is important and closely linked and inseparable. DFI integrates 100% in-house development and production to maximize efficiency, enhance greater control of production quality, and provide 24/7 global service for wide variety of customers.

Support Gloved Touch

KS070-AL/KS156-AL is implemented by a customized form of gloved-friendly multiple touch technology. Users are able to operate the equipment with working gloves to enhance the efficiency and safety.

Easily Integrates Into Any Devices

To meet the requirements from various market fields, KS070-AL/KS156-AL features customized bezels with different materials and open-frame design. KS070-AL/KS156-AL is built to tailor the solutions for factory automation, transportation, and KIOSK applications.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
