EXT-RS485
Home Industrial Motherboards Peripherals EXT-RS485
  • CHIP: NCT5104
  • PORT: 4 COM (RS232)
  • INTERFACE: LPC
  • DIMENSIONS: 48mm x 30mm (1.89" x 1.18")
  • LPC Extension Modules

Status : MOQ Required QUOTE NOW

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

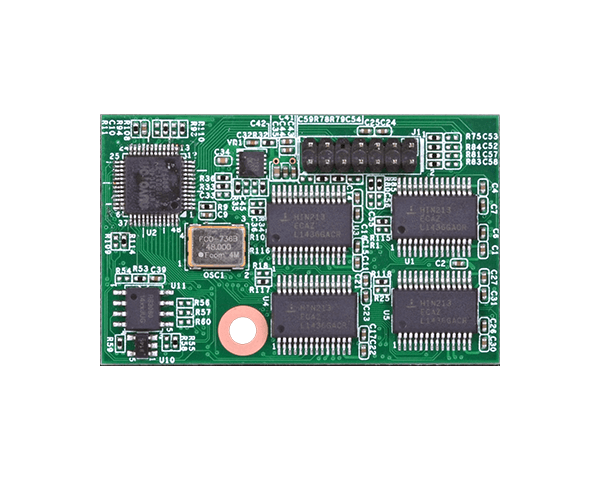

EXT-RS485 LPC Extension Modules

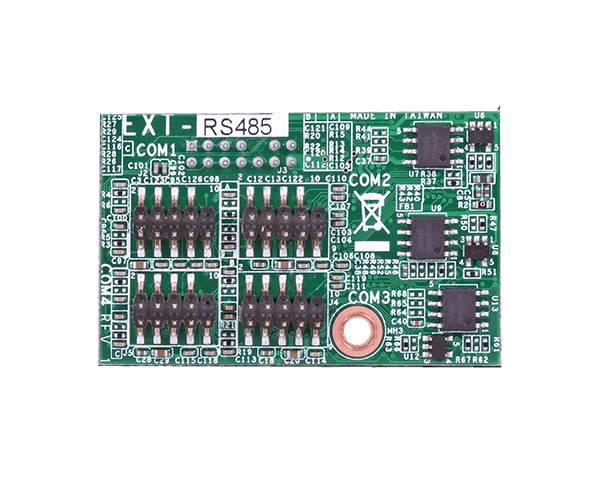

EXT-RS485 LPC Extension Modules

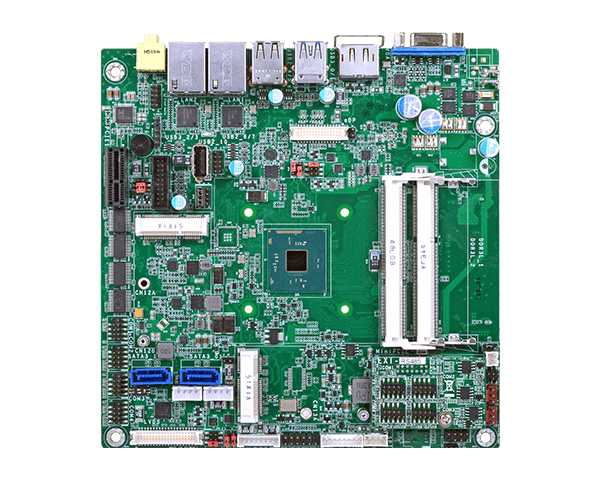

EXT-RS485 LPC Extension Modules
Specifications
Features
CHIP: Main IC: NCT5104
I/O CONNECTORS: 1 LPC connector*, 4 connectors for 4 external RS485 serial ports (2.0mm pitch)
POWER INPUT AND OUTPUT: 3.3V/5V/5VSB via LPC connector
APPLIED MODEL: SD631-C236/Q170, SD630-H110, SD331-C236/Q170, SD331-Q170/H110, SD101/SD103-Q170/H110, SD100-Q170/H110, SU171/SU173, BW171/BW173
TEMPERATURE: Operating: 0°C to 60°C, Storage: -40°C to 85°C
HUMIDITY: 5% to 90%
DIMENSIONS: 48mm x 30mm (1.89" x 1.18")

*If you use a cable to connect your motherboard to the EXT-232/EXT-485 LPC connector, remember that the cable length should be less than 10 cm.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    1 EXT-RS485 module
    Part Number :
    770-EXTRS1-100G
    Description :
  • Model Name :
    4 COM port cable
    Part Number :
    A81-017001-001G
    Description :
    Length: 250mm
