BP-8P4E|Industrial Motherboards|DFI

BP-8P4E
Home Industrial Motherboards PICMG 1.3 BP-8P4E
  • Full Size PICMG 1.3 Backplane
  • Expansion: 1 PCIe x16, 3 PCIe x1, 8 PCI
  • Rich I/O: 4 USB 2.0

Status : Launched QUOTE NOW

PCIe x16
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

BP-8P4E Related Tags

#PCIe x16

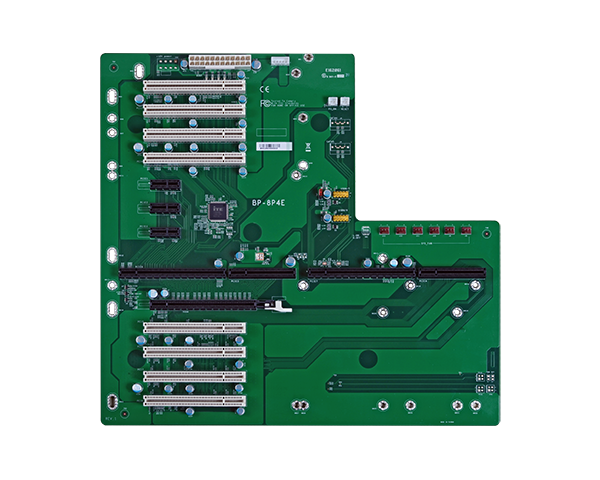

BP-8P4E Full Size PICMG 1.3 Backplane

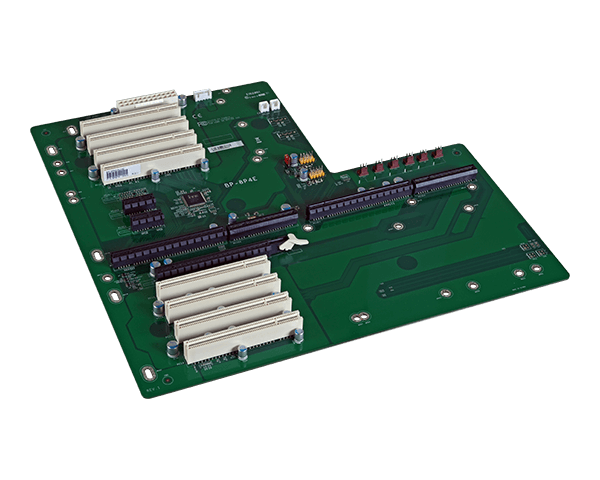

BP-8P4E Full Size PICMG 1.3 Backplane

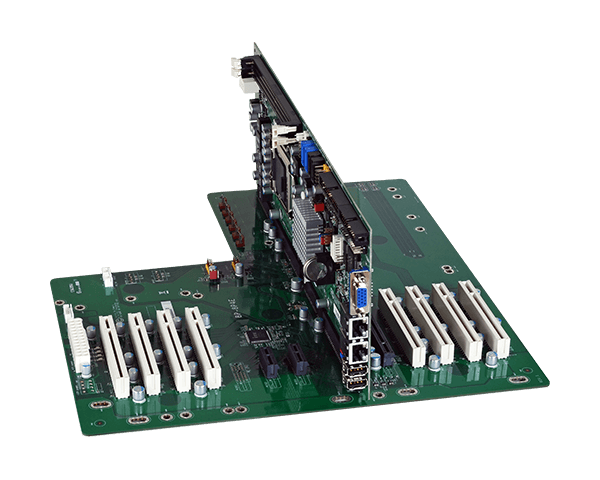

BP-8P4E Full Size PICMG 1.3 Backplane
BP-8P4E Full Size PICMG 1.3 Backplane
Specifications
Features
EXPANSION INTERFACES: 1 PCIe x16 slot;3 PCIe x1 slots;8 PCI slots
POWER: 1 24-pin ATX power connector;1 5-pin power connector
USB: 2 connectors for 4 external USB 2.0/1.1 ports
SYSTEM FANS: 6 system fan connectors
POWER/RESET: 1 power on connector;1 reset connector

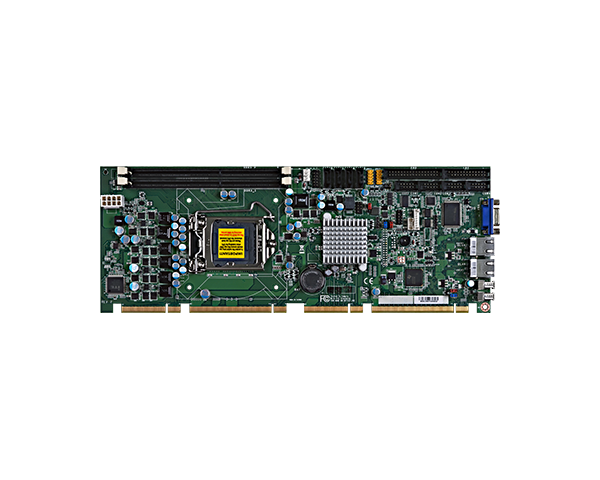

APPLIED MODEL: PIC-Q170/H110, PIC-H61
CHASSIS: Fits a 4U rackmount chassis
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
