  • Intel Atom® Processor E3800 4" SBC
  • 2GB/4GB DDR3L memory down
  • 1 VGA or 1 DVI-I (option)
  • Expansion: 2 Mini PCIe
  • Rich I/O: 4 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
DVI-I
VGA
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
Embedded Solution Powered by BT259 :
EC700-BT3054

EC700-BT3054

EC700-BT3054 Fanless Embedded System

Fanless Embedded System, Intel Atom® E3800, DDR3L, 2 Mini PCIe, 1 DVI-I or 1 VGA

BT259 Related Tags

#Intel#Mini PCIe#Windows#Linux#DVI-I#VGA#DDR3L#RoHS Certification#CE Certification#FCC Certification

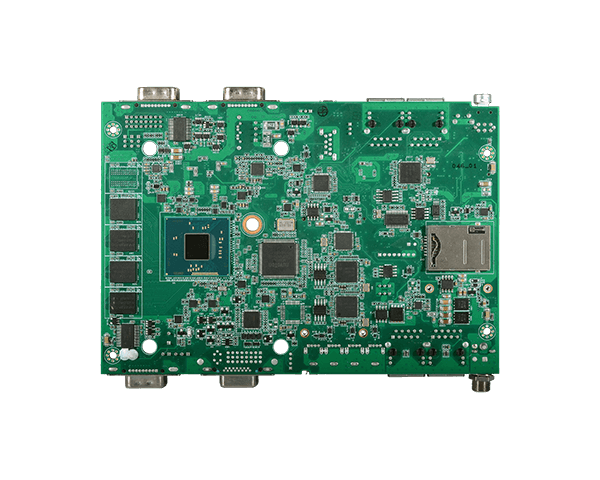

BT259 4" SBC
BT259 4" SBC
BT259 4" SBC
BT259 4" SBC
System
Processor
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
BGA 1170 packaging technology
22nm process technology
Memory
4GB Memory onboard (E3845)
Single Channel DDR3L 1333MHz
2GB Memory onboard (J1900)
Single Channel DDR3L 1066MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics 4600
Display
1 VGA/ 1 DVI-I (available upon request)
DVI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Expansion
Interface
2 x Full-size Mini PCIe ( PCIe, USB, and 3G signals for 3G or GPRS module)
Ethernet
Controller
4 x Intel® I210 PCI Express (10/100/1000Mbps)
LED
Indicators
1 x status LED
1 x HDD LED

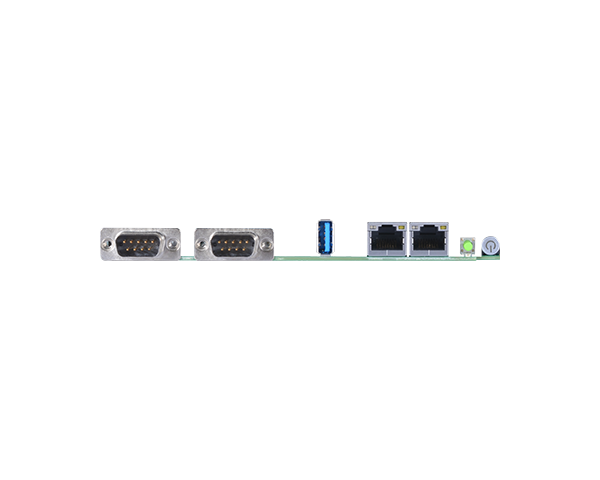

Front I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS232/422/485
USB
1 x USB 3.0 (Type A)
DIO
1 x 8-bit DIO
Buttons
1 x reset button
1 x power button
Rear I/O
Ethernet
2 x GbE (RJ45)
Serial
1 x RS232/422/485
USB
4 x USB 2.0
Display
1 VGA/ 1 DVI-I (available upon request)
Internal I/O
USB
2 x USB 2.0
SATA
1 x SATA 2.0
1 x SATA Power
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
Watchdog timeout programmable via software from 1 to 255 seconds
Security
TPM
Available Upon Request
Power
Type
1 16~24V
Connector
DC-in jack
Consumption
BT259-45-I-B-4: 21.8W with E3845 at 1.91GHz and 4GB DDR3L memory down
OS Support
OS Support
Windows 7, WES 7, Windows 8.1, WES 8
Linux
Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
Temperature
Operating: 0°C~60°C
Storage: -20°C~85°C
Humidity
Operating: 5% to 90%
RH Storage: 5 to 90% RH
Mechanism
Dimensions
4" board
165mm (6.49") x 115mm (4.53")
Height
PCB: 1.6mm
Top Side: 16.5mm
Bottom Side: 2mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 BT259 board 1 Serial ATA data with power cable: A81-002008-000G 1 Heat spreader: A31-030022-200G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT259-45-I-B-4
    Part Number :
    Description :
    Fanless, Intel® Atom™ E3845, 4GB DDR3L SODIMM, 3 COM, 0°C to 60°C
  • Model Name :
    BT259-19-I-B-2
    Part Number :
    Description :
    Fanless, Intel® Celeron® J1900, 2GB DDR3L SODIMM, 3 COM, 0°C to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
  • Item Name :
    Power adapter
    Part Number :
    671-112009-100G
    Description :
    120W, 19V
