BT253|Intel®|Industrial Motherboards|DFI

BT253
Home Industrial Motherboards 4" SBC BT253
  • Intel Atom® Processor E3800 4" SBC
  • 2GB/4GB DDR3L ECC memory down
  • 1 VGA, 1 LVDS, 1 HDMI
  • Expansion: 3 Mini PCIe
  • Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 5 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
Fanless Design
HDMI
VGA
Mini PCIe
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

BT253 Related Tags

#IoT#Intel#ARM#Mini PCIe#Fanless Design#Windows#Linux#HDMI#VGA#DDR3L#RoHS Certification#UL Certification#CE Certification#FCC Certification

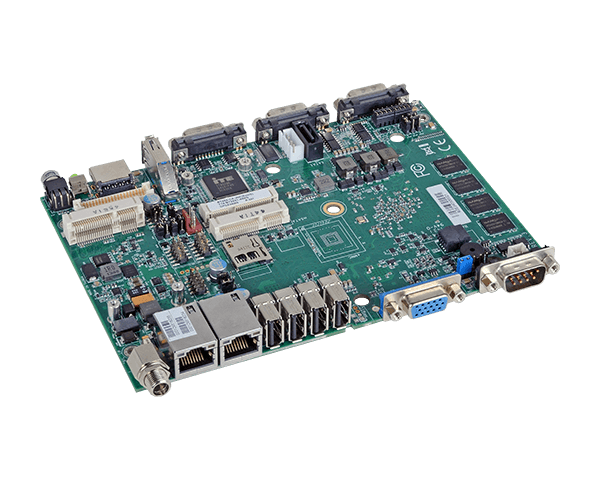

BT253 4" SBC

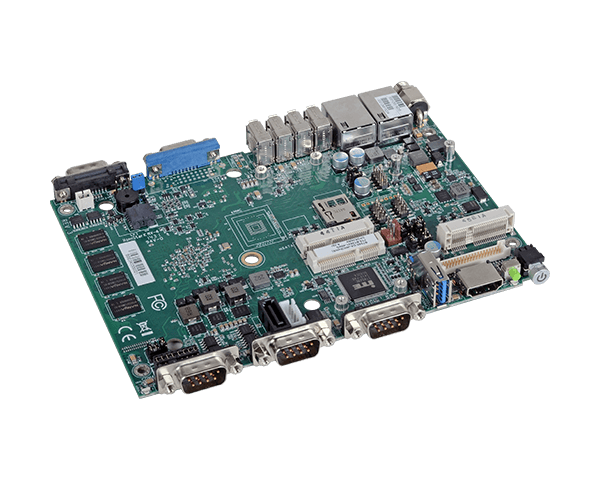

BT253 4" SBC
BT253 4" SBC
System
Processor
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Memory
2GB/4GB DDR3L ECC memory down (-E45/-E25)
2GB/4GB DDR3L memory down (-J00/-N07)
Single channel DDR3L 1333MHz (-E45/-J00/-N07)
Single channel DDR3L 1066MHz (-E25)
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Display
1 x LVDS
1 x HDMI
1 x VGA
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
HDMI, DVI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Expansion
Interface
3 x Mini PCIe
1 x SIM
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I210 PCIe (10/100/1000Mbps)
Front I/O
Serial
3 x RS232/422/485 (DP-9)
USB
1 x USB 3.0
Display
1 x HDMI
Rear I/O
Ethernet
2 x GbE (RJ45)
Serial
1 x RS232/422/485 (DP-9)
USB
4 x USB 2.0
Display
1 x VGA
Internal I/O
Serial
2 x RS232 (2.0mm pitch)
USB
1 x USB 2.0
Display
1 x LVDS
Audio
1 x Mic-in
SATA
1 x SATA 2.0 (up to 3Gb/s)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
Wide Range 16~24V
Connector
DC-in
Consumption
BT253-C4-E45: 18.12W with E3845 at 1.91GHz and 4GB DDR3L ECC memory down
OS Support
OS Support
Windows 10 IoT Enterprise (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Linux
Environment
Temperature
Operating:
0°C to 60°C - Atom, Celeron (Fanless)
0°C to 85°C - Celeron (Fanless)
-20°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
Humidity
5% to 90% RH Storage: 5 to 90% RH
Mechanism
Dimensions
4" board
165mm x 115mm (6.49" x 4.53")
Height
PCB: 1.6mm
Top Side: 14.31mm
Bottom Side: 2mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UL
Packing List
Packing List
1 BT253 board
1 Serial ATA data with power cable: A81-002008-000G
1 Heat spreader: A31-030022-200G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT253-C4-E45
    Part Number :
    770-BT2535-900G
    Description :
    Fanless, Intel® Atom™ E3845, 4GB DDR3L ECC memory down, 6 COM, 0 to 60°C
  • Model Name :
    BT253-C2-N07
    Part Number :
    770-BT2535-700G
    Description :
    Fanless, Intel® Celeron® N2807, 2GB DDR3L ECC memory down, 6 COM, 0 to 60°C
  • Model Name :
    BT253-C4-J00
    Part Number :
    770-BT2535-800G
    Description :
    Fanless, Intel® Celeron® J1900, 4GB DDR3L ECC memory down, 6 COM, 0 to 60°C
  • Model Name :
    BT253-C2-E25
    Part Number :
    770-BT2535-A00G
    Description :
    Fanless, Intel® Atom™ E3825, 2GB DDR3L ECC memory down, 6 COM, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
  • Item Name :
    COM port cable
    Part Number :
    332-753040-000G
    Description :
  • Item Name :
    Power adapter
    Part Number :
    671-112009-100G
    Description :
    120W, 19V
