PT630-NRM｜Intel®｜Industrial Motherboards｜DFI

PT630-NRM
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards ATX PT630-NRM
  • Rich I/O: 2 Intel GbE, 4 COM, 12 USB 2.0
  • Expansion: 1 PCIe x16, 1 PCIe x4, 2 PCIe x1, 3 PCI
  • 1 DVI-I (DVI-D signal), 1 VGA
  • 4 DDR3 DIMM up to 16GB
  • Intel® Core™/Intel® Pentium® with Intel® Q57 PCH
  • 7-Year CPU Life Cycle Support

Status : EOL

COM ESD Protection: Air Gap ±15kv
PCIe x16
VGA
Mini PCIe
DDR3
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

PT630-NRM Related Tags

#Intel#PCIe x16#DVI-I#DVI-D#VGA#DDR3#RoHS Certification

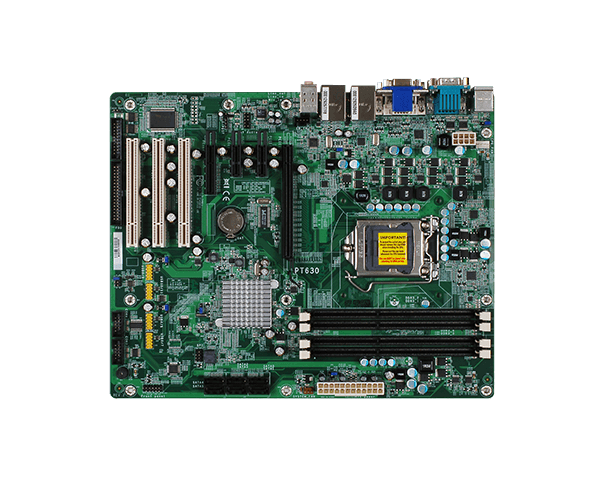

PT630-NRM  ATX
PT630-NRM  ATX

Related Products:

Select All - Clear
System
Processor
Intel® CoreTM i7-860 2.80GHz/8M
Intel® CoreTM i5-750 2.66GHz/8M
Intel® CoreTM i5-660 3.33GHz/4M
Intel® CoreTM i3-540 3.06GHz/4M
Intel® Pentium® G6950 2.80GHz/3M
Chipset
Intel® Q57 PCH
Memory
Four 240-pin DDR3 DIMM up to 16GB
Dual channel DDR3 1333MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
Supports 3D, 2D and video capabilities
Note: Both Intel® CoreTM i7-860 and Cor
Display
1 x DVI-I (DVI-D signal)
1 x VGA
VGA display resolution up to 2048x1536
Expansion
Interface
1 x PCIe x16 slot (Gen 2)
1 x PCIe x4 slot (Gen 1)
2 x PCIe x1 (Gen 1)
3 x PCI
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
1 x Realtek RTL8111DL PCIe (10/100/1000Mbps)
1 x Intel® W82578DM PCIe with iAMT6.0 (10/100/1000Mbps)

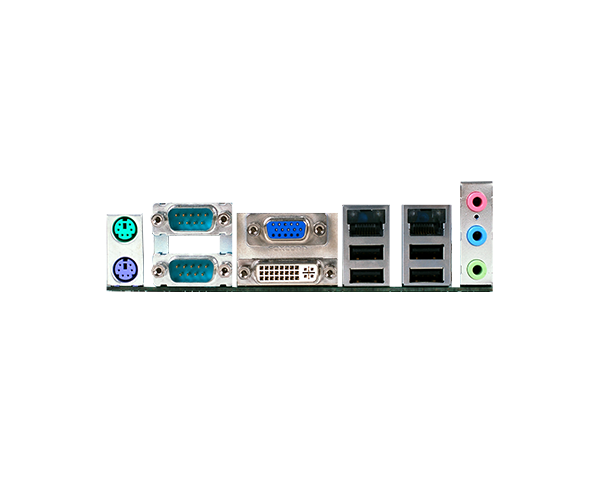

Rear I/O
Ethernet
2 x GbE (RJ45)
Serial
2 x RS232 (DB-9)
USB
4 x USB 2.0
PS/2
2 x PS/2 (mini-DIN-6)
Display
1 x DVI-I (DVI-D signal)
1 x VGA (DB-15)
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
2 x RS232/485
USB
8 x USB 2.0
Audio
1 x Line-out
1 x Mic-in
SATA
6 x SATA 2.0 (up to 3Gb/s)
RAID 0/1/5/10
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
24-pin ATX power
8-pin 12V power
Consumption
64.45 W with i7-860 at 2.80GHz and 2x 1GB DDR3 DIMM
Environment
Temperature
Operating: 0 to 60°C Storage: -20 to 85°C
Humidity
Operating: 10% to 90% RH Storage: 10 to 90% RH
Mechanism
Dimensions
ATX form factor 305mm (12") x 244mm (9.6")
Packing List
Packing List
1 PT630-NRM motherboard
2 Serial ATA data cables
2 Serial ATA power cables
2 USB cables
1 COM port cable (with bracket)
1 I/O shield
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable     Part Number :
     TBD     Description :
  • Item Name :
    COM port cable     Part Number :
     TBD     Description :
  • Item Name :
    Serial ATA data cable     Part Number :
     TBD     Description :
  • Item Name :
    Serial ATA power cable     Part Number :
     TBD     Description :
  • Item Name :
    I/O shield     Part Number :
     TBD     Description :

Related Materials

    Related Products
