SB600-C|Intel®|Industrial Motherboards|DFI

SB600-C
Home Industrial Motherboards ATX SB600-C
  • Rich I/O: 2 Intel GbE, 6 COM, 10 USB 2.0
  • Expansion: 1 PCIe x16, 1 Mini PCIe, 6 PCI
  • 1 DVI-I (DVI-D signal), 1 VGA
  • 4 DDR3 DIMM up to 32GB
  • 3rd/2nd Gen Intel® Core™ with Intel® B65
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
PCIe x16
DVI-I
VGA
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification
KC Certification

SB600-C Related Tags

#Intel#Mini PCIe#PCIe x16#Windows#DVI-I#DVI-D#VGA#DDR3#RoHS Certification#KC Certification

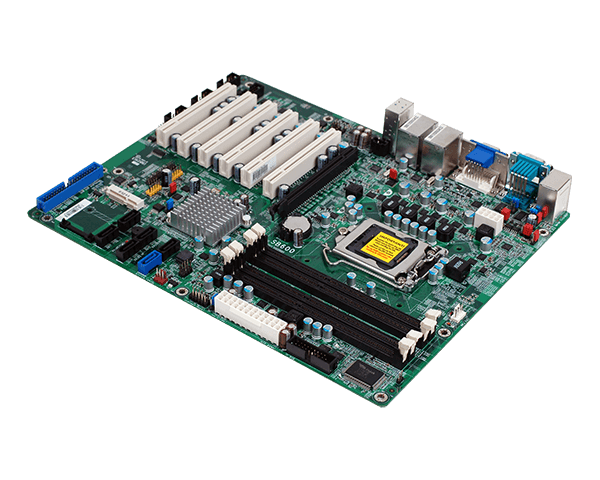

SB600-C ATX

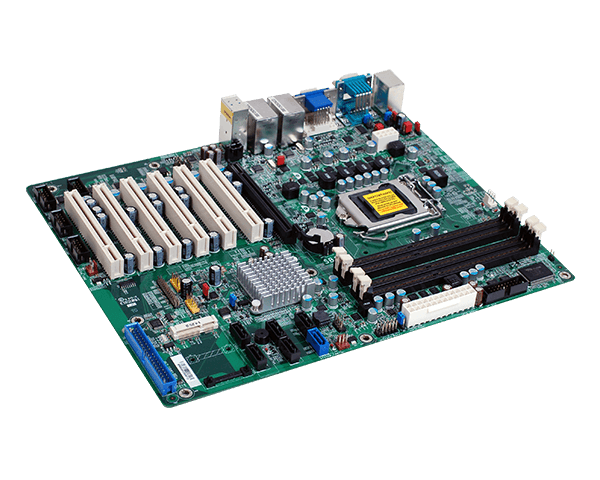

SB600-C ATX

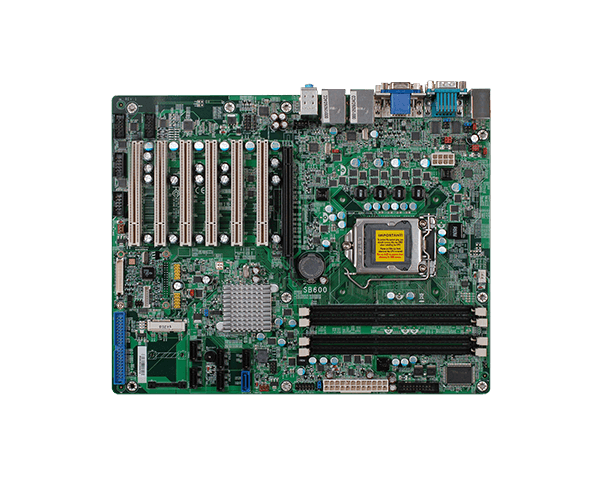

SB600-C ATX
SB600-C ATX
SB600-C ATX
System
Processor
3rd generation Intel® CoreTM processors (22nm process technology)
(Rev. AB0 or later)
Intel® CoreTM i7-3770 (8M Cache, up to 3.9GHz); 77W
Intel® CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W
Intel® CoreTM i3-3220 (3M Cache, 3.3GHz); 55W
Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W
- 2nd generation Intel® CoreTM processors (32nm process technology)
Intel® CoreTM i7-2600 (8M Cache, up to 3.8 GHz); 95W
Intel® CoreTM i5-2400 (6M Cache, up to 3.4 GHz); 95W
Intel® CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W
Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W
Intel® Advanced Vector Extensions (Intel® AVX) Instructions
Intel® Turbo Boost Technology
Chipset
Intel® B65
Memory
Four 240-pin DDR3 DIMM up to 32GB
Dual channel DDR3 1333/1600MHz (3rd generation processors)
Dual channel DDR3 1066/1333MHz (2nd generation processors)
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
Supports 6 Graphics Execution Units (EUs)
Intel® Clear Video Technology
DirectX Video Acceleration (DXVA) support for accelerating video processing
Display
1 x DVI-I (DVI-D signal)
1 x VGA
DVI-I supports up to 1920x1200 @ 60Hz resolution
VGA supports up to 2048x1536 @ 75Hz resolution
Expansion
Interface
1 x PCIe x16 (Gen 3.0 - 3rd generation processors; Gen 2.0 - 2nd generation processors)
1 Mini PCIe (Gen 2)
6 x PCI
Audio
Audio Codec
Realtek ALC886
Ethernet
Controller
2 x Realtek RTL8111DL PCIe (10/100/1000Mbps)

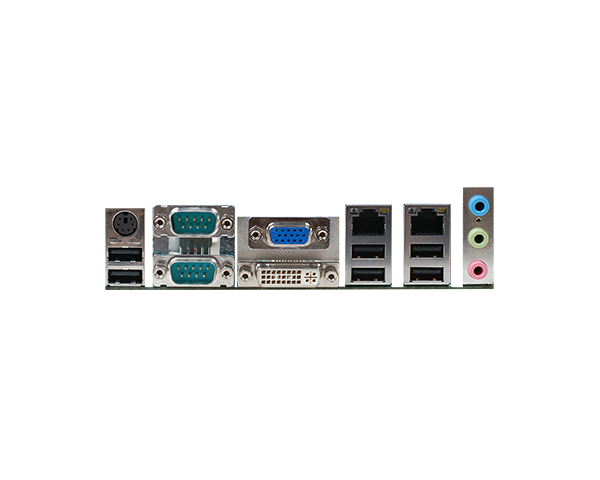

Rear I/O
Ethernet
2 x GbE (RJ45)
Serial
2 x RS232/422/485 (RS232 and/or Power) (DB-9)
USB
6 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x DVI-I (DVI-D signal)
1 x VGA (DB-15)
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
4 x RS232
USB
4 x USB 2.0
Audio
1 x Line-out
1 x Mic-in
SATA
1 x SATA 3.0 (up to 6Gb/s)
5 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
24-pin ATX power
8-pin 12V power
Consumption
100.77 W with i7-2600 at 3.40GHz and 2x 2GB DDR3 DIMM
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C Storage: -20 to 85°C
Humidity
Operating: 10% to 90% RH Storage: 10 to 90% RH
Mechanism
Dimensions
ATX form factor 305mm (12") x 244mm (9.6")
Packing List
Packing List
1 SB600-C motherboard
2 Serial ATA data cables
1 IDE cable
2 USB port cables (with bracket)
2 COM port cables (with bracket)
1 I/O shield
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    SDVO-LVDS daughterboard
    Part Number :
    TBD
    Description :
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    COM port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    IDE cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
  • Item Name :
    PS/2 Keyboard/Mouse cable
    Part Number :
    TBD
    Description :
