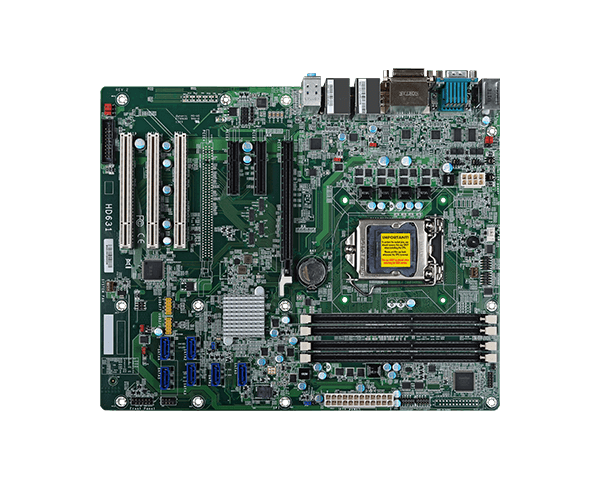

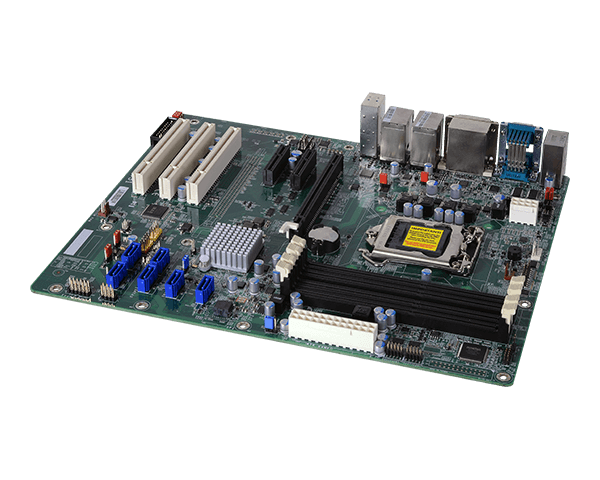

HD631-Q87
Home Industrial Motherboards ATX HD631-Q87
  • 4th Gen Intel® Core™, Intel® Q87 Chipset
  • Dual channel DDR3 1600MHz DIMM up to 32GB
  • 1 HDMI, 1 DVI-I
  • Multiple expansion: 1 PCIe x16, 2 PCIe x4, 3 PCI, 6 SATA 3.0
  • Rich I/O: 2 Intel GbE, 10 USB, 6 COM
  • 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)

Status : EOL

EOL Transition : https://pages.dfi.com/please-take-action-to-transit-your-dfi-hd-series-system

COM ESD Protection: Air Gap ±15kv
PCIe x16
HDMI
DVI-I
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

HD631-Q87 Related Tags

#IoT#Intel#PCIe x16#Windows#HDMI#DVI-I#DDR3#RoHS Certification
ATX, HD631-Q87
ATX, HD631-Q87
ATX, HD631-Q87
ATX, HD631-Q87
System
Processor
4th Generation Intel® Core™ processors, LGA 1150 socket
Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W
Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W
Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W
Chipset
Intel® Q87 Chipset
Memory
Four 240-pin DIMM up to 32GB Dual Channel DDR3 1333/1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.0, DirectX 11.1
Display
1 x DVI-I
1 x HDMI
HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x16
2 x PCIe x4
3 x PCI
Audio
Audio Codec
Realtek ALC886
Ethernet
Controller
1 x Intel® I210 PCIe (10/100/1000Mbps)
1 x Intel® I217LM with iAMT9.0 (10/100/1000Mbps)

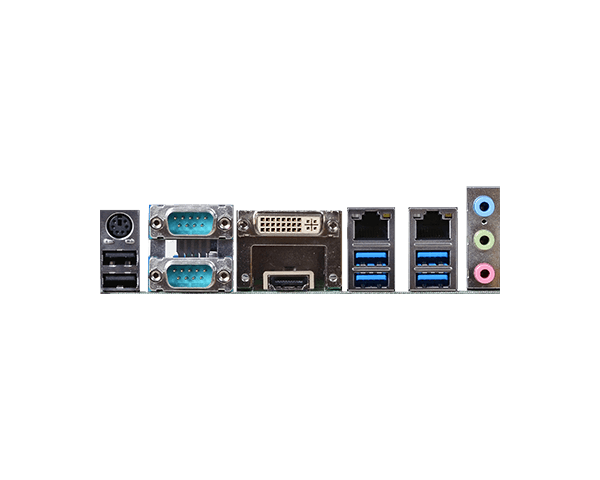

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x DVI-I
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in
Internal I/O
Serial
4 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
59.93W with i7-4770S at 3.10GHz and 4x 2GB DDR3 DIMM
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 10 IoT Enterprise (32/64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
416,787 hrs @ 25°C; 234,346 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
ATX form factor 305mm (12") x 244mm (9.6")
Packing List
Packing List
1 HD631 motherboard
1 Serial ATA data cable
1 I/O shield
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    332-253010-026G
    Description :
    Length: 350/398mm
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    W/Lock, Length: 500mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015004-005G
    Description :
  • Item Name :
    I/O shield
    Part Number :
    A49-HD6310-001G
    Description :

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
