PT330-DRM

Industrial Motherboards microATX PT330-DRM
  • Intel® Core™, Intel® Q57 Chipset
  • Dual channel DDR3 1066MHz DIMM up to 8GB
  • 1 DVI-I, 1 VGA, 1 LVDS
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, 6 SATA 2.0
  • Rich I/O: 2 Intel GbE, 12 USB 2.0, 4 COM
  • 7-Year CPU Life Cycle Support Until Q4' 17 (Based on Intel IOTG Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
PCIe x16
DVI-I
VGA
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

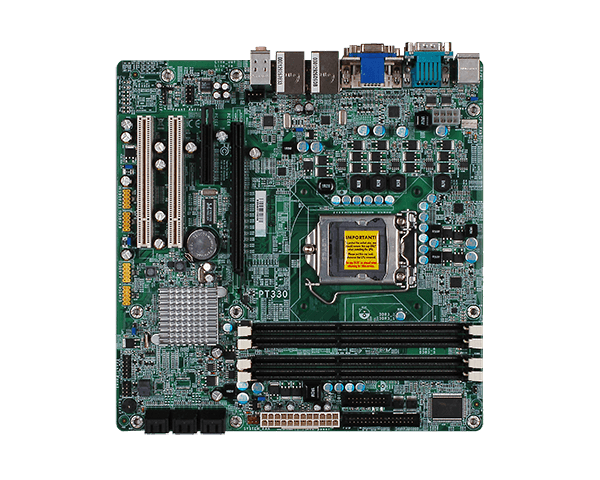

microATX, PT330-DRM
System
Processor
LGA 1156 socket for:
Intel® Core™ i7-860, 2.80GHz, 8M
Intel® Core™ i5-750, 2.66GHz, 8M
Intel® Core™ i5-660, 3.33GHz, 4M
Intel® Core™ i3-540, 3.06GHz, 4M
Intel® Pentium® G6950, 2.80GHz, 3M
Chipset
Intel® Q57 Chipset
Memory
Four 240-pin DIMM up to 16GB Dual Channel DDR3 1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 3.0, DirectX 11.1
Display
1 x DVI-I
1 x VGA
VGA: resolution up to 2048x1536
Expansion
Interface
1 x PCIe x16
1 x PCIe x4
2 x PCI
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
1 x Intel® W82578DM with iAMT6.0 (10/100/1000Mbps)
1 x Realtek RTL8111DL PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232 (RS-232 w/ power) (DB-9)
USB
4 x USB 2.0
PS/2
2 x PS/2
Display
1 x VGA
1 x DVI-I
Audio
1 x Line-out
1 x Mic-in
1 x Line-in
Internal I/O
USB
8 x USB 2.0
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
4 x SATA 2.0 RAID 0/1/5/10
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
63.87 W with i7-860 at 2.80GHz and 2x 2GB DDR3 DIMM
RTC Battery
CR2032 Coin Cell
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
microATX form factor 244mm (9.6") x 244mm (9.6")
Packing List
Packing List
1 PT330-DRM motherboard
2 USB cables
2 Serial ATA data cables
2 Serial ATA power cables
1 I/O shield
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    COM port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
