BT101/BT103｜Intel®｜Industrial Motherboards｜DFI

BT101/BT103
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX BT101/BT103
  • Intel® Atom™ E3800 Mini-ITX
  • 2 DDR3L SODIMM up to 8GB
  • 1 DVI-I, 1 LVDS
  • Expansion: 1 PCIe x1, 1 Mini PCIe, 1 SIM (Optional)
  • Rich I/O: 2 Intel GbE, 4 COM, 1 USB 3.0, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
DVI-D
Mini PCIe
DDR3L
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

BT101/BT103 Related Tags

#Intel#ARM#Mini PCIe#Windows#DVI-I#DDR3L#RoHS Certification#UL Certification#CE Certification#FCC Certification

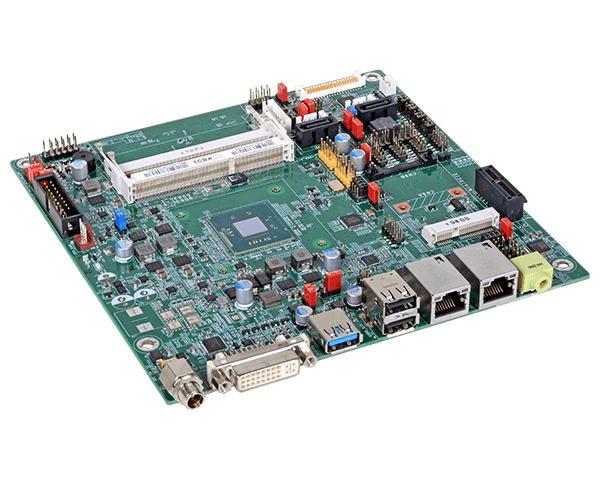

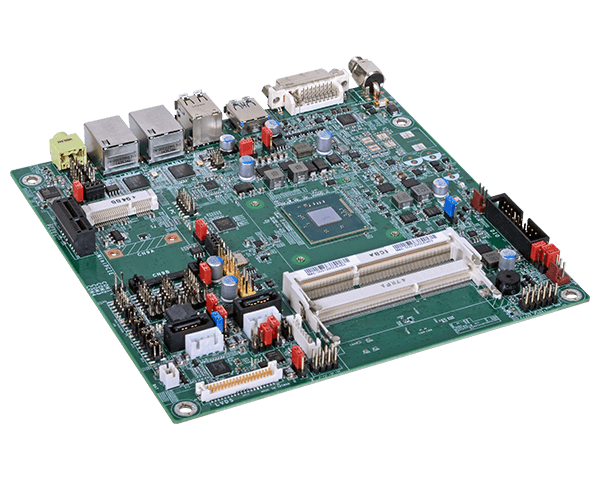

BT101/BT103 Mini-ITX
BT101/BT103 Mini-ITX
BT101/BT103 Mini-ITX
BT101/BT103 Mini-ITX

Related Products:

Select All - Clear
System
Processor
Intel® Atom™ Processor E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
Intel® Atom™ Processor E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel® Atom™ Processor E3826, Dual Core, 1M Cache, 1.46GHz, 7W
Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® Processor J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Memory
Two 204-pin DDR3L SODIMM up to 8GB Dual channel DDR3L 1333/1066MHz
One 204-pin DDR3L SODIMM up to 4GB Single channel DDR3L 1066MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Display
1 x DVI-I
1 x LVDS
DVI-I: 24-bit, resolution up to 1920x1080 @ 60Hz
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x1
1 x Mini PCIe
1 x SIM card
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)

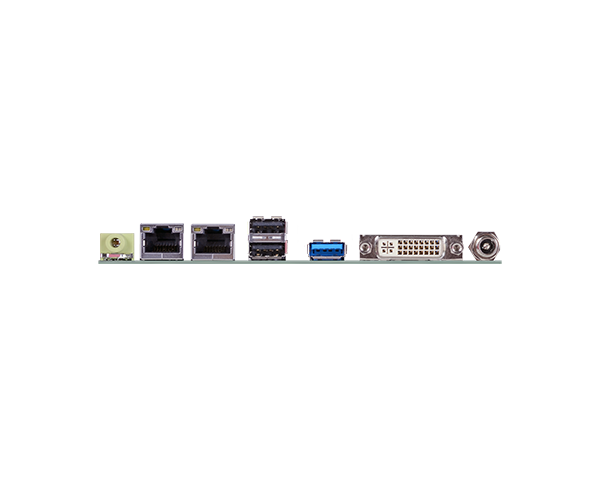

Rear I/O
Ethernet
2 x GbE (RJ45)
USB
2 x USB 2.0
1 x USB 3.0
Display
1 x DVI-I
Audio
1 x Line-out
Internal I/O
Serial
1 x RS232/422/485 (RS232 and/or Power) (2.0mm pitch)
3 x RS232 (2.0mm pitch)
USB
4 x USB 2.0
Display
1 x LVDS
Audio
1 x Line-out
1 x Mic-in
1 x S/PDIF
SATA
2 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
DC-in Jack
Vertical Type Connector (4-pin) (available upon request)
Connector
Single 12V +/-10% DC (BT101)
Wide Range 19~24V (BT103)
Consumption
BT101-BN-E45: 13.20W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM
BT103-BN-E45: 13.68W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
Environment
Temperature
Operating
: 0°C to 60°C - Atom, Celeron (Fanless)
: -20°C to 70°C - Atom (Fanless with air flow)
: -40°C to 85°C - Atom (Fanless with air flow)
Storage: -40°C to 85°C
Humidity
Operating: 5% to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
Mini-ITX form factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 16.15mm
Bottom Side: 3.3mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UL
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT101-TN-E45     Part Number :
     770-BT1011-900G     Description :
    Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, -40 to 85°C
  • Model Name :
    BT101-BN-E15     Part Number :
     770-BT1011-A00G     Description :
    Fanless, Intel® Atom™ E3815, 1 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT101-BN-J00     Part Number :
     770-BT1011-C00G     Description :
    Fanless, Intel® Celeron® J1900, 2 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT101-BN-E26     Part Number :
     770-BT1011-D00G     Description :
    Fanless, Intel® Atom™ E3826, 2 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT101-BN-E45     Part Number :
     770-BT1011-F00G     Description :
    Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT103-BN-J00     Part Number :
     770-BT1031-900G     Description :
    Fanless, Intel® Celeron® J1900, 2 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT103-BN-E15     Part Number :
     770-BT1031-A00G     Description :
    Fanless, Intel® Atom™ E3815, 1 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT103-TN-E45     Part Number :
     770-BT1031-C00G     Description :
    Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, -40 to 85°C
  • Model Name :
    BT103-BN-E45     Part Number :
     770-BT1031-D00G     Description :
    Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, 0 to 60°C
  • Model Name :
    BT103-BN-E25     Part Number :
     770-BT1031-E00G     Description :
    Fanless, Intel® Atom™ E3825, 2 DDR3L SODIMM, 4 COM, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    I/O Shield     Part Number :
     A49-BT1011-000G     Description :
  • Item Name :
    Power adapter     Part Number :
     671-110002-100G
    671-110003-100G     Description :
    100W, 12V, Level 6 (BT101)
    120W, 19V, Level 6 (BT103)
  • Item Name :
    Serial ATA data with power cable     Part Number :
     A81-002013-000G     Description :
  • Item Name :
    COM port cable     Part Number :
     A81-015011-001G     Description :
  • Item Name :
    USB port cable     Part Number :
     332-253010-026G     Description :
