TPC121|Intel®|Industrial Panel PCs & Displays|DFI

TPC121
Home Industrial Panel PCs & Displays Expandable Touch Panel PC TPC121
  • 12.1" 1024x768 TFT LCD Panel with Touch Screen
  • 3rd/2nd Gen Intel® Core™ with Intel® H61
  • 2 USB 2.0 at the front panel for easy access
  • 5 function keys at the front panel
  • Built-in antenna for optional Wi-Fi
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

IP65 Front Panel Protection
HDMI
Mini PCIe
Multiple Expansion
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

TPC121 Related Tags

#TPC#Intel#Mini PCIe#IP65 Front Panel Protection#Windows#Linux#HDMI#DVI-I#Multiple Expansion#DDR3#RoHS Certification#CE Certification#FCC Certification#High-Performance

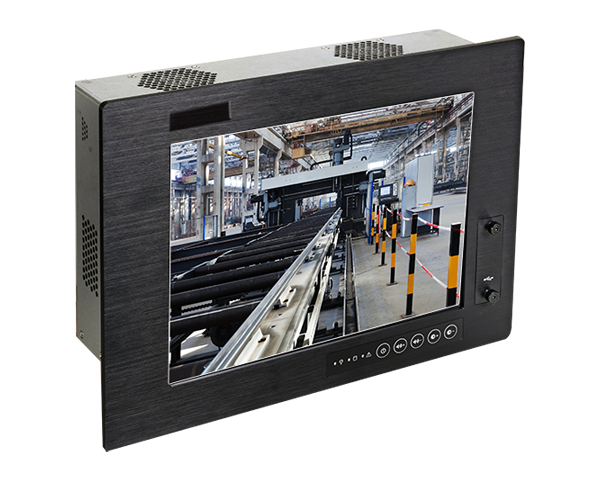

TPC121 12.1" Heavy Industrial Touch Panel PC
TPC121 12.1" Heavy Industrial Touch Panel PC
System
Processor
3rd generation Intel® Core™ processors
2nd generation Intel® Core™ processors
Chipset
Intel H61® Express Chipset
Memory
Two SODIMM up to 16GB
DDR3 1333/1600MHz (3rd gen processors)
DDR3 1066/1333MHz (2nd gen processors)
Display and Touch Screen
Display
12.1" 1024x768 TFT LCD Panel with 5-wire Resistive Touch Screen
Brightness
500 cd/m²
Backlight Lifetime
30,000 MTBF LED Backlight
Graphics
Controller
Intel® HD Graphics
Display
1 x HDMI
1 x DVI-I
HDMI, DVI-I: resolution up to 1920x1200
Storage
External/Internal
1 x 2.5" SATA 2.0 Drive Bay
1 x Optical Drive Bay (available upon request)
Expansion
Interface
1 x PCIe x1 and 1 x PCI (X100-3PE2)
2 x PCI (X100-2P1M)
2 x Mini PCIe
- Supports half size Mini PCIe card (PCIe/USB on board)
- Supports full size Mini PCIe card (PCIe on X100-3PE2)
Audio
Audio Codec
Realtek ALC886 5.1-channel
2 x 3W Speaker (left and right sides)
Ethernet
Controller
1 x Intel® W82579LM PCIe (10/100/1000Mbps)
1 x Intel® W82574L PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
1 x Alarm LED
Front I/O
USB
2 x USB 2.0
Buttons
5 x Function Keys (power, volume, and brightness)
Wi-Fi Antenna
1 x Wi-Fi Module Antenna Hole

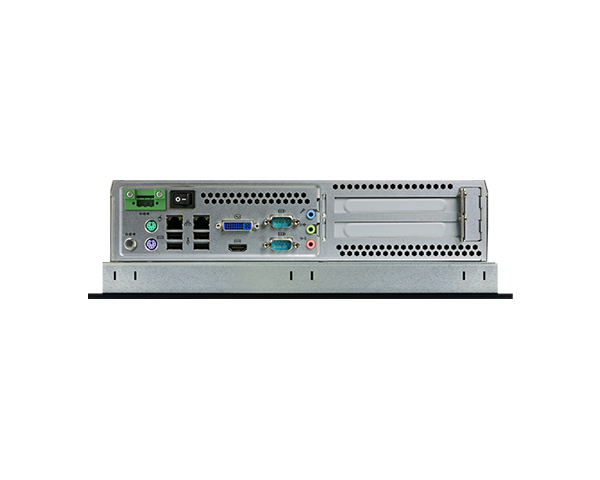

Bottom I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
4 x USB 2.0
Display
1 x DVI-I
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in
PS/2
1 x PS/2 (keyboard)
1 x PS/2 (mouse)
Buttons
1 x Power Switch
Cooling
Fan
Smart Fan System Control (suitable for quiet environments)
Power
Type
Standard: 19~24V DC-in Jack
Option: 24V DC-in 3-pole Terminal Block
OS Support
OS Support
Windows XP, WES 2009, POSReady 2009, Windows 7, WES 7
Linux (Distribution available upon request)
Environment
Operating Temperature
-10°C ~ 50°C
Storage Temperature
-20°C ~ 60°C
Relative Humidity
90% RH at 50°C, 1 week
Mechanism
Construction
Aluminum Front Bezel
Rear Panel: Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
VESA Mount (75x75 and 100x100)
Wall Mount Bracket
Panel Mount (mounting clamp)
Dimensions (W x H x D)
345mm x 265mm x 103mm (W x H x D)
Weight
6.5 kg
Standards and Certifications
Shock
Operating: 3G Peak Acceleration (11 msec. duration)
Non-operating: 10G Peak Acceleration (11 msec. duration)
IEC 68-2-27 Compliant
Vibration
Operating: 1G, 5~500Hz
Non-operating: 1.5G, 5~25Hz
IEC 68-2-64 Compliant
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 TPC121 Touch Panel PC
1 120W power adapter (only for TPC-1212TR-SBDCR-R10, TPC1212TR-SBDCR-R11)
1 Quick Installation Guide
Note: Please choose "TPC121 product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    TPC1212TR-SBDCMR-R11
    Part Number :
    750-TPC121-610G
    Description :
    12.1" Industrial Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, terminal block DC input, 2 PCI, 2 Mini PCIe
  • Model Name :
    TPC1212TR-SBDCR-R11
    Part Number :
    750-TPC121-600G
    Description :
    12.1" Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, DC input, 2 PCI, 2 Mini PCIe
  • Model Name :
    TPC1212TR-SBDCMR-R10
    Part Number :
    750-TPC121-010G
    Description :
    12.1" Industrial Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, terminal block DC input, 1 PCIe x1, 1 PCI, 2 Mini PCIe
  • Model Name :
    TPC1212TR-SBDCR-R10
    Part Number :
    750-TPC121-000G
    Description :
    12.1" Industrial Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, DC input, 1 PCIe x1, 1 PCI, 2 Mini PCIe
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU
    Part Number :
    785-CP1155DL
    Description :
    CPU, LGA 1155, Long-term support, RoHS
  • Item Name :
    CD-RW ROM
    Part Number :
    785-STCDRW
    Description :
    Slim Type SATA CD-RW/DVD ROM
  • Item Name :
    Panel Mount
    Part Number :
    785-121PMK
    Description :
    12.1" Panel PC Panel Mount kit
  • Item Name :
    Wall Mount
    Part Number :
    785-PPCWMK
    Description :
    Standard Panel PC Wall Mount kit
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi kit, RoHS
  • Item Name :
    320GB HDD
    Part Number :
    785-H25320G
    Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    500GB HDD
    Part Number :
    785-H25500G
    Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    1GB DDR3
    Part Number :
    785-RSOD31G
    Description :
    SODIMM, DDR3 Module, 1GB, RoHS
  • Item Name :
    2GB DDR3L
    Part Number :
    785-RSOD32G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 2GB, RoHS
  • Item Name :
    4GB DDR3L
    Part Number :
    785-RSOD34G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS
  • Item Name :
    8GB DDR3L
    Part Number :
    785-RSOD38G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS
  • Item Name :
    DVD-ROM
    Part Number :
    785-STDDRW
    Description :
    Slim Type SATA DVD-RW/DVD ROM

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
