HD332-H81|Intel®|Industrial Motherboards|DFI

HD332-H81
Home Industrial Motherboards microATX HD332-H81
  • 4th Gen Intel® Core™
  • Dual channel DDR3 1600MHz DIMM up to 16GB
  • 1 VGA, 1 VGA/DVI-I
  • Multiple expansion: 1 PCIe x16, 2 PCIe x1, 1 PCI, 4 SATA
  • Rich I/O: 2 Intel GbE, 11 USB, 10 COM
  • 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)

Status : EOL

EOL Transition : https://pages.dfi.com/please-take-action-to-transit-your-dfi-hd-series-system

COM ESD Protection: Air Gap ±15kv
PCIe x16
DVI-D
VGA
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

HD332-H81 Related Tags

#Intel#Mini PCIe#PCIe x16#Windows#DVI-I#DVI-D#VGA#DDR3#RoHS Certification

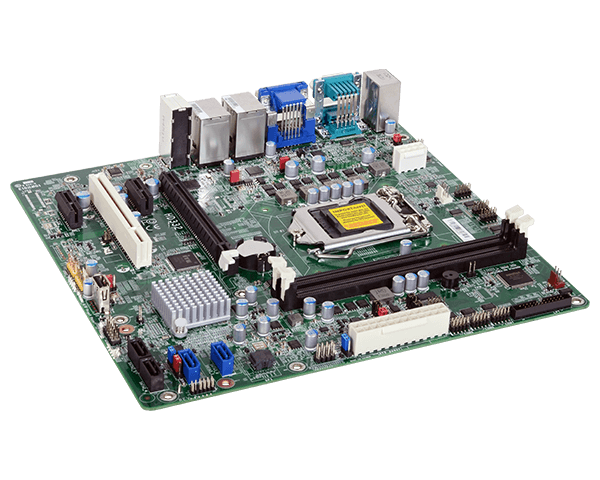

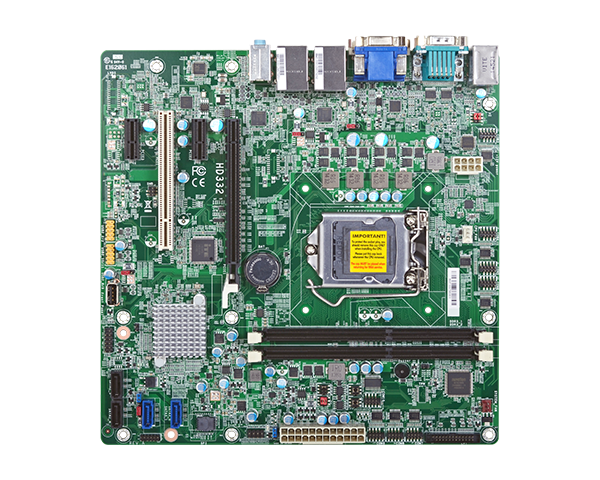

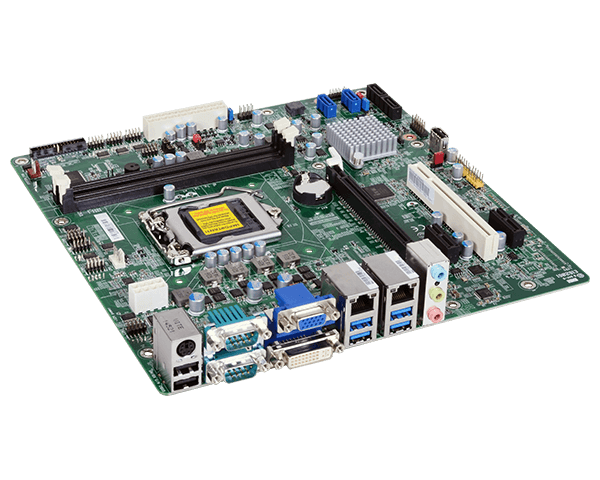

microATX, HD332-H81
microATX, HD332-H81
microATX, HD332-H81
microATX, HD332-H81
System
Processor
4th Generation Intel® Core™ processors, LGA 1150 socket
Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W
Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W
Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W
Chipset
Intel® H81 Chipset
Memory
Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.0, DirectX 11.1
Display
1 x VGA
1 x VGA/DVI-I
DVI-D: resolution up to 1920x1200 @ 60Hz
VGA: 24-bit resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x16 (Gen 2)
2 x PCIe x1 (Gen 2)
1 x PCI
1 x Mini PCIe
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I210 PCIe (10/100/1000Mbps) or
2 x Intel® 82574L (10/100/1000Mbps)

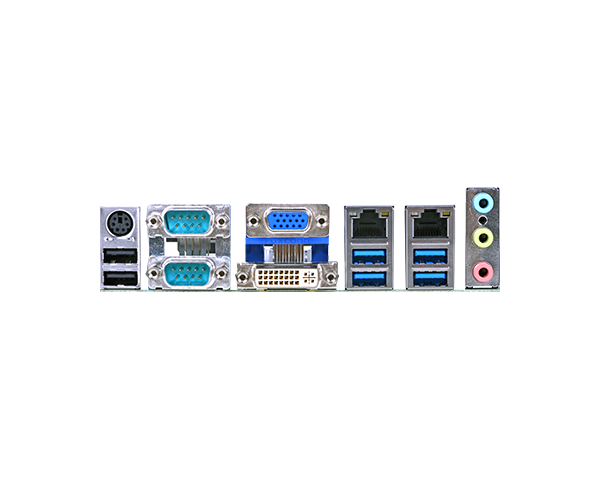

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2
Display
2 x VGA or
1 x VGA and 1 x DVI-I
Audio
1 x Line-out
1 x Mic-in
1 x Line-in
Internal I/O
Serial
1 x RS-232/RS422/485
7 x RS-232 (2.0mm pitch)
USB
6 x USB 2.0
SATA
2 x SATA 3.0
2 x SATA 2.0
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
HD332-H81X (VGA+DVI/VGA): 69.10W with i7-4770S at 3.10GHz and 2 x 4GB DDR3 DIMM
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
421,271 hrs @ 25°C; 241,503 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground B
Mechanism
Dimensions
microATX form factor 244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm
Packing List
Packing List
1 HD332 motherboard
1 Serial ATA data cable: 332-553001-005G
1 I/O shield: A49-HD3320-010G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    HD332-H81X
    Part Number :
    770-HD3321-000G
    Description :
    Active, 2 DIMM DDR3, 2 VGA, 2 LAN, 9 RS232, 1 RS232/422/485, 0 to 60°C
  • Model Name :
    HD332-H81X
    Part Number :
    770-HD3321-100G
    Description :
    Active, 2 DIMM DDR3, 1 VGA, 1 DVI-D, 2 LAN, 9 RS232, 1 RS232/422/485, 0 to 60°C
  • Model Name :
    HD332-H81B
    Part Number :
    770-HD3321-200G
    Description :
    Active, 2 DIMM DDR3, 2 VGA, 1 LAN, 2 RS232, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    332-253010-026G
    Description :
  • Item Name :
    COM port cable
    Part Number :
    A81-015004-005G
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
  • Item Name :
    I/O shield
    Part Number :
    A49-HD3320-010G
    Description :
  • Item Name :
    Thermal solution
    Part Number :
    A71-101158-000G
    Description :
    For 65W, Height: 74.47mm
