COM101-BAT

System-On-Modules Carrier Board COM101-BAT
  • COM Express® R2.1, Pin-out Type 6
  • Supports Compact/Basic modules
  • Multiple displays: 1 DP, 1 LVDS, 1 VGA
  • Rich I/O: 1 GbE, 6 USB
  • Mini-ITX form factor

Status : EOL

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification

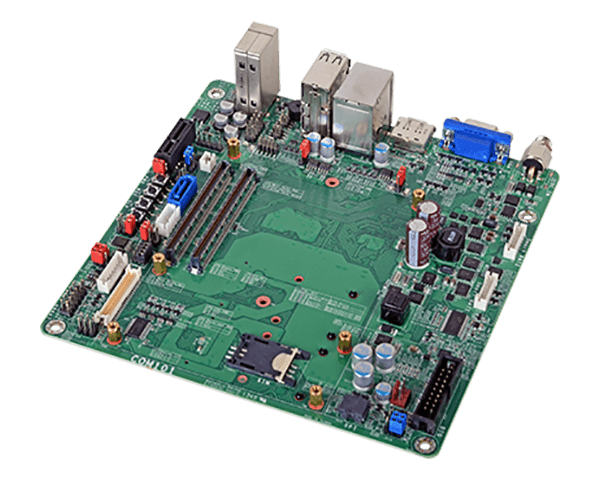

COM Express Basic/Compact, COM101-BAT

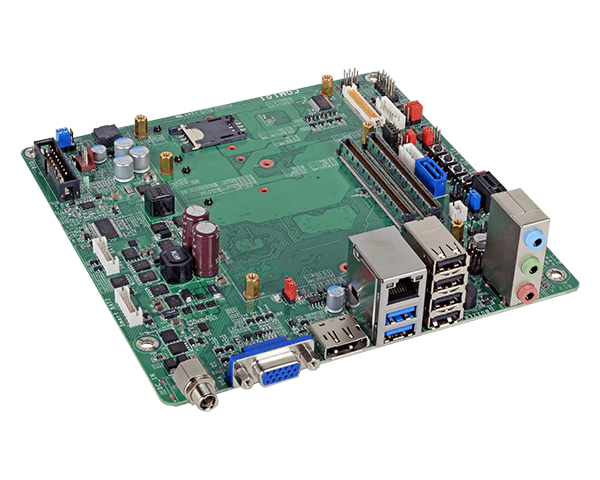

COM Express Basic/Compact, COM101-BAT

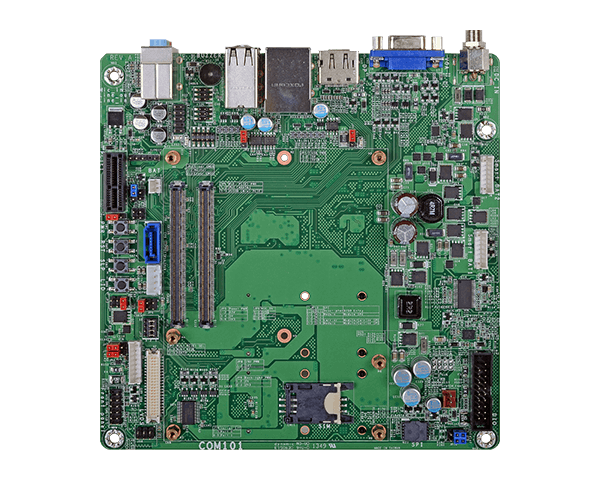

COM Express Basic/Compact, COM101-BAT

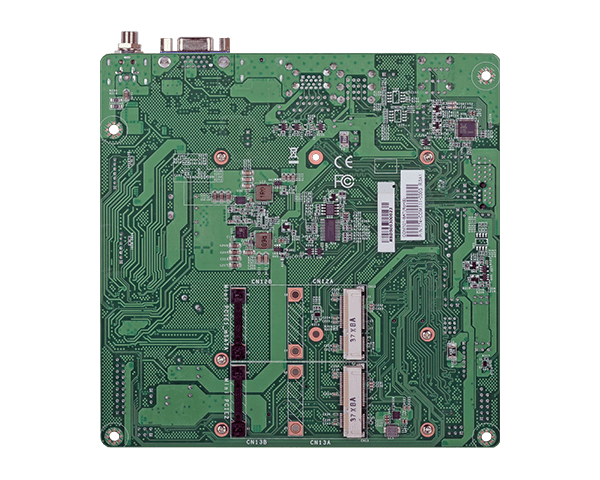

COM Express Basic/Compact, COM101-BAT
COM Express Basic/Compact, COM101-BAT
Graphics
Display
1 x DP
1 x VGA
1 x LVDS
Expansion
Interface
1 x PCIe x1
2 x Mini PCIe
1 x SIM Card Socket
Audio
Audio Codec
Realtek ALC886

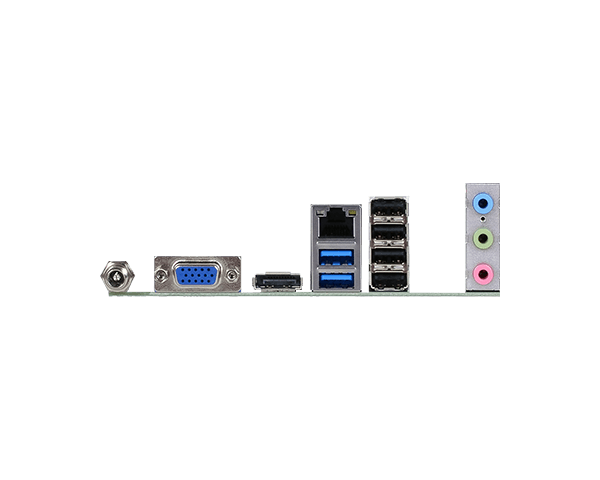

Rear I/O
Ethernet
1 x GbE (RJ-45)
USB
2 x USB 3.0
4 x USB 2.0
Display
1 x DP
1 x VGA
Internal I/O
Serial
2 x Serial Interface Connector (TX/RX)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA power connector
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Supply
19V DC-in jack
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7")
Compliance
PICMG COM Express® R2.1, Type 6
Packing List
Packing List
1 COM100-B board
1 SATA data with power cable
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    SATA data with power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Power adapter (120W, 19V, Level 6)
    Part Number :
    671-110003-100G
    Description :
