FS051
Home Industrial Motherboards 2.5" Pico-ITX FS051
  • NXP i.MX6 Processor 2.5" Pico-ITX
  • DDR3L SDRAM memory down , up to 4GB.
  • Dual independent displays: HDMI + LVDS
  • Expansion: 1 Mini PCIe, 1 SD, 1 SIM (Optional)
  • Rich I/O: 1 GbE, 3 COM, 5 USB 2.0, 1 CANBus
  • 15-Year CPU Life Cycle Support Until Q4' 32 (Based on NXP Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
HDMI
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

FS051 Related Tags

#CAN-Bus#ARM#Mini PCIe#Android#HDMI#DDR3L#RoHS Certification#CE Certification#FCC Certification

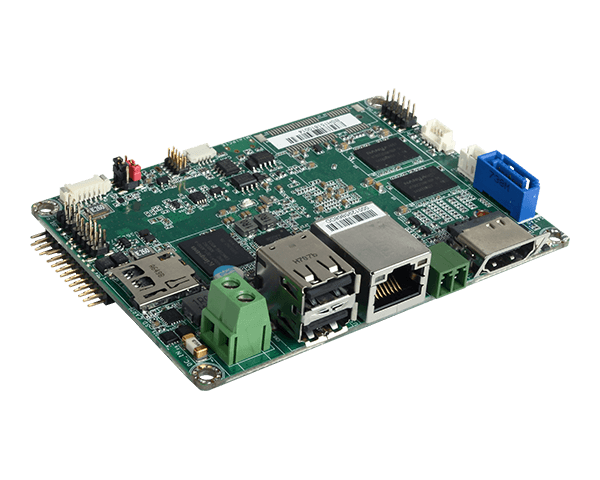

FS051 2.5" Pico-ITX

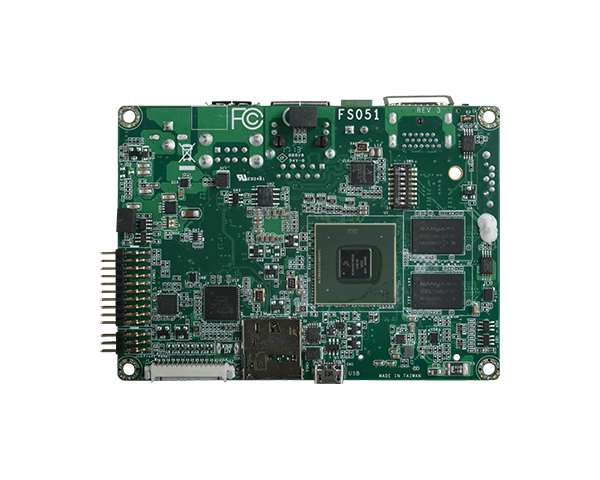

FS051 2.5" Pico-ITX

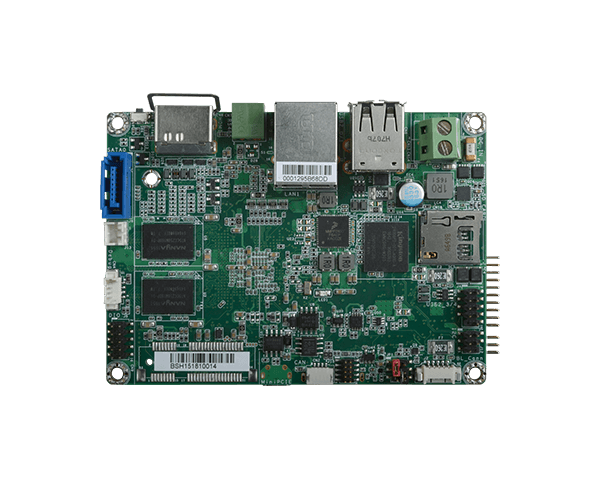

FS051 2.5" Pico-ITX

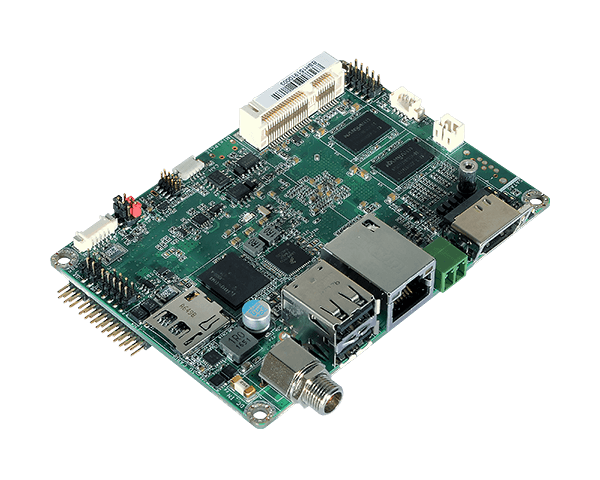

FS051 2.5" Pico-ITX
System
Processor
NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz
NXP i.MX6 Cortex-A9 Quad, 1.0 GHz
Memory
1GB/2GB SDRAM Memory Down (default), 4GB (available upon request)
Single Channel DDR3L 1600MHz/866MHz
Flash
4MB NOR Flash
Graphics
Display
1 x HDMI
1 x LVDS
HDMI: resolution up to 1920x1080 @ 60Hz
LVDS: single channel, resolution up to 1366x768 @ 60Hz
Single/Dual Displays
Yocto: HDMI or LVDS (Default)
Android: HDMI + LVDS (available upon request)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
1 x SIM (Option)
Ethernet
Controller
1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps)
Rear I/O
Ethernet
1 x GbE (RJ-45)
Serial
1 x RS-485 (2-wire)
USB
2 x USB 2.0
1 x USB 2.0 OTG Port
Display
1 x HDMI
Buttons
1 x Power Button
I/O
eMMC
Supports 8GB, 16GB and 32GB eMMC onboard
Internal I/O
Serial
1 x RS-232 (4-wire)
1 x RS-232/422/485 (8-wire)
USB
2 x USB 2.0
Display
1 x LVDS LCD Panel Connector
SATA
1 x SATA 2.0 (up to 3Gb/s) (Quad processor only)
DIO
1 x 8-bit DIO
SD
1 x Micro SD Slot
CANBus
1 x CANBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Single 5V +/-5% DC
Connector
DualLite: DC jack
Quad: Terminal block(2 poles)
Consumption
Typical: i.MX6:5V @ 0.460A (2.30Watt)
Max.: i.MX6:5V @ 0.963A (4.82Watt)
OS Support
OS Support
Yocto (1.8, Default Preloaded on eMMC)
Android (5.1.1)
Environment
Temperature
Operating: 0 to 60°C / -20 to 70°C Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH Storage: 5 to 95% RH
MTBF
491,355 hrs @ 25°C; 342,435 hrs @ 45°C ; 235,039 hrs @ 60°C
Mechanism
Dimensions
2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm Top Side: 16.15mm, Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 FS051 board
1 1 terminal block for RS485 342-361021-000
1 Heat spreader (Height: 11mm) A71-808303-000G
Note: Please choose "FS051 product page > Download button" to download the Driver.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    FS051-BB-18DL
    Part Number :
    770-FS0512-300G
    Description :
    Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, eMMC 8GB, 1 LAN, 3 COM, 5 USB, 5V DC in DC jack, 0 to 60°C
  • Model Name :
    FS051-BB-28QD
    Part Number :
    770-FS0512-200G
    Description :
    Fanless, i.MX6 Quad Lite 1.0GHz, 2GB DDR3L SDRAM, eMMC 8GB, 1 LAN, 3 COM, 5 USB, 5V DC in Terminal block, 0 to 60°C
  • Model Name :
    FS051-EB-18DL
    Part Number :
    770-FS0512-100G
    Description :
    Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, eMMC 8GB, 1 LAN, 3 COM, 5 USB, 5V DC in DC jack, -20 to 70°C
  • Model Name :
    FS051-EB-28QD
    Part Number :
    770-FS0512-000G
    Description :
    Fanless, i.MX6 Quad Lite 1.0GHz, 2GB DDR3L SDRAM, eMMC 8GB, 1 LAN, 3 COM, 5 USB, 5V DC in Terminal block, -20 to 70°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM port cable
    Part Number :
    A81-015020-001G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm, 2x USB ports
  • Item Name :
    Power cable for SATA and LCD backlight
    Part Number :
    A81-020016-018G
    Description :
    Length: 155mm
  • Item Name :
    Heat sink
    Part Number :
    A71-008105-000G
    Description :
    Height: 16.8mm
  • Item Name :
    Power adapter
    Part Number :
    671-103002-000G
    Description :
    30W, 5V

*

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
