DT122｜Industrial Computers｜DFI

DT122
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Performance Compact PC DT122
  • Desktop Chassis for Mini-ITX
  • Designed to accommodate any Mini-ITX board
  • Supports one expansion slot
  • Up to 2 2.5" or 1 3.5" SATA drive bay
  • 1 optical drive bay (optional)

Status : Launched QUOTE NOW

+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

DT122 Related Tags

#PCIe x16#RoHS Certification#CE Certification#FCC Certification

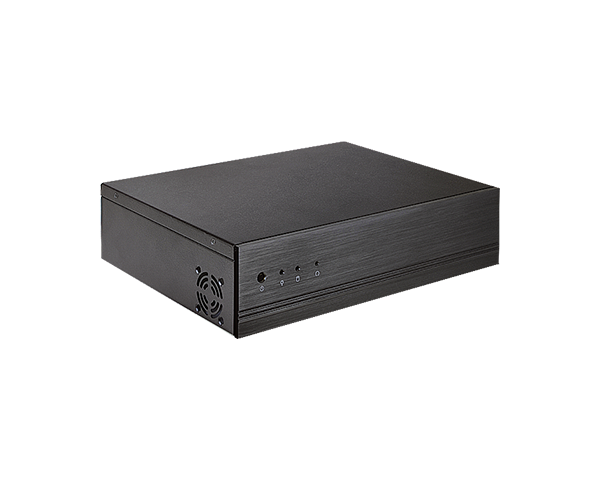

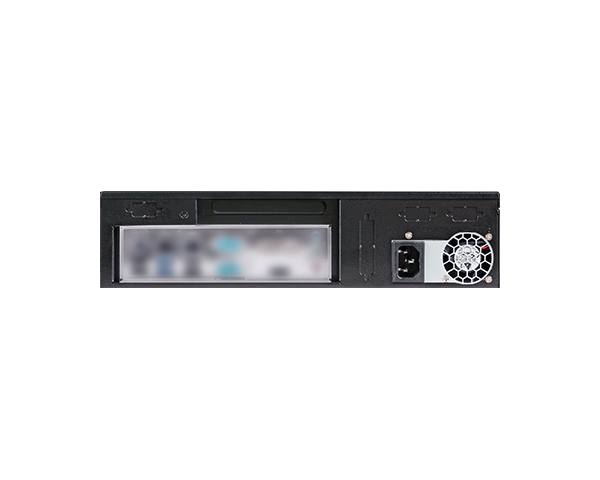

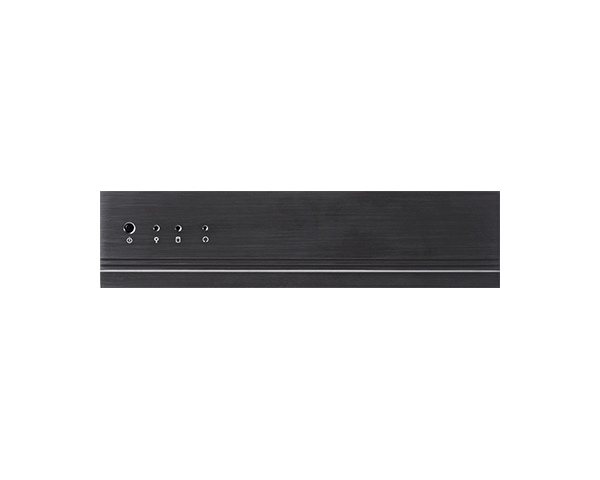

DT122 Desktop Chassis
DT122 Desktop Chassis

Related Products:

Select All - Clear
Storage
External/Internal
Up to 2 x 2.5" or 1 x 3.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x Expansion Slot (1 PCIe x16 or 1 PCI slot)
LED
Indicators
1 x Power LED
1 x HDD LED
I/O
Rear
1 x DB-9 cutout
1 x DB-9/DB-15 cutout
1 x DB-25 cutout
Buttons
1 x Power Button
1 x Reset Button
Cooling
Fan
1 x System Fan
Power
Supply
Flex ATX
Environment
Storage Temperature
-20 to 60°C
Relative Humidity
90% RH at 45°C, 1 week
Mechanism
Construction
Front Panel: Aluminum
Rear Chassis: Sheet Metal
Mounting
Wall Mount: Type A, Type B
Dimensions (W x H x D)
300mm x 75mm x 217mm (W x H x D)
Standards and Certifications
Shock
Operating: 3G peak acceleration (11 msec. duration)
Non-operating: 10G peak acceleration (11 msec. duration)
IEC 68-2-27 compliant
Vibration
Operating: 1G, 5~500Hz
Non-operating: 1.5G, 5~25Hz
IEC 68-2-64 compliant
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 DT122-BE Chassis
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wall Mount     Part Number :
     761-DT1220-100G
    761-DT1220-000G     Description :
    DT122 Type A Wall Mount Kit for Top Cover, RoHS
    DT122 Type B Wall Mount Kit for Front Cover, RoHS
