KS150-BT｜Intel®｜Industrial Panel PCs & Displays｜DFI

KS150-BT
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS150-BT
  • 15" 1024x768 Intel Atom® E3800 Touch Panel PC
  • 1x 2.5" SATA drive bay
  • IP65 Front Panel Protection
  • VESA/Wall/Panel Mount
  • Wide operating temperature: -10~60°C
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Low Power Consumption
Fanless Design
IP65 Front Panel Protection
DVI-I
Mini PCIe
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

KS150-BT Related Tags

#Intel#Mini PCIe#Fanless Design#IP65 Front Panel Protection#Windows#Linux#DVI-I#DDR3L#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification
KS150-BT 15" Light Industrial Touch Panel PC
KS150-BT 15" Light Industrial Touch Panel PC

Related Products:

Select All - Clear
System
Processor
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
BGA 1170 packaging technology
22nm process technology
Memory
Two 204-pin SODIMM up to 8GB (E3845)
Dual Channel DDR3L 1333MHz
One 204-pin SODIMM up to 4GB (E3825)
Single Channel DDR3L 1066MHz
BIOS
AMI SPI 64Mbit
Display and Touch Screen
Display
15" 1024x768 TFT LCD Panel with Capacitive/5-wire Resistive Touch Screen
Brightness
250 cd/m²
View Angle
160° / 140°
Backlight Lifetime
50,000 MTBF LED Backlight
Graphics
Controller
Intel® HD Graphics
Display
1 x DVI-I
DVI-I: resolution up to 1920x1080 @ 60Hz
Single Display
1 x DVI-I
Storage
External/Internal
1 x 2.5" SATA 2.0 Drive Bay
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/SATA)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
2 x Intel® I210 PCIe (10/100/1000Mbps)

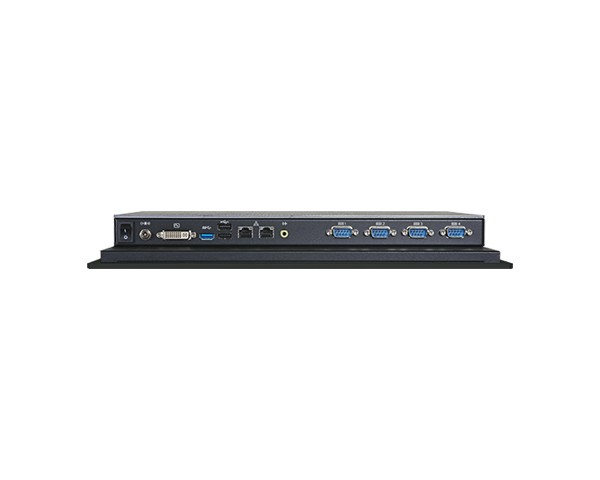

Bottom I/O
Ethernet
2 x GbE (RJ-45)
Serial
3 x RS-232/422/485 (RS232 and/or power) (DB-9)
1 x RS-232 (DB-9)
USB
1 x USB 3.0
2 x USB 2.0
Display
1 x DVI-I
Audio
1 x Line-out
Buttons
1 x Power Switch
Power
Type
12V DC
Connector
DC Jack
OS Support
OS Support
Windows 7
Windows 8
Linux (Project base upon request only, with 3 months lead time)
Environment
Operating Temperature
-10°C ~ 60°C (with SSD)
0°C ~ 45°C (with HDD)
Storage Temperature
-20°C ~ 70°C
Relative Humidity
85% RH at 60°C (with SSD)
85% RH at 45°C (with HDD)
Mechanism
Construction
Aluminum Front Bezel
Rear Panel: Aluminum and SGCC
IP Rating
IP65 Front Panel Protection
Mounting
Wall Mount (VESA 75x75 or 100x100)
Panel Mount (mounting clamp)
Dimensions (W x H x D)
373mm x 297mm x 46.10mm (W x H x D)
Weight
3.8 kg
Standards and Certifications
Shock
Operating: 3G Peak Acceleration
Non-operating: 5G Peak Acceleration
Vibration
Operating: 1G, 5~500Hz
Non-operating: 3G, 10~500Hz
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 KS150-BT Touch Panel PC
1 Poron foam
1 Chassis Panel Mount Bracket
1 Quick Installation Guide
Note: Please choose "KS150-BT product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS150-BT3845R     Part Number :
     750-KS1500-000G     Description :
    15" Panel PC, Intel Atom® E3845, 5-wire Resistive Touch Screen
  • Model Name :
    KS150-BT3825P     Part Number :
     750-KS1500-300G     Description :
    15" Panel PC, Intel Atom® E3825, Capacitive Touch Screen
  • Model Name :
    KS150-BT3825R     Part Number :
     750-KS1500-200G     Description :
    15" Panel PC, Intel Atom® E3825, 5-wire Resistive Touch Screen
  • Model Name :
    KS150-BT3845P     Part Number :
     750-KS1500-100G     Description :
    15" Panel PC, Intel Atom® E3845, Capacitive Touch Screen
Optional Items
  • Item Name Part Number Description
  • Item Name :
    4GB DDR3L     Part Number :
     785-RSOD34G-L     Description :
    SODIMM, DDR3L, 4GB, RoHS
  • Item Name :
    2GB DDR3L     Part Number :
     785-RSOD32G-L     Description :
    SODIMM, DDR3L, 2GB, RoHS
  • Item Name :
    500GB HDD     Part Number :
     785-H25500G     Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    320GB HDD     Part Number :
     785-H25320G     Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    1TB SSD     Part Number :
     785-S251TBG     Description :
    2.5" SATA SSD, 1TB MLC, RoHS
  • Item Name :
    512GB SSD     Part Number :
     785-S25512G     Description :
    2.5" SATA SSD, 512GB MLC, RoHS
  • Item Name :
    256GB SSD     Part Number :
     785-S25256G     Description :
    2.5" SATA SSD, 256GB MLC, RoHS
  • Item Name :
    128GB SSD     Part Number :
     785-S25128G     Description :
    2.5" SATA SSD, 128GB MLC, RoHS
  • Item Name :
    64GB SSD     Part Number :
     785-S25064G     Description :
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    32GB SSD     Part Number :
     785-S25032G     Description :
    2.5" SATA SSD, 32GB MLC, RoHS
  • Item Name :
    128GB mSATA     Part Number :
     785-MS128GMF     Description :
    mSATA Card, 128GB MLC, RoHS
  • Item Name :
    64GB mSATA     Part Number :
     785-MS64GMF     Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA     Part Number :
     785-MS32GMF     Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA     Part Number :
     785-MS16GMF     Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA     Part Number :
     785-MS08GMF     Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    4GB mSATA     Part Number :
     785-MS04GMF     Description :
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G     Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    60W Power Adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V/5A, Level 6, RoHS
  • Item Name :
    Panel Mount     Part Number :
     785-150PMK     Description :
    15" Panel PC Panel Mount Kit, RoHS
  • Item Name :
    Wall Mount     Part Number :
     785-PPCWMK     Description :
    Standard Panel PC Wall Mount kit, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
