COM333-I
Home System-On-Modules Carrier Board COM333-I
  • COM Express® R3.0, Pin-out Type 7
  • Supports Compact and Basic modules
  • Multiple expansion: 8 PCIe x4 or 4 PCIe x8, 2 SATA 3.0
  • Rich I/O: 2 GbE, 4 10Gbase-KR, 4 USB 3.0/2.0, 1 COM
  • microATX form factor

Status : Launched QUOTE NOW

1G Ethernet
PCIe x16
Multiple Expansion
10G Ethernet
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

COM333-I Related Tags

#1G Ethernet#VGA#Multiple Expansion#10G Ethernet#DDR4
COM Express Type 7, COM333-I
COM Express Type 7, COM333-I
Expansion
Interface
B1: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B2: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B3: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B4: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
Rear I/O
Ethernet

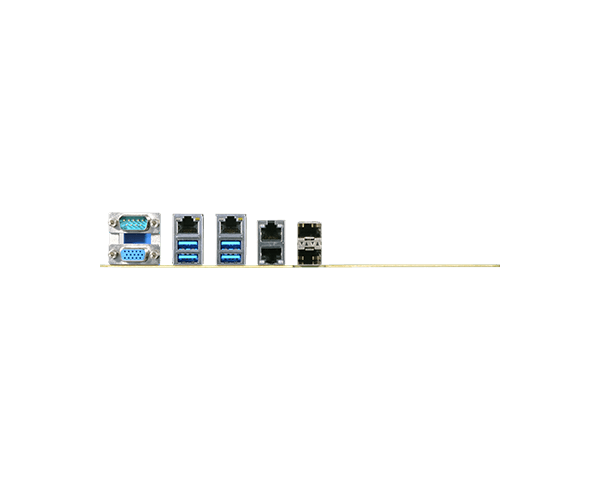

4 x 10GbE LAN (2 x SFP+, 2 x RJ-45) by 10GBASE-KR interface
2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
Serial
1 x RS-232 (DB-9) (supports by BMC which default is debug port and may switch to normal RS-232)
USB
4 x USB 3.0/2.0
Internal I/O
Serial
2 x Serial Interface Connectors (TX/RX) (2.0mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO (4 input, 4 output)
1 x SDIO (conditionally available)
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
Power
Connector
4-pin ATX 12V power 24-pin ATX power
Battery
CR2032 Coin Cell
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
246,013 hrs @ 25°C; 121,445 hrs @ 45°C; 68,565 hrs @ 60°C
46,970 hrs @ 70°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
microATX Form Factor 244mm (9.6") x 244mm (9.6")
Compliance
PICMG COM Express® R3.0, Type 7 Basic, Compact Modules
Packing List
Packing List
1 COM333-I board
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
Standoff (M2.5*12) (for compact size module): A33-525019-A20G
BMC
Features
1. IPMI 2.0
2. Web Browser Support
3. Web Interface
4. iKVM (keyboard, video, and mouse)
5. Virtual Media
6. 3rd Party Authentication
7. Firmware Update
8. SMASH/CLP
9. WS-MAN
10. Network Service
Processor
AST2500
SDRAM
DDR4-2400 1200MHz 8Gb memory down
Display
Through BMC to convert VGA signal
VGA: resolution up to 1920 x 1200 x 32bpp (share with SOC 16MB memory)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information

* More configurations are available for ODM project. Please contact your sales representative for more information.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    I/O shield
    Part Number :
    A49-COM333-000G
    Description :
  • Item Name :
    LPC EXT-RS232 module (4 x RS232 ports)
    Part Number :
    770-EXTRS1-000G
    Description :
  • Item Name :
    Serial ATA data cable (Length: 500mm)
    Part Number :
    332-553001-005G
    Description :
  • Item Name :
    LPC EXT-RS485 module (4 x RS485 ports)
    Part Number :
    770-EXTRS1-100G
    Description :

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
